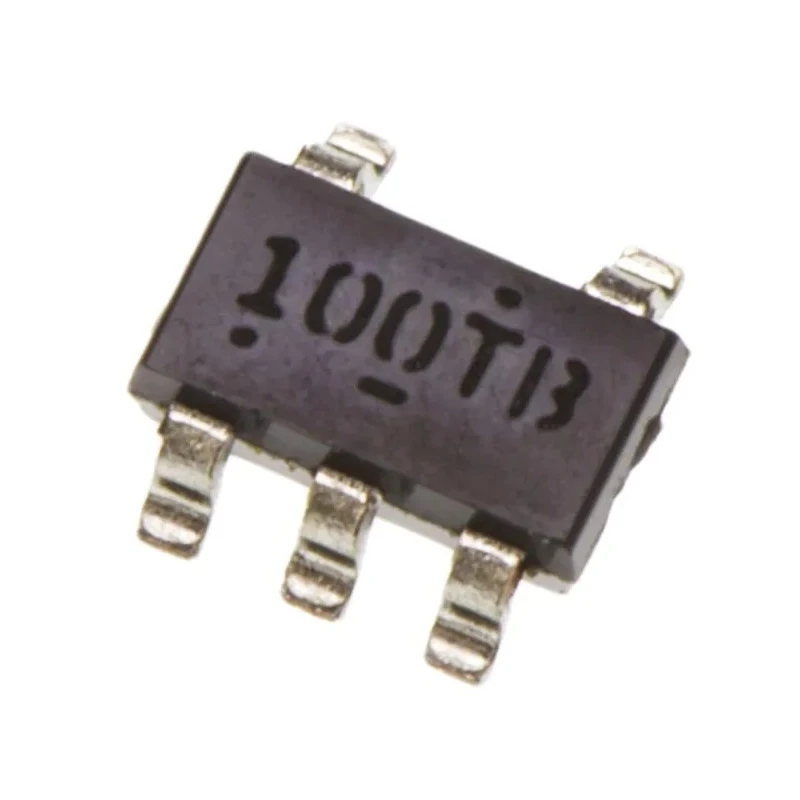

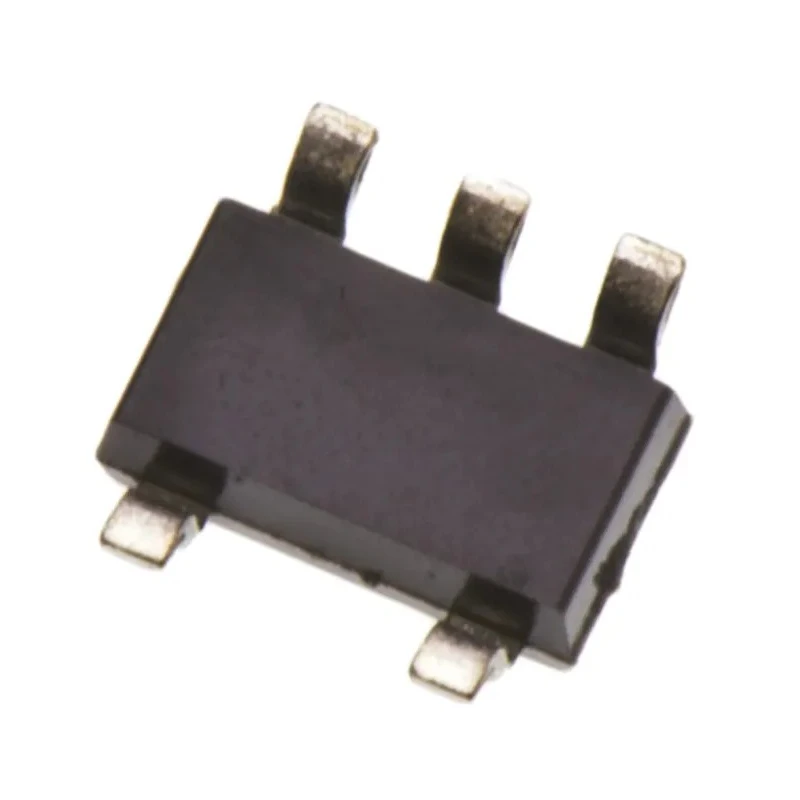

onsemi MOSFET Gate Driver 1 Driver 3A Output Current 5-Pin SOT-23 Package FAN3100TSX

onsemi FAN3100TSX is a high-performance MOSFET Gate Driver designed to provide robust low-side drive capabilities with a 3A output current. It supports a supply voltage of 18V and is housed within a compact 5-pin SOT-23 surface mount package, measuring 3mm in length, 1.7mm in width, and 1.3mm in height. This device is engineered for reliable performance over a wide operating temperature range from -40°C to 125°C, suitable for demanding industrial and electronic circuit applications.

The driver delivers fast switching with a 13ns rise time and 9ns fall time, enabling efficient control of MOSFETs in power management and signal amplification scenarios. It incorporates a single driver output and is optimized for low-side MOSFET configurations without automotive certification requirements. Its compact form factor and surface mount design facilitate easy PCB integration in power supply units, motor controls, and other semiconductor-based circuits.

This MOSFET Gate Driver is ideal for industrial electronics, electronic components manufacturing, power management ICs applications, and general-purpose semiconductor circuits requiring precise and efficient MOSFET switching control.

Designed for low-side MOSFET driving applications. Features a fast rise time of 13ns and fall time of 9ns. Operates within a temperature range of -40°C to 125°C. Supports a supply voltage of 18V. Compact dimensions of 3mm length, 1.7mm width, and 1.3mm height.

Surface mount package suitable for high-efficiency power circuits. No automotive certification, suited for general electronics applications. Ensures reliable MOSFET gate drive performance in industrial electronics. Explore more products under the Power Management ICs category at EnvMart for diverse semiconductor solutions.
