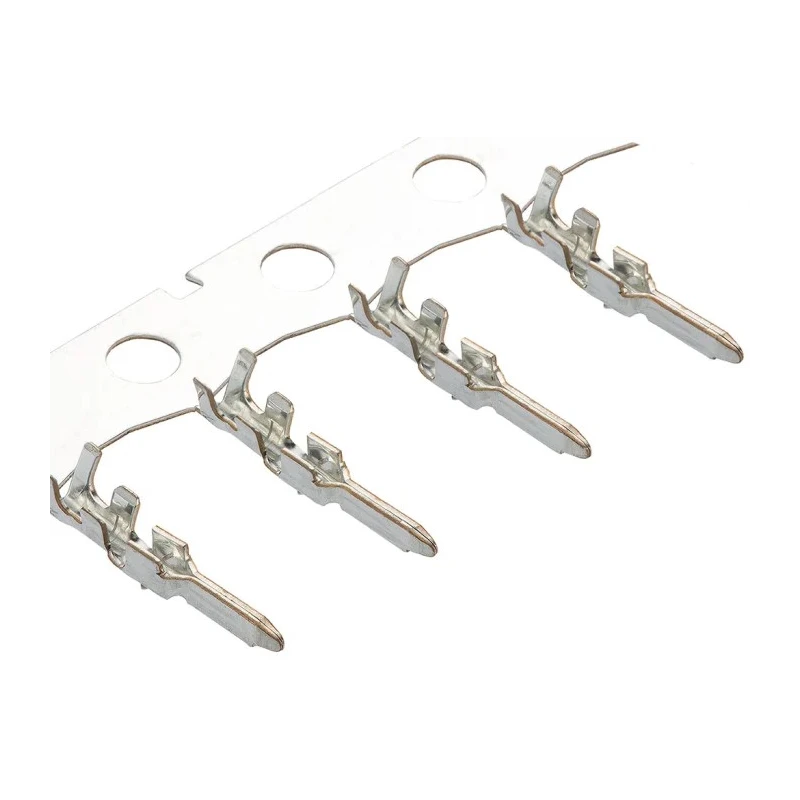

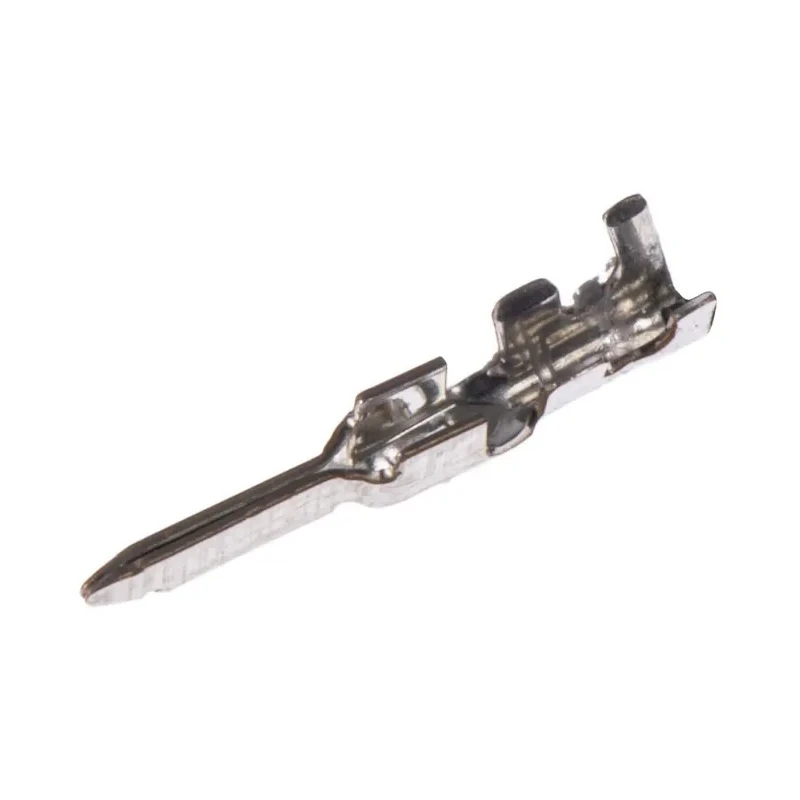

Molex Male Crimp Terminal for PicoBlade Connector Housing, 1A Current, 28 AWG Min / 26 AWG Max, Phosphor Bronze 50125-8000

Name: Molex Male Crimp Terminal for PicoBlade Connector Housing, 1A Current, 28 AWG Min / 26 AWG Max, Phosphor Bronze 50125-8000
Brand: Molex
SKU: 207283
Price: 0.06 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	Japan
Brand	Molex
Current	1A
Gender	Male
Contact Material	Phosphor Bronze
Series	50125
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	PicoBlade Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.1mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	26AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze with tin plating for excellent conductivity and corrosion resistance.
Compatible with PicoBlade connector housings ensuring secure electrical connections.
Supports a maximum current rating of 1 ampere for reliable signal transmission.
Operates within a temperature range of -40°C to 105°C for robust performance in varied environments.
Features a low maximum contact resistance of 20 milliohms for efficient conductivity.
Termination type is crimp, allowing for secure wire connections using crimping or compression methods.
Compact 1.25 mm pitch suitable for small-scale electronic assemblies.
Manufactured in Japan ensuring high-quality standards and reliability.

Product Description

Molex 50125-8000 Male Crimp Terminal is engineered for use with PicoBlade connector housings, supporting wire sizes from 28 AWG minimum to 26 AWG maximum and rated for a maximum current of 1 ampere.

The terminal is constructed with phosphor bronze contacts plated with tin to enhance conductivity while providing corrosion resistance for long-lasting performance. It features a compact 1.25 mm pitch ideal for precise electronic applications where space savings are critical.

This crimp terminal supports crimp or compression termination techniques, ensuring a secure and reliable connection with the wires. Its operating temperature range spans from -40°C up to 105°C, making it suitable for use in harsh industrial, automation, and electrical signaling environments.

The maximum contact resistance is 20 milliohms, which ensures minimal power loss and stable signal integrity. Designed for high-density applications, this item complies with RoHS and REACH regulations, emphasizing safety and environmental compliance.

Applications include industrial automation signal transmission, compact electronic device connectors, electrical systems requiring reliable pin connections, and mechanical assemblies demanding durable terminal contacts.

Phosphor bronze construction with tin plating for corrosion resistance and conductivity. Compatible with PicoBlade connector housings for versatile electronic connections. Rated for 1A current to support signal transmission and low power circuits.

Works within a wide temperature range from -40°C to 105°C for durability in harsh conditions. Low maximum contact resistance of 20 mΩ ensures efficient electrical contact. Crimp termination method supports flexible installation procedures.

Compact terminal pitch of 1.25 mm suits miniature electronics design. Manufactured in Japan, meeting stringent quality standards.

This Molex 50125 Series Male Crimp Terminal is a dependable choice for engineers, technicians, and manufacturers needing precise, compact, and high-quality Crimp Contacts for their PicoBlade connector systems. Explore more connectors and electronic components within EnvMart’s comprehensive catalog to fit your industrial or commercial project requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum current rating of this crimp terminal is 1 ampere, ensuring reliable signal transmission.

This terminal supports wire sizes from 28 AWG minimum to 26 AWG maximum, accommodating a range of applications.

It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.

The contact material is phosphor bronze, which is plated with tin to enhance conductivity and corrosion resistance.

The terminal uses a crimp termination method, allowing for secure wire connections using crimping or compression techniques.

The maximum contact resistance is 20 milliohms, ensuring efficient electrical contact and minimal power loss.

Yes, it complies with RoHS and REACH regulations, emphasizing safety and environmental compliance.

It features a compact pitch size of 1.25 mm, suitable for small-scale electronic assemblies.

This terminal is manufactured in Japan, ensuring adherence to high-quality standards.

It is suitable for applications in industrial automation signal transmission, compact electronic device connectors, and mechanical assemblies requiring durable contacts.

The gender of this crimp terminal is male, designed for use with PicoBlade connector housings.

This crimp terminal belongs to the Molex 50125 series, which is specifically designed for PicoBlade connectors.
