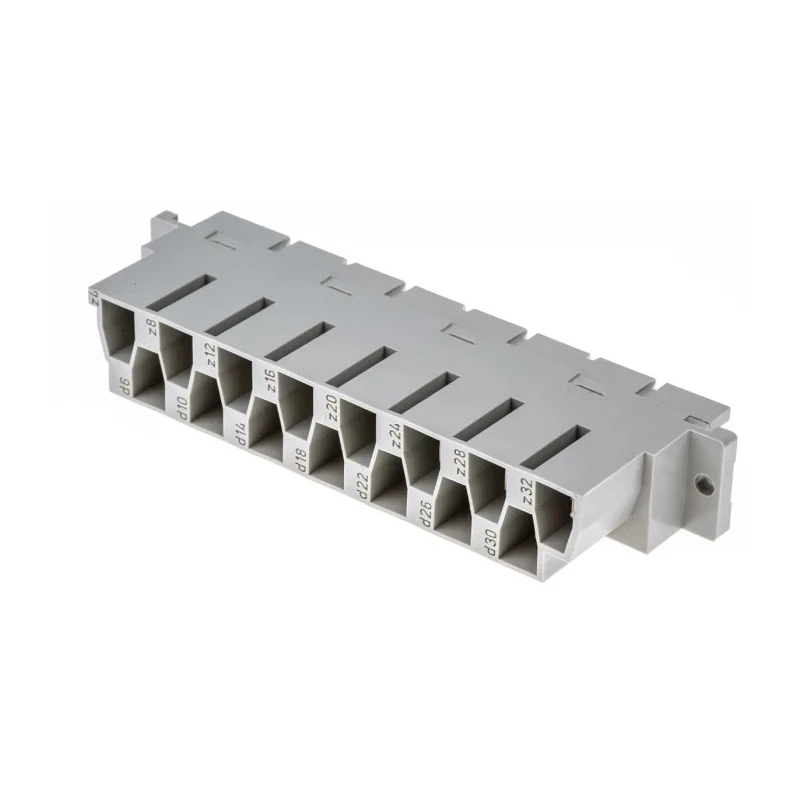

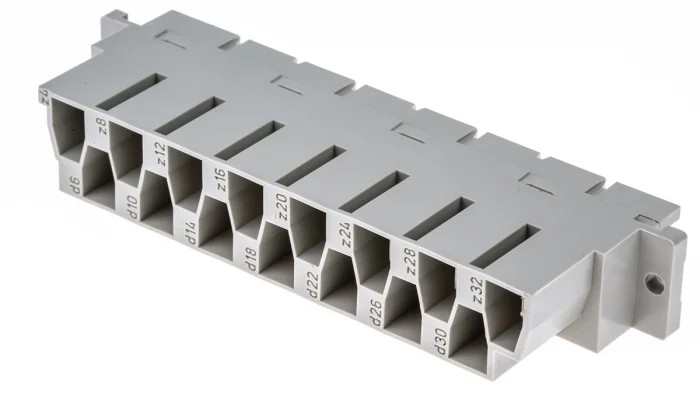

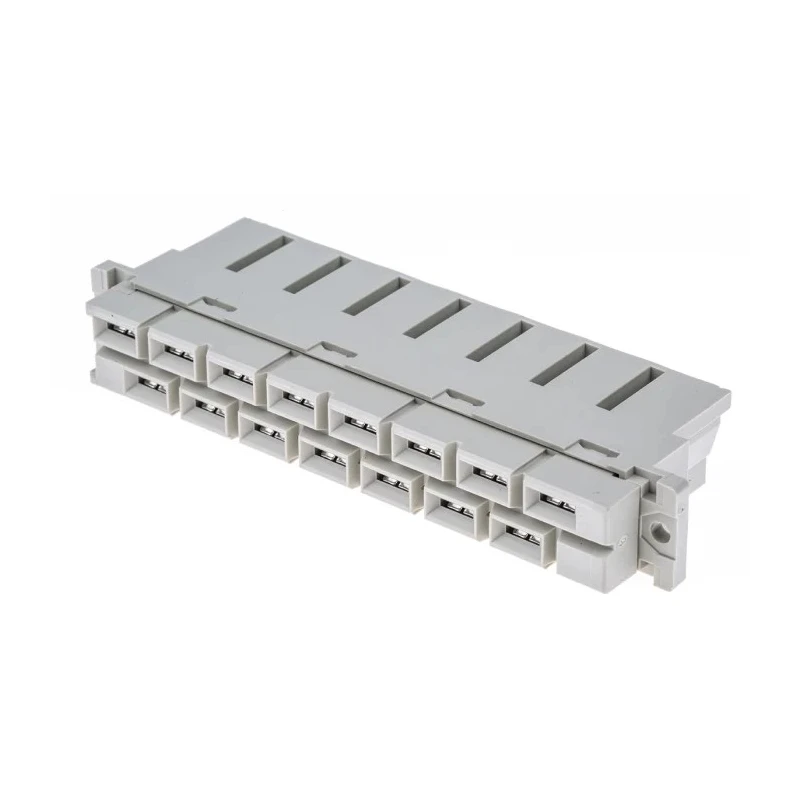

HARTING DIN 41612 15 Way 10.16 mm Pitch, Type H15, Faston Class C1, 2 Row Female Straight Connector 09062152811
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 15A |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Faston |
| Maximum Operating Temperature | 125°C |
| Sub Type | H15 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 10.16mm |
| Contact Plating | Silver |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 8mΩ |
| Row Loading | D/Z |
Key Features
- Provides 15 contact points across 2 rows for secure connections.
- Pitch size of 10.16 mm ensures standard spacing compatibility.
- Termination utilizes Faston male blades for ease of connection.
- Contact plating is silver to enhance conductivity and corrosion resistance.
- Connector's housing made of Polybutylene Terephthalate ensures mechanical strength and durability.
- Operates reliably from -55°C to a maximum of 125°C.
- Maximum contact resistance is 8 milliohms for efficient power transfer.
- Supports a current rating of 15 Amps suitable for demanding electrical uses.
Product Description
HARTING 09062152811 DIN 41612 15 Way 10.16 mm Pitch Type H15 Faston Class C1 2 Row Female Straight Connector is a high current, durable backplane connector designed to meet demanding industrial and railway transportation electrical system needs.
It features 15 female contacts arranged over 2 rows with a pitch of 10.16 mm to ensure compatibility with standard DIN 41612 interface requirements. The connector termination is via Faston type male blades sized 6.3 x 0.8 mm, facilitating fast and reliable wire attachment.
The contacts are made from copper alloy and plated with silver to optimize electrical conductivity while reducing corrosion. The connector housing is engineered from tough Polybutylene Terephthalate, providing mechanical strength and resilience under challenging environments.
This connector supports continuous operation across a wide temperature range from -55°C up to 125°C. Its maximum contact resistance of 8 milliohms and current rating of 15 amps make it highly suitable for power distribution and control card applications in industrial, railway, and power supply systems.
Applications include use in industrial machinery, railway transportation electronics, power supplies, and control panel assemblies. The straight female connector with D/Z row loading enhances installation flexibility in backplane and rack systems requiring robust and compact connector solutions.
Provides 15 contact points across 2 rows for secure connections. Pitch size of 10.16 mm ensures standard spacing compatibility. Termination utilizes Faston male blades for ease of connection. Contact plating is silver to enhance conductivity and corrosion resistance.
Connector's housing made of Polybutylene Terephthalate ensures mechanical strength and durability. Operates reliably from -55°C to a maximum of 125°C. Maximum contact resistance is 8 milliohms for efficient power transfer.
Supports a current rating of 15 Amps suitable for demanding electrical uses. This female straight connector uses copper alloy contacts for reliable conductivity. Meets DIN 41612 series standards for backplane & rack connectors.
For professional electronics components and connectors, explore the comprehensive range available at EnvMart for reliable industrial solutions.
Explore more products in our DIN 41612 Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector is 10.16 mm, ensuring compatibility with standard spacing requirements.
It supports a maximum current rating of 15 Amps, making it suitable for demanding electrical applications.
This connector operates reliably within a temperature range of -55°C to 125°C.
The housing is made from Polybutylene Terephthalate, while the contacts are made from copper alloy and plated with silver for enhanced conductivity.
This model features 15 female contacts arranged over 2 rows.
It utilizes Faston type male blades for ease of connection, specifically sized at 6.3 x 0.8 mm.
The maximum contact resistance is 8 milliohms, which ensures efficient power transfer.
The connector is designed with a straight orientation, facilitating installation in various applications.
It is suitable for use in industrial machinery, railway transportation electronics, power supplies, and control panel assemblies.
This connector features a D/Z row loading configuration, enhancing installation flexibility.
The country of origin for this connector is India.
