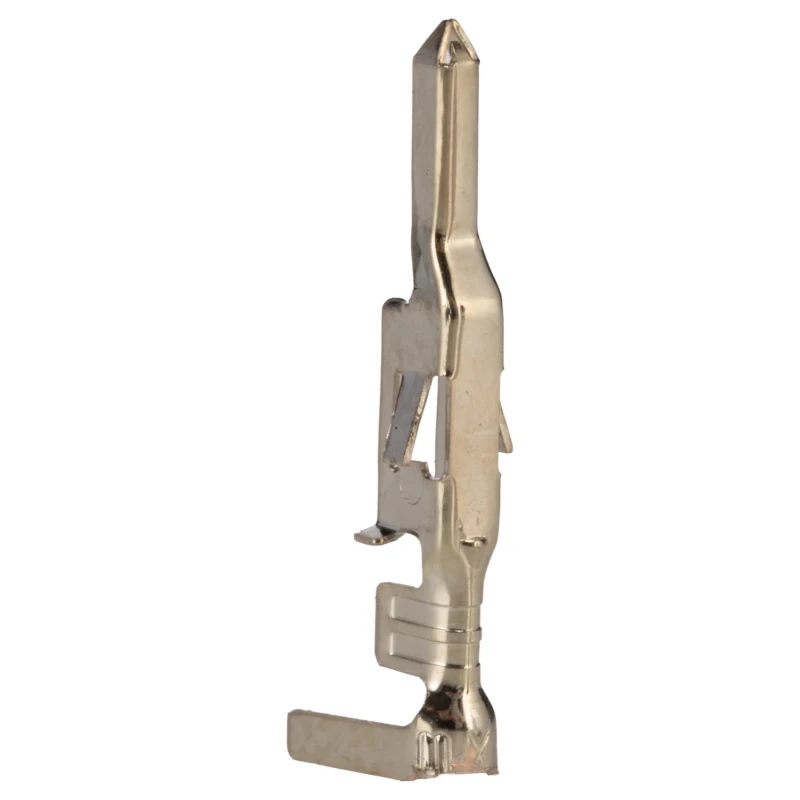

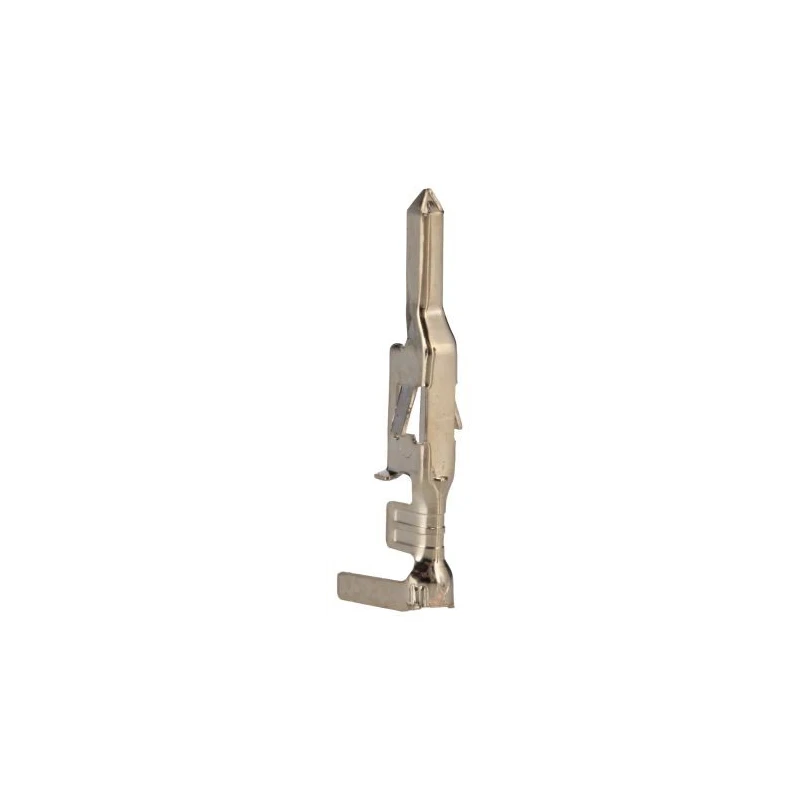

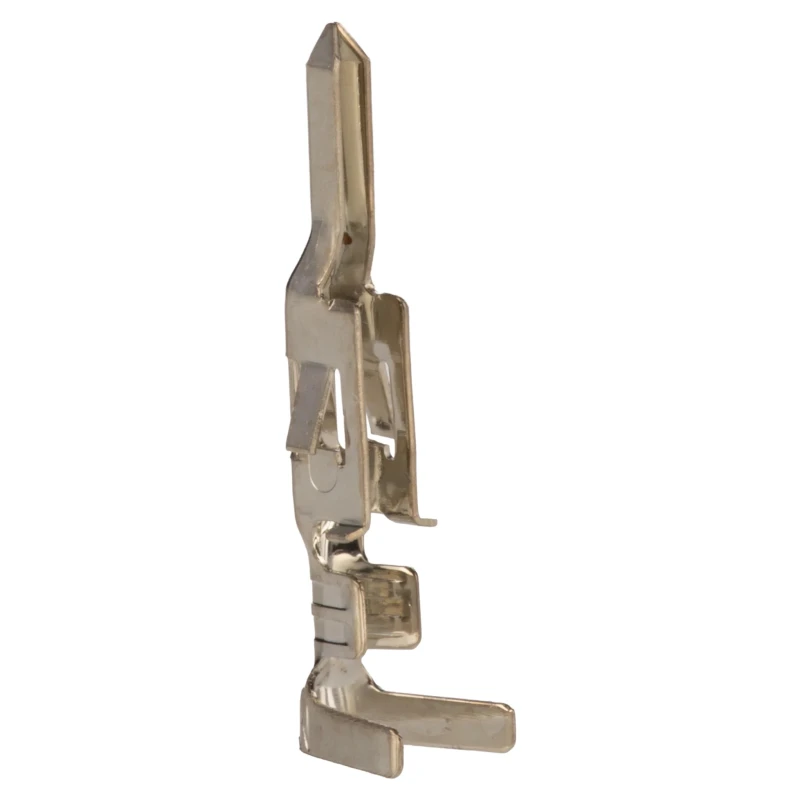

Molex 5558 Series Male Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Tin Plated Phosphor Bronze Contact 39-00-0126
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Mini-Fit TPA, BMI, and Jr connector housings.
- Supports wire sizes from 24 AWG minimum to 18 AWG maximum.
- Constructed with tin-plated phosphor bronze contacts.
- Rated for a maximum current of 9A and operating temperatures up to 105°C.
- Crimp termination for secure and reliable wire connection.
- Maximum contact resistance of 10 milliohms for efficient conductivity.
- Operating temperature range of -40°C to 105°C ensures versatile usage.
- Suitable for automotive, electronic, industrial, aerospace, and communication applications.
Product Description
Molex 39-00-0126 5558 Series Male Crimp Terminal offers reliable electrical connections with phosphor bronze contact material and tin plating. Designed primarily for use with Mini-Fit TPA, BMI, and Jr connector housings, this crimp terminal supports wire sizes ranging from 24 AWG to 18 AWG, accommodating 0.2 mm² to 0.8 mm² wire cross-section.
This terminal is rated at 9 amperes current capacity and can operate reliably within temperatures ranging from -40°C to 105°C. The crimp termination technique ensures secure and long-lasting wire connections, with a maximum contact resistance of just 10 milliohms.
Its construction with high-quality phosphor bronze enhances conductivity and durability, making it suitable for demanding industrial uses. It is widely used in automotive wiring harnesses, printed circuit board assemblies, industrial control systems, aerospace applications, and data communication equipment.
Compatible with Mini-Fit TPA, BMI, and Jr connector housings. Supports wire sizes from 24 AWG minimum to 18 AWG maximum. Constructed with tin-plated phosphor bronze contacts. Rated for a maximum current of 9A and operating temperatures up to 105°C.
Crimp termination for secure and reliable wire connection. Maximum contact resistance of 10 milliohms for efficient conductivity. Operating temperature range of -40°C to 105°C ensures versatile usage. Suitable for automotive, electronic, industrial, aerospace, and communication applications.
Explore more in the Crimp Contacts category for compatible connectors and terminals on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 9A.
It supports wire sizes ranging from 24 AWG minimum to 18 AWG maximum, accommodating wire cross-sections from 0.2 mm² to 0.8 mm².
The operating temperature range is from -40°C to 105°C, allowing for versatile usage in various environments.
It is constructed with tin-plated phosphor bronze contacts, enhancing conductivity and durability.
This crimp terminal is designed for use with Mini-Fit TPA, BMI, and Jr connector housings.
The maximum contact resistance is 10 milliohms, ensuring efficient conductivity.
It uses crimp termination for secure and reliable wire connections.
It is suitable for automotive, electronic, industrial, aerospace, and communication applications.
This terminal is male gendered, designed for specific connector compatibility.
The country of origin is the United States.
The tin plating on the contacts helps improve conductivity and protect against corrosion.
This terminal belongs to the 5558 series by Molex.
