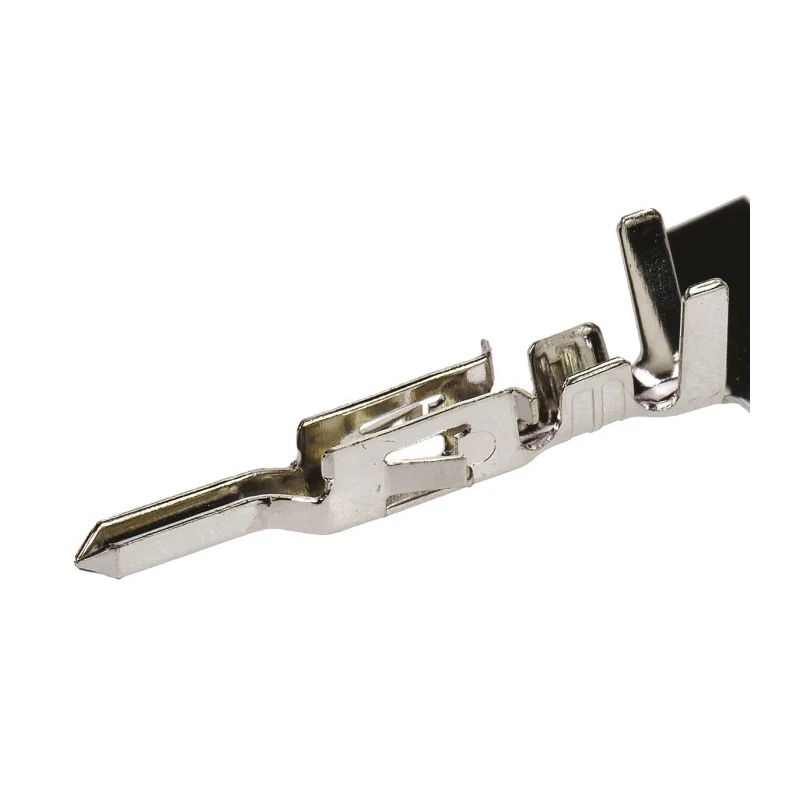

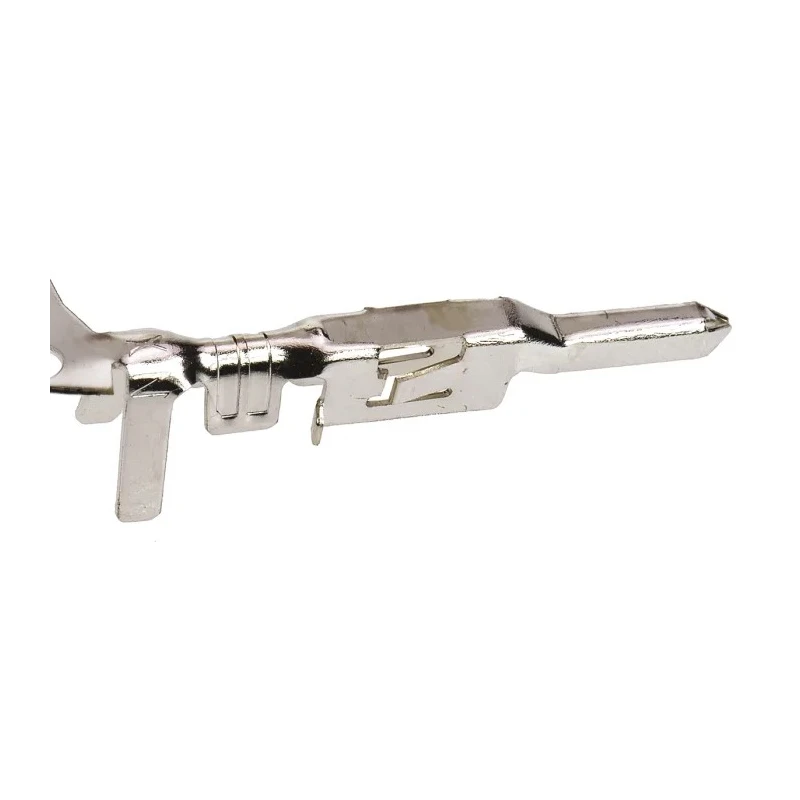

Molex 5558 Series Male Crimp Terminal 24 AWG Min, 18 AWG Max, 9A Current, Tin Plated Brass Contact 39-00-0120
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Designed for Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
- Tin plated brass contacts ensure excellent conductivity and corrosion resistance.
- Maximum operating temperature is 105°C with a wide operating range from -40°C.
- Features locking tangs for secure connection and reliable contact resistance of max 10mΩ.
- Suitable for automotive, industrial automation, and communications network applications.
- Compact male crimp terminal designed for high vibration resistance in harsh environments.
Product Description
Molex 39-00-0120 5558 Series Male Crimp Terminal is engineered for reliable electrical connections within Mini-Fit connector housings. This male crimp terminal supports wire sizes from 24 AWG (minimum) up to 18 AWG (maximum), carrying currents up to 9 amperes. It features tin-plated brass contacts with corrosion resistance and a maximum contact resistance of 10 milliohms, ensuring dependable conductivity in various industrial environments.
Operating reliably across a broad temperature range from -40°C to 105°C, the terminal is suited for automotive components, industrial automation, and communication networks. Locking tangs provide a secure and vibration-resistant fit in the connector housings, preventing accidental disconnections even under heavy vibrations common in industrial and automotive applications.
The maximum voltage rating of 600 V AC makes it appropriate for demanding electrical circuits and power electronics. Its robust brass contact base combined with specialized plating guarantees longevity and stable electrical performance.
Compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings. Multi-contact point design provides increased current carrying capacity. Durable locking tangs secure the terminal firmly within housings. Tin plating enhances corrosion resistance and conductivity.
Wide operating temperature range supports diverse industrial conditions. Compact design facilitates integration into circuit board assemblies. Ideal for automotive, industrial automation, communications, and consumer electronics applications.
This Molex series ensures reliable electrical performance in heavy-duty environments, delivering stable connections and long service life. Explore more products in the Crimp Contacts category at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this male crimp terminal is 9 amperes.
This terminal supports wire sizes from 24 AWG (minimum) to 18 AWG (maximum).
The crimp terminal features tin-plated brass contacts, which provide excellent conductivity and corrosion resistance.
The maximum operating temperature for this model is 105°C.
It is compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
The maximum contact resistance of this terminal is 10 milliohms.
The minimum operating temperature for this terminal is -40°C.
This crimp terminal is suitable for automotive, industrial automation, and communications network applications.
The voltage rating for this crimp terminal is 600 V AC.
This terminal features locking tangs that provide a secure fit in the connector housings, enhancing vibration resistance.
The tin plating on the contacts enhances corrosion resistance and improves conductivity.
This product is manufactured in the United States.
