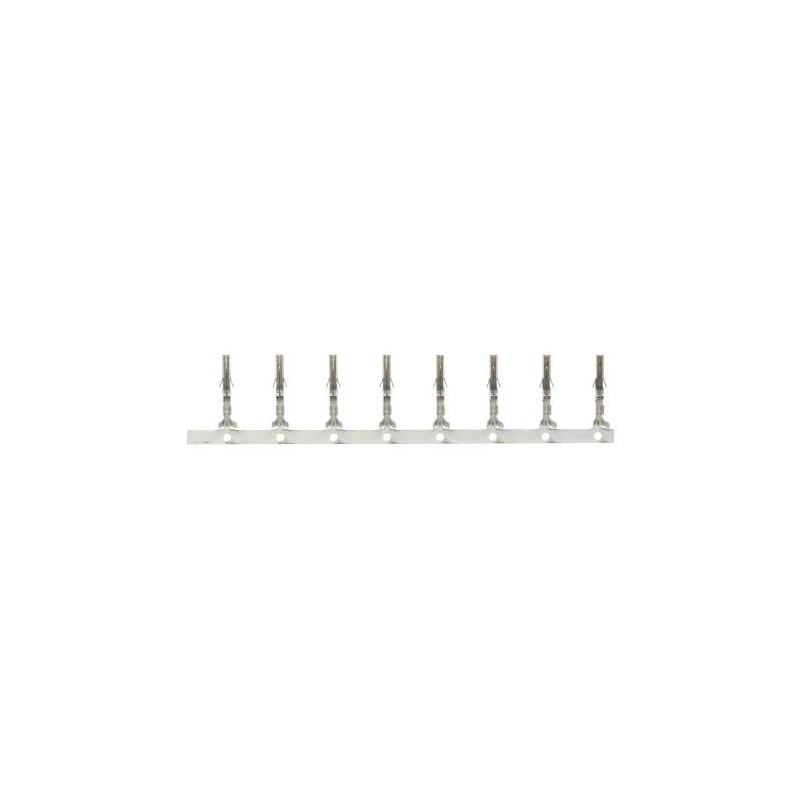

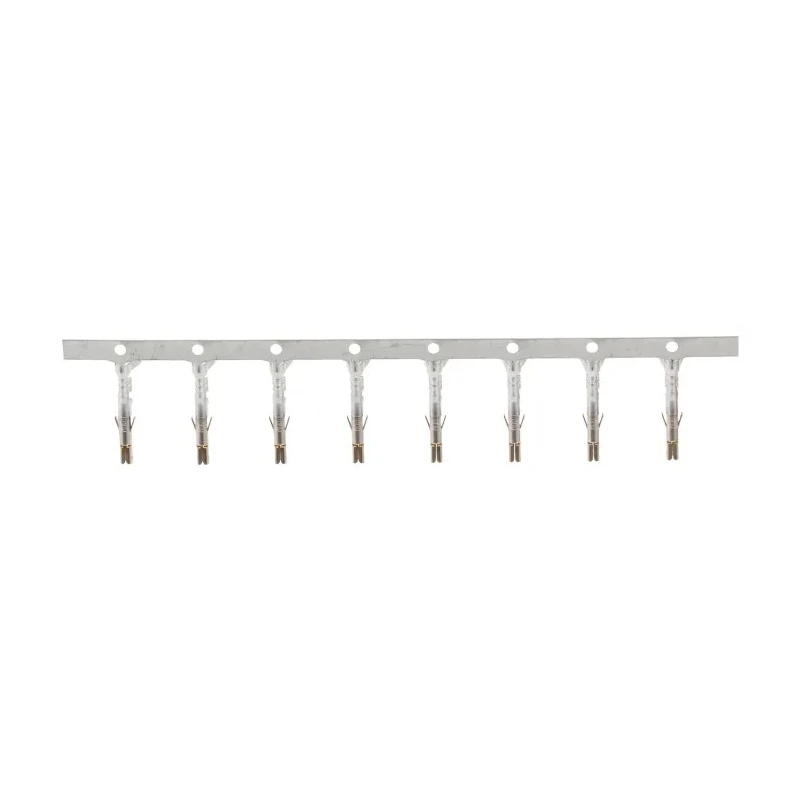

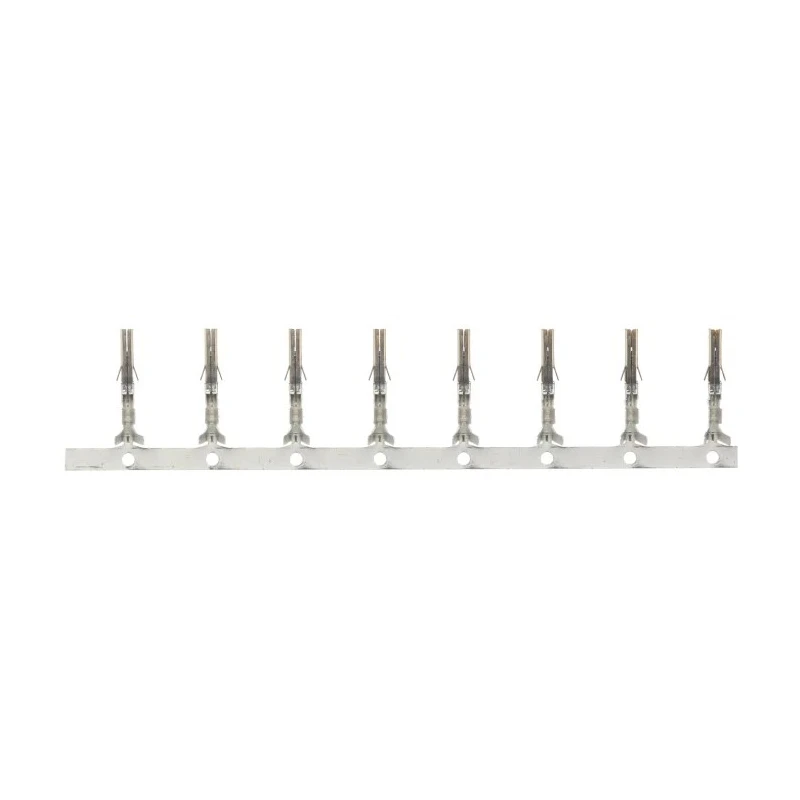

Molex Mini-Fit Jr Female Crimp Terminal 24 AWG Min, 18 AWG Max, Gold-Plated Brass Contacts, 9A Current, Model 39-00-0428

Name: Molex Mini-Fit Jr Female Crimp Terminal 24 AWG Min, 18 AWG Max, Gold-Plated Brass Contacts, 9A Current, Model 39-00-0428
Brand: Molex
SKU: 207256
Price: 0.51 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	9A
Gender	Female
Contact Material	Brass
Series	5556
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Compatible with Mini-Fit Jr connector housings for reliable wire connections.
Gold-plated contacts enhance electrical conductivity and corrosion resistance.
Constructed of durable brass for high mechanical and electrical performance.
Supports operating temperatures from -40°C to 105°C for varied environments.
Maximum contact resistance is only 10 milliohms ensuring minimal power loss.
Designed for precise crimp termination to maintain strong contact integrity.
Ideal for electronics, power distribution and automation wiring applications.
Suitable for wire-to-wire and wire-to-board electrical connections.

Product Description

Molex model 39-00-0428 is a female crimp terminal from the Mini-Fit 5556 series, designed for use with Mini-Fit Jr connector housings. It accommodates wire sizes ranging from 24 AWG (0.2mm²) up to 18 AWG (0.8mm²), making it versatile for various wiring requirements. This terminal features gold-plated brass contacts which provide excellent electrical conductivity and corrosion resistance, essential for stable and long-lasting electrical connections.

The terminal supports a maximum current of 9 amps and can operate reliably within a temperature range of -40°C to 105°C, which allows for use in demanding industrial and electronic environments. It ensures a maximum contact resistance of 10 milliohms, minimizing energy loss and improving efficiency.

Manufactured in the United States, this unit offers robust mechanical durability due to its brass construction and is designed for precise crimp termination. It is especially suitable for applications in power distribution systems, automation, electronics industries, and mechanical assembly tasks requiring reliable electrical interconnections.

The gold plating on the contact enhances corrosion resistance and conductivity, thereby guaranteeing optimal performance over the product’s service life. This female crimp terminal is essential for both wire-to-board and wire-to-wire connections where reliable, efficient electrical contact is critical.

Compatible with Mini-Fit Jr connector housings for secure connections. Gold-plated brass contacts for superior conductivity and corrosion resistance. Supports wire sizes 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²). Rated for 9A current and 600V voltage usage.

Operates in a temperature range of -40°C to 105°C meeting diverse environment needs. Provides a maximum contact resistance of 10 milliohms for efficient electrical performance. Ideal for use in power distribution, automation, electronics, and mechanical assembly.
