| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

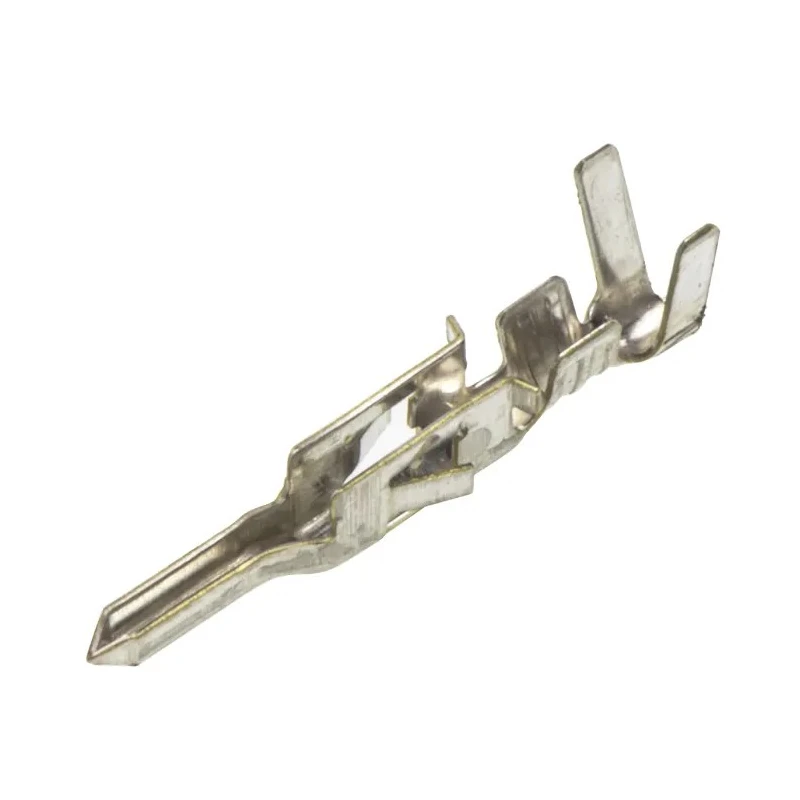

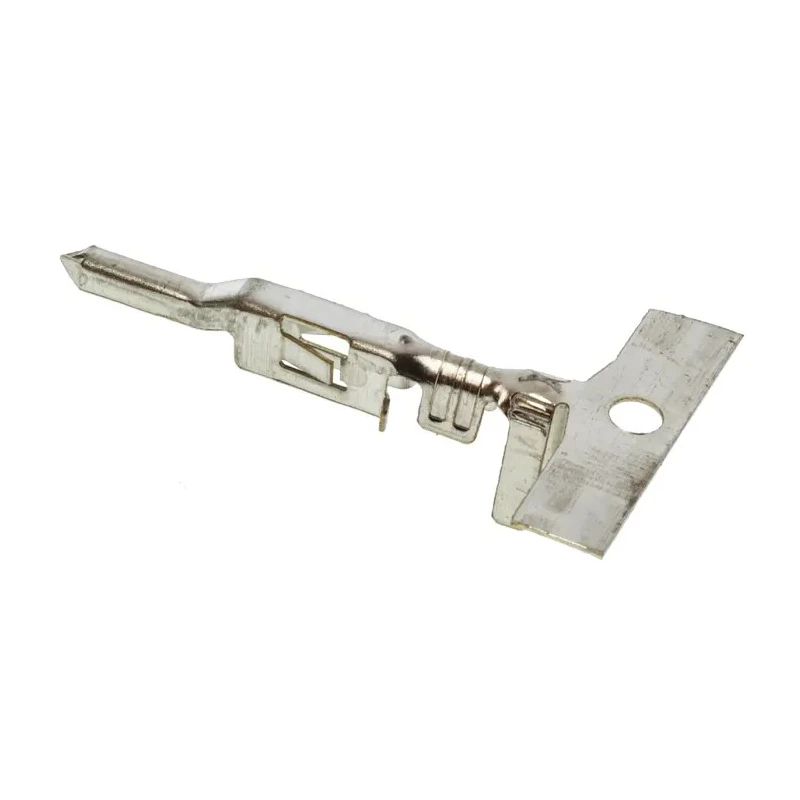

Molex 39-00-0040 Male Crimp Terminal is designed specifically for Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Rated for a maximum current of 9A, this terminal supports wire sizes from 24 AWG minimum to 18 AWG maximum, providing flexibility in electrical connection designs. The terminal is made from high-quality brass and features tin plating to enhance durability and resistance against corrosion.
The multiple points of contact design ensures a stable and reliable electrical connection, while locking tangs securely fix the terminal within the connector housing to prevent disconnection due to vibration or mechanical stress. This terminal supports operations at extreme temperatures from -40°C to 105°C, making it suitable for a wide range of industrial, automotive, medical, communication, and consumer electronics applications where robust and dependable connections are required.
With a maximum contact resistance of 10 milliohms, the terminal ensures efficient transmission of electrical current with minimal loss. Its crimp termination type allows for ease of installation and secure wire attachment. This product conforms to precise engineering standards although no specific certifications are cited. The country of origin is China.
Constructed with brass contact material for high durability. Contact plating with tin improves corrosion resistance. Designed with multiple contact points for reliable electrical flow. Locking tangs offer secure seating in housing.
Supports a broad temperature range from -40°C to 105°C. Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI housings. Ideal for automotive, industrial, industrial automation, medical, communications, and consumer electronics industries.
Max contact resistance of 10 milliohms ensures quality signal transmission.
This robust and reliable male crimp terminal by Molex is engineered to meet rigorous industrial demands and offers versatile use across diverse electronic assembly applications. Browse our catalog for more Molex connectors and crimp contact solutions.
Explore more products in our Crimp Contacts category.
