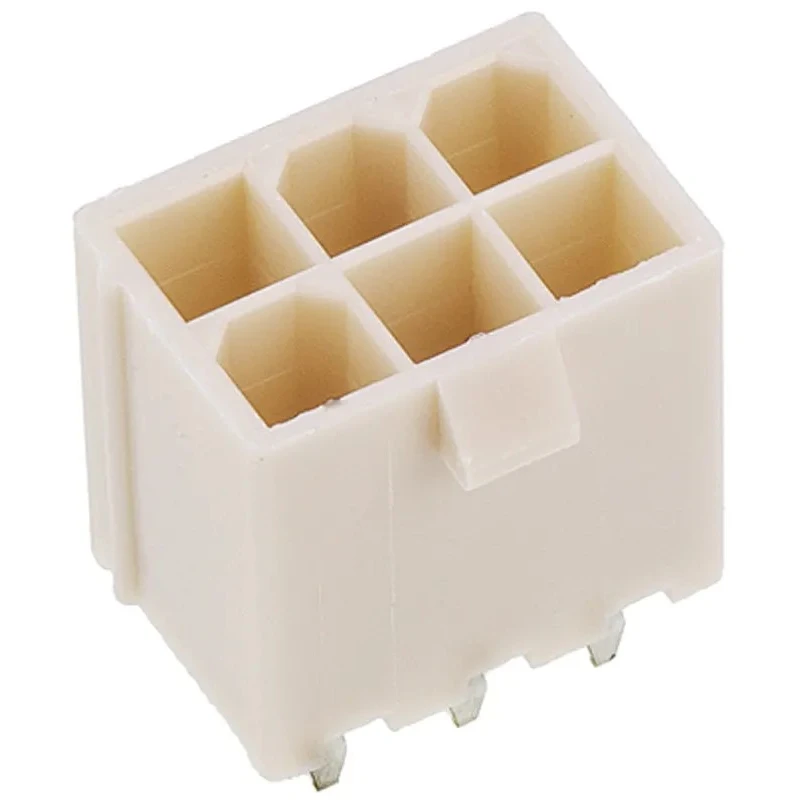

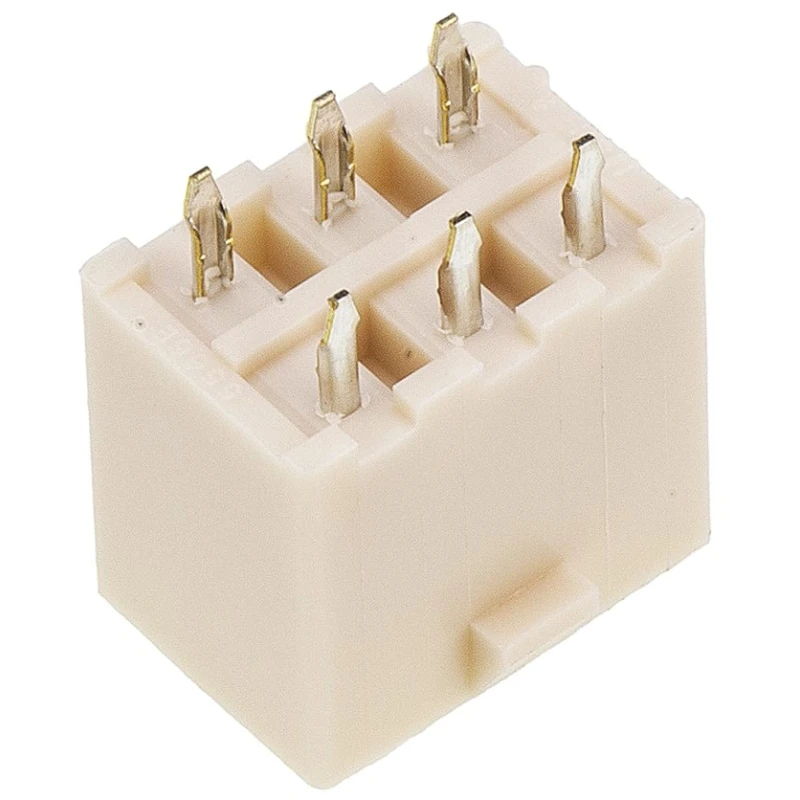

Molex Mini-Fit Jr Series Straight Through Hole PCB Header 6 Contacts 4.2 mm Pitch 2 Row Shrouded 39-28-8060
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 8A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Capable of handling up to 8A current per contact for high current applications.
- Constructed with nylon housing material for durability and electrical insulation.
- Features fully isolated terminals to protect against debris and arcing.
- Includes scoop-proof shrouded housings to prevent contact pin damage.
- Polarization and keying features prevent misalignment and mismating.
- Positive locking mechanism ensures secure mating connection and prevents accidental unmating.
- Contact material is brass with tin plating for excellent conductivity and corrosion resistance.
- Suitable for through-hole mounting with straight orientation.
Product Description
Molex 39-28-8060 Mini-Fit Jr Series PCB Header is engineered for reliable electrical and mechanical connections in demanding industrial and electronic applications. Featuring a 6-contact, 2-row, 4.2 mm pitch design with shrouded housing, this connector is built for wire-to-board interfacing where high current capacity is required.
The connector supports currents up to 8A per circuit, making it ideal for power delivery in consumer electronics, office equipment, industrial automation, and networking hardware such as routers and servers. The nylon housing offers robust insulation and mechanical protection, coupled with scoop-proof properties to protect contact pins from damage during assembly or under severe mating angles.
Each terminal is fully isolated, shielding against accidental shorts from debris or arcing. The connector is polarized and keyed to prevent mismating with receptacles, while a positive locking mechanism with an audible click confirms secure mating and prevents accidental disconnection due to vibration or shock.
Constructed with brass contacts plated with tin, the 39-28-8060 ensures excellent electrical performance and corrosion resistance. This through-hole mounted, straight orientation header operates reliably across a wide temperature range of -40°C to 105°C and can withstand voltages up to 600V.
Supports up to 8A current per contact. Nylon scoop-proof housing ensures durability. Fully isolated and shrouded terminals for safety and reliability. Polarized and keyed design prevents incorrect mating. Positive locking mechanism with audible click for secure connection.
Brass contacts with tin plating offer excellent conductivity. Through-hole mount type with straight orientation. Operating temperature range from -40°C to 105°C. 600V voltage rating suitable for multiple applications.
This Molex Mini-Fit Jr Series PCB Header connector is widely used within electronics manufacturing, industrial automation, server and networking equipment, as well as consumer electronics power interfaces. It is an essential component for ensuring safe, secure, and efficient electrical connections on printed circuit boards.
Explore EnvMart's extensive catalog of high-quality PCB connectors and electronic components to find compatible parts and accessories for your projects and industrial needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle up to 8A current per contact, making it suitable for high current applications.
The voltage rating for this connector is 600V, allowing it to be used in various electrical applications.
It supports through-hole mounting with a straight orientation, enabling easy integration onto printed circuit boards.
The pitch size of the contacts is 4.2 mm, which is standard for this series.
The housing is made of nylon for insulation and durability, while the contacts are brass with tin plating for conductivity and corrosion resistance.
This model features 6 contacts arranged in 2 rows, providing multiple connection points for electrical interfaces.
It includes polarization and keying features designed to prevent mismating with receptacles, ensuring correct connections.
The operating temperature range is from -40°C to 105°C, allowing it to function in a wide variety of environments.
Yes, it has fully isolated terminals to protect against debris and arcing, enhancing safety during operation.
The termination type is solder, which is commonly used for secure electrical connections on PCBs.
It is suitable for applications in consumer electronics, office equipment, industrial automation, and networking hardware such as routers and servers.
It features a positive locking mechanism that provides an audible click, ensuring a secure mating connection and preventing accidental unmating.
