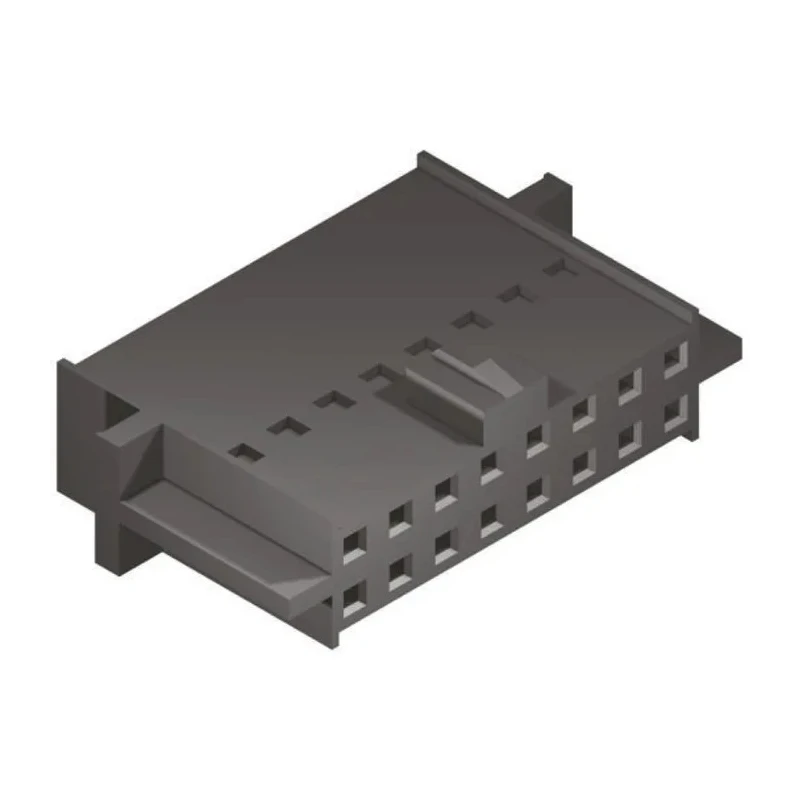

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 14 Way 2 Row Straight 90160-0114
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 22.55mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 14 |
| Connector Gender | Female |
Key Features
- Female connector housing compatible with C-Grid III connectors.
- 2.54 mm pitch spacing ensures precise connection alignment.
- Features 14 way contacts arranged in 2 rows for high-density wiring.
- Made from durable polyphenylene oxide housing material.
- Straight orientation ideal for cable mounting applications.
- Compatible with 90119 series terminals for reliable mating.
- Manufactured in Singapore ensuring high build quality.
- No certifications or standards approvals specified.
Product Description
Molex 90160-0114 is a female connector housing from the C-Grid III series featuring a 2.54 mm pitch and 14 way configuration arranged in 2 rows. This connector housing is specifically designed for cable mounting with a straight orientation that facilitates easy cable routing in industrial and electronic assembly applications.
The housing is constructed from robust polyphenylene oxide, providing good mechanical strength and electrical insulation. Measuring 22.55 mm in length, it fits compact spaces while maintaining reliable connection integrity. It mates with Molex 90119 series terminals as well as 5576 and 5578 headers, making it versatile in connector system assemblies.
This connector housing is ideal for use in electronics manufacturing, industrial automation, instrumentation, and communication equipment where dependable cable-to-board connections are critical. Its female contact design supports secure connections in demanding environments.
Female connector housing compatible with C-Grid III connectors. 2.54 mm pitch spacing ensures precise connection alignment. Features 14 way contacts arranged in 2 rows for high-density wiring. Made from durable polyphenylene oxide housing material.
Straight orientation ideal for cable mounting applications. Length of 22.55 mm supports compact assembly requirements. Compatible with 90119 series terminals for reliable mating. Manufactured in Singapore ensuring high build quality.
No certifications or standards approvals specified.
This product supports applications in electronics, electrical assemblies, industrial automation, instrumentation, and communication sectors. The high contact density and cable mounting style make it suitable for space-saving, robust electrical connections.
Browse more quality Connector Housings and accessories on EnvMart to meet all your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, ensuring precise connection alignment.
It features 14 contacts arranged in 2 rows for high-density wiring applications.
The length of this connector housing is 22.55 mm, making it suitable for compact assembly requirements.
The housing is constructed from polyphenylene oxide, which provides good mechanical strength and electrical insulation.
This model supports a straight orientation, which is ideal for cable mounting applications.
It is compatible with Molex 90119 series terminals, as well as 5576 and 5578 headers.
This connector housing is suitable for use in electronics manufacturing, industrial automation, instrumentation, and communication equipment.
The connector gender of this housing is female, designed for secure connections in demanding environments.
It is manufactured in Singapore, ensuring a high build quality.
The mounting type for this connector housing is cable, facilitating easy installation in various applications.
The 14 way contact arrangement in 2 rows allows for high-density wiring, making it efficient for space-constrained applications.
No certifications or standards approvals are specified for this connector housing.
