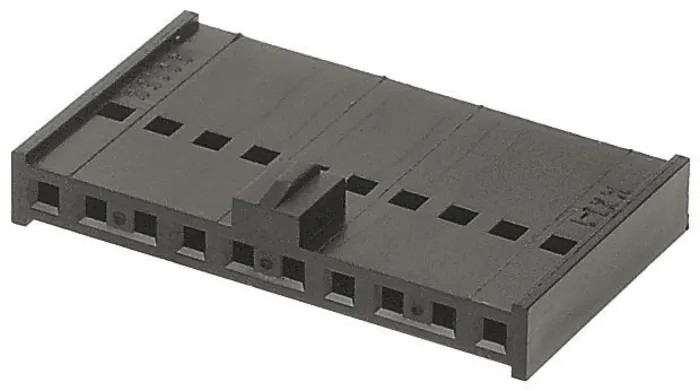

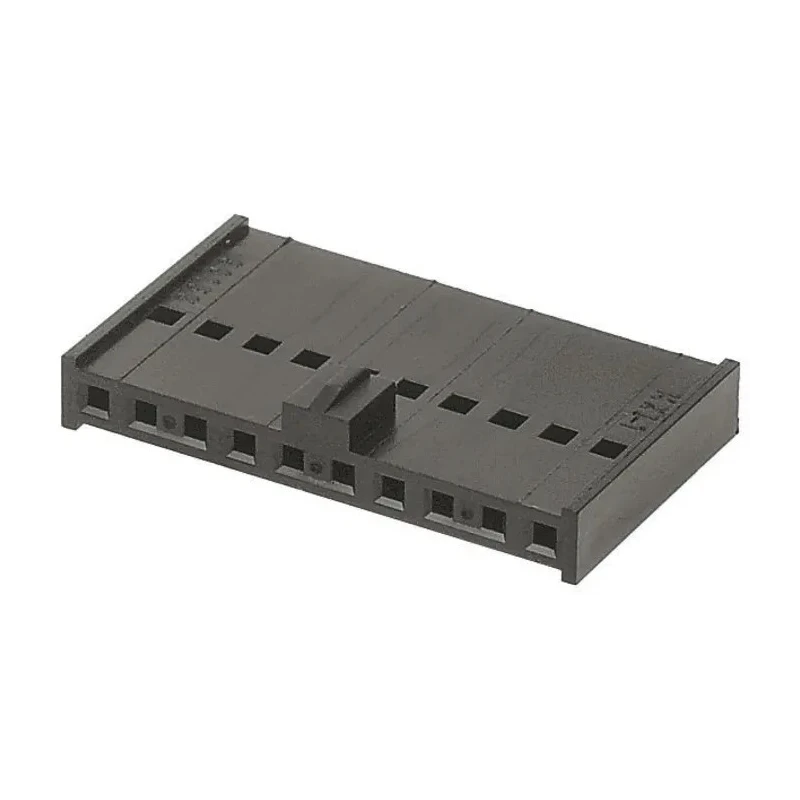

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 18 Way 1 Row Straight 90156-0158
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 46.78mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 18 |
| Connector Gender | Female |
Key Features
- Features an 18-contact capacity in a single-row configuration.
- Precision 2.54 mm pitch for reliable electrical connections.
- Constructed from durable polyphenylene oxide material for insulation and strength.
- Designed with a straight orientation for ease of cable mounting.
- Compatible with the Molex C-Grid III connector series providing modular interconnection options.
- Uniform locking system ensures secure contact retention during operation.
- Black color housing with high resistance to wear and environmental factors.
- Suitable for a broad range of commercial and consumer electronic applications.
Product Description
Molex 90156-0158 C-Grid III female connector housing features an 18-way, single-row straight configuration with a precision pitch of 2.54 mm. Constructed from polyphenylene oxide, this connector housing offers excellent durability and insulation for various electronic interconnection needs.
This housing is designed for cable mounting and is fully compatible with the Molex C-Grid III connector system, allowing flexible and modular connectivity solutions in electronic equipment. The uniform locking system across all contacts ensures secure and reliable connections, suitable for industrial, commercial, and consumer electronics sectors.
The compact dimensions, including a length of 46.78 mm and width of 5.35 mm, make it ideal for space-constrained PCB applications. The black housing color provides enhanced resistance against wear and environmental factors.
Typical uses include PCB connectors for electronic components, power and signal transmissions, and as part of modular interconnection packaging systems within electronics manufacturing, automation, and control gear industries.
18-contact capacity in a single-row straight design. 2.54 mm pitch supports precise and stable connections. Made from high-quality polyphenylene oxide for durability. Uniform locking mechanism for enhanced contact retention.
Compatible with Molex C-Grid III interconnection system. Suitable for commercial, industrial, and consumer electronics. Compact dimensions optimize PCB space usage. Robust black housing color offers environmental resistance.
Explore more related electronic Connector Housings and components on EnvMart to find the perfect fit for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, which supports precise and stable electrical connections.
It supports 18 contacts in a single-row configuration, making it suitable for various electronic interconnection needs.
The housing is constructed from polyphenylene oxide, providing excellent durability and insulation.
The dimensions of the housing are 46.78 mm in length and 5.35 mm in width, making it compact for PCB applications.
Yes, it is fully compatible with the Molex C-Grid III connector system, allowing for flexible and modular connectivity solutions.
The orientation of this model is straight, designed for ease of cable mounting.
It uses cable mounting, making it suitable for various electronic applications.
It features a uniform locking system that ensures secure contact retention during operation.
The country of origin for this connector housing is India.
It is suitable for a broad range of commercial, industrial, and consumer electronic applications, including PCB connectors for power and signal transmissions.
This model has 1 row in its configuration, which contributes to its compact design.
The connector gender of this housing is female, designed for specific interconnection needs.
