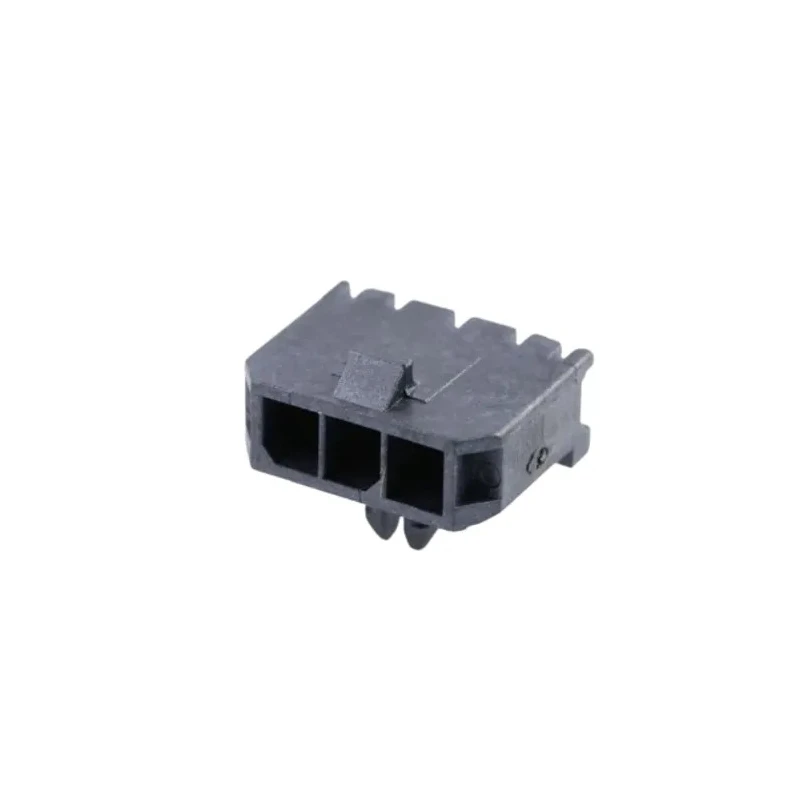

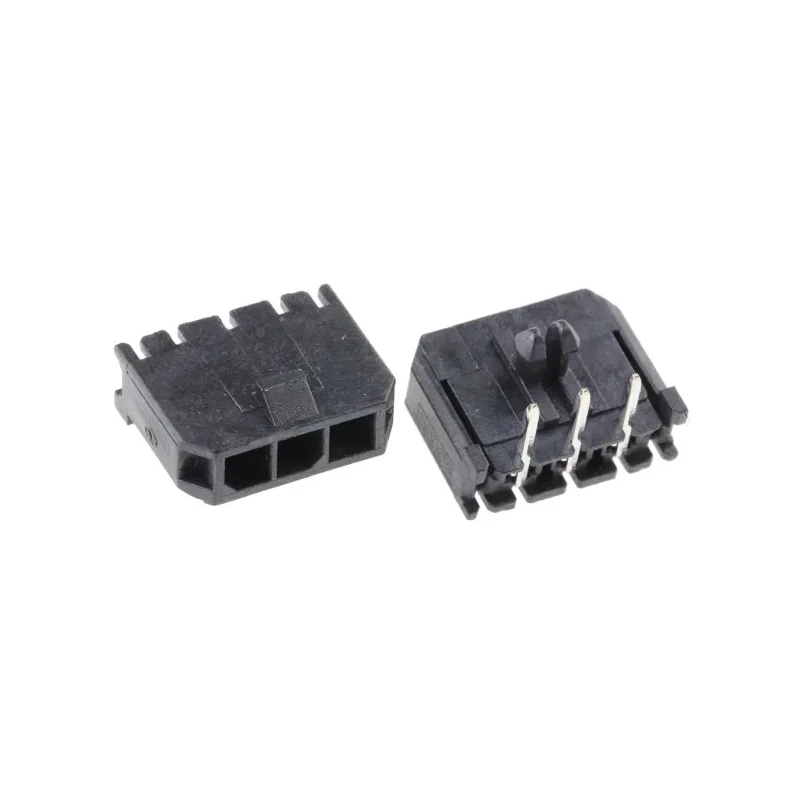

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 3 Contacts, 3 mm Pitch, 1 Row, Shrouded 43650-0300

Name: Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 3 Contacts, 3 mm Pitch, 1 Row, Shrouded 43650-0300
Brand: Molex
SKU: 206927
Price: 1.15 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	600V
Brand	Molex
Orientation	Right Angle
Current	8.5A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Female
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Provides a compact and secure wire-to-board connection system.
Constructed with thermoplastic housing resistant to impact and high temperatures.
Features brass contacts with tin plating for reliable conductivity and corrosion resistance.
Designed for through-hole mounting offering vibration-proof installation.
Operates within a voltage rating of 600V and current rating of 8.5A.
Suitable for industrial, medical, surveillance, and computer peripheral applications.
Includes solder termination for quick and secure PCB assembly.
High temperature UL 94V-0 liquid crystal polymer housing withstands up to 265°C during IR reflow soldering.

Product Description

Molex 43650-0300 Micro-Fit 3.0 Series right angle through hole PCB header offers a reliable and compact wire-to-board connection solution rated for 600V voltage and 8.5A current. This connector features a single row of 3 female contacts spaced at 3 mm pitch within a shrouded thermoplastic housing designed to withstand harsh industrial environments.

The brass contacts are plated with tin to provide excellent conductivity and resist corrosion, suitable for demanding electronic applications. Through-hole mounting provides a secure and vibration-resistant connection to printed circuit boards, making it ideal for industrial control, medical equipment, security and surveillance systems, and computer peripherals.

The connector housing is made from high-temperature UL 94V-0 liquid crystal polymer that can endure temperatures up to 265°C during the IR reflow soldering process. This ensures durability and reliability during manufacturing and operation.

Designed with snap-in plastic peg PCB locks and positive latching mechanisms, this header ensures that connections remain secure and resistant to accidental disconnection. Its solder termination type facilitates quick and secure installation on circuit boards.

The low-halogen construction of this Micro-Fit 3.0 series PCB header ensures environmental safety by reducing toxic fume emissions during fire, further supporting use in sensitive electronics applications.

Compact 3-contact right angle PCB header with 3 mm pitch. Thermoplastic housing for impact and heat resistance. Brass contacts with tin plating for reliable conductivity. Through-hole solder termination for secure PCB mounting.

High temperature UL 94V-0 polymer housing for IR soldering. Positive latching with snap-in plastic peg for secure fit. Voltage rating up to 600V and current rating of 8.5A. Low-halogen construction for environment-friendly use.

This product is a high-quality PCB header designed for various industrial and electronic applications where space efficiency, durability, and secure connectivity are critical. It is part of Molex's Micro-Fit 3.0 series, known for excellent current capacity in a small footprint.

Explore further electronic components and PCB connectors with Molex on EnvMart for trusted quality and advanced design.

Explore more products in our PCB Headers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This PCB header has a voltage rating of 600V and a current rating of 8.5A.

It utilizes through-hole mounting, providing a secure and vibration-resistant connection to printed circuit boards.

The connector features a pitch of 3 mm and has 3 female contacts in a single row.

The housing is made from thermoplastic, while the contacts are brass with tin plating for reliable conductivity and corrosion resistance.

The maximum operating temperature is 105°C, making it suitable for various applications.

Yes, it is constructed from high-temperature UL 94V-0 liquid crystal polymer, which can withstand temperatures up to 265°C during the IR reflow soldering process.

This model features a solder termination type, facilitating quick and secure installation on circuit boards.

It is suitable for industrial, medical, surveillance, and computer peripheral applications due to its reliable connection and durability.

It is designed with positive latching mechanisms and snap-in plastic peg PCB locks to keep connections secure and resistant to accidental disconnection.

The orientation of this model is right angle, which helps in space-constrained applications.

The country of origin for this PCB header is Mexico.

This model has a low-halogen construction, which reduces toxic fume emissions during fire, making it suitable for sensitive electronics applications.
