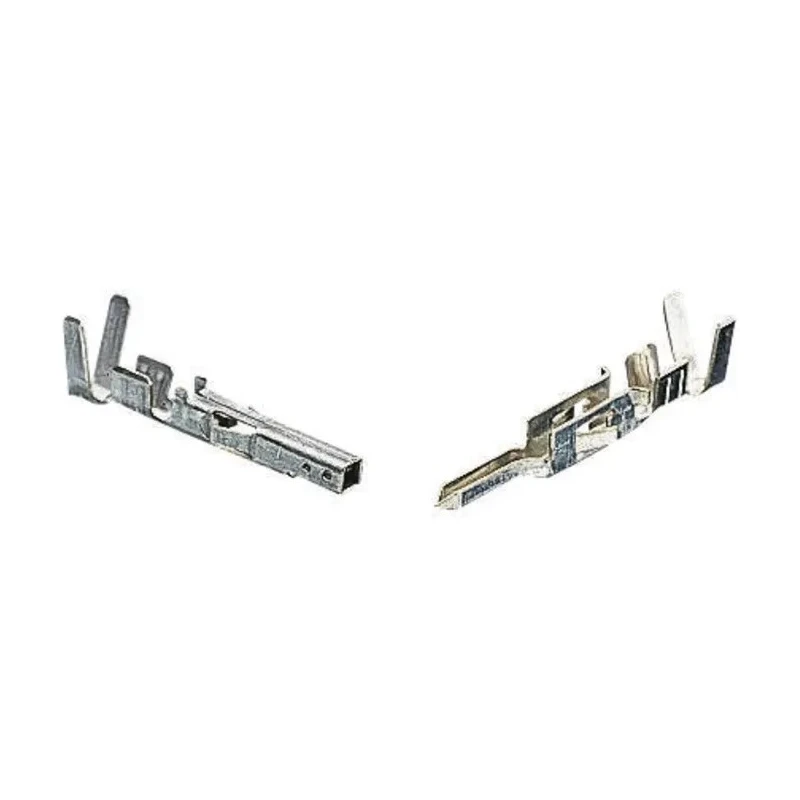

Molex 5556 Series Female Crimp Terminal, 16 AWG Min Crimp, 16 AWG Max, Tin Plating, Phosphor Bronze Contact 39-00-0218
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze contact material for high conductivity.
- Features tin plating to reduce corrosion and improve durability.
- Designed for secure crimp termination with locking tangs to prevent disconnection.
- Supports maximum 9A current capacity suitable for medium-duty applications.
- Operates reliably between -40°C to 105°C ensuring broad environmental tolerance.
- Compatible with Mini-Fit Jr connector series for versatile connectivity.
- Allows up to 30 mating cycles enabling reuse and maintenance adjustments.
- Weighs approximately 0.13 grams for lightweight PCB wiring solutions.
Product Description
The Molex 39-00-0218 is a female crimp terminal from the 5556 Series designed for dependable connections with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings. Manufactured with phosphor bronze contact material and featuring tin plating, this terminal offers excellent electrical conductivity and corrosion resistance.
Installation is streamlined with standard crimping tools, ensuring a secure and efficient termination. The integrated locking tangs maintain firm contact retention, which is particularly important in vibrating systems such as industrial automation and communications equipment.
This terminal supports a current rating of 9 amperes and operates across a wide temperature range from -40°C to 105°C, making it ideal for medium-duty industrial, medical, and communications applications. With a minimal weight of 0.13 grams, it is optimized for compact PCB wiring tasks.
The Molex 5556 Series female crimp terminal allows for up to 30 mating cycles, facilitating system adjustments without degradation of performance. Its multiple contact points ensure reliable electrical connectivity for safe and efficient signal transmission.
Constructed with phosphor bronze contact material for excellent conductivity. Tin plating enhances corrosion resistance and contact reliability. Locking tangs ensure secure retention within connector housings. Rated for 9A current, suitable for medium-duty electrical applications.
Wide operating temperature range from -40°C to 105°C. Compatible with Mini-Fit Jr connector housings for flexible use cases. Supports up to 30 mating cycles for durable long-term performance.
This crimp terminal is well-suited for uses in industrial automation, medical equipment, communications facilities, and other commercial electronic assemblies. Its design facilitates quick and secure PCB wiring and maintenance with high reliability and safety.
Explore additional Molex components and similar Crimp Contacts in EnvMart for comprehensive connectivity solutions across various industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current capacity of 9A, making it suitable for medium-duty applications.
It operates reliably between -40°C to 105°C, ensuring broad environmental tolerance for various applications.
The terminal is constructed with phosphor bronze for the contact material and features tin plating to enhance corrosion resistance.
It is designed for use with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings, providing versatile connectivity options.
This model allows for up to 30 mating cycles, enabling reuse and maintenance adjustments without performance degradation.
This crimp terminal weighs approximately 0.13 grams, making it lightweight for PCB wiring solutions.
It utilizes a crimp termination type, ensuring secure and efficient connections.
The maximum contact resistance for this terminal is 10mΩ, ensuring reliable electrical connectivity.
Yes, this terminal is well-suited for industrial automation, medical equipment, and communications facilities due to its robust design.
The minimum wire size for this terminal is 16 AWG, accommodating various wiring needs.
Installation can be performed with standard crimping tools, ensuring a secure and efficient termination process.
This crimp terminal is manufactured in India, reflecting its origin.
