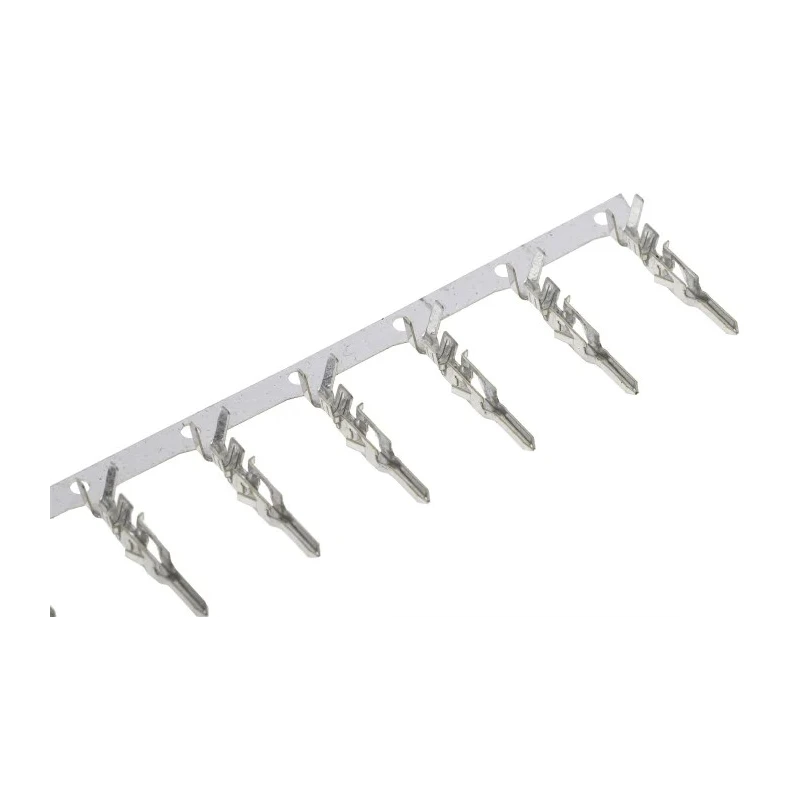

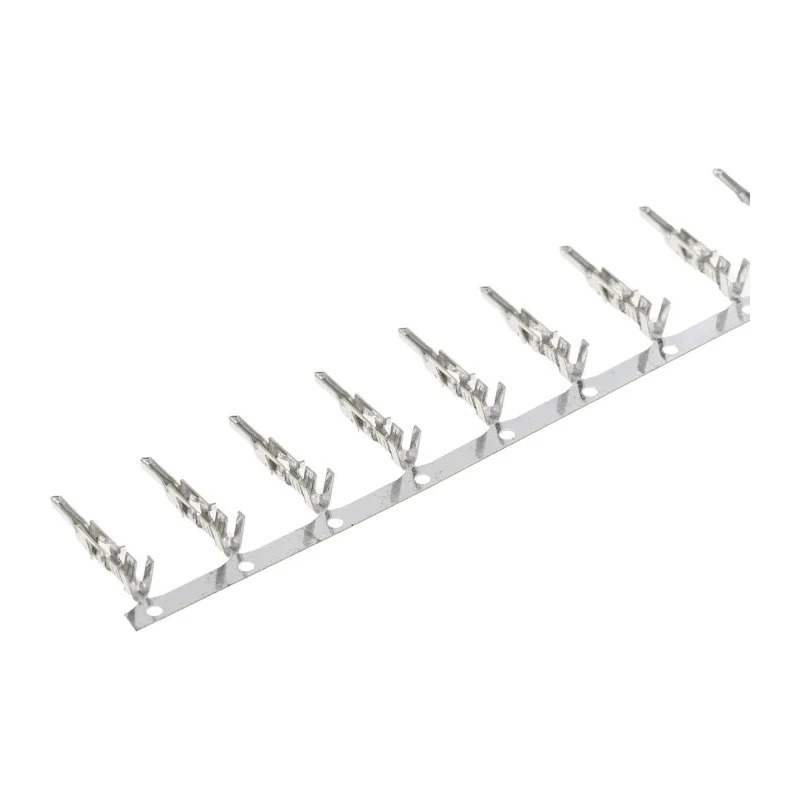

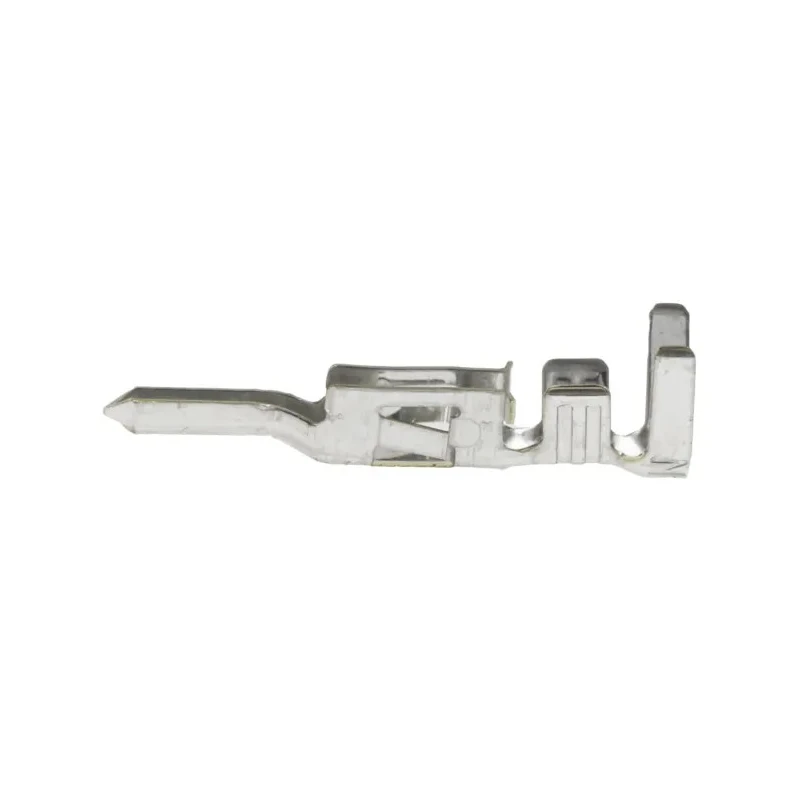

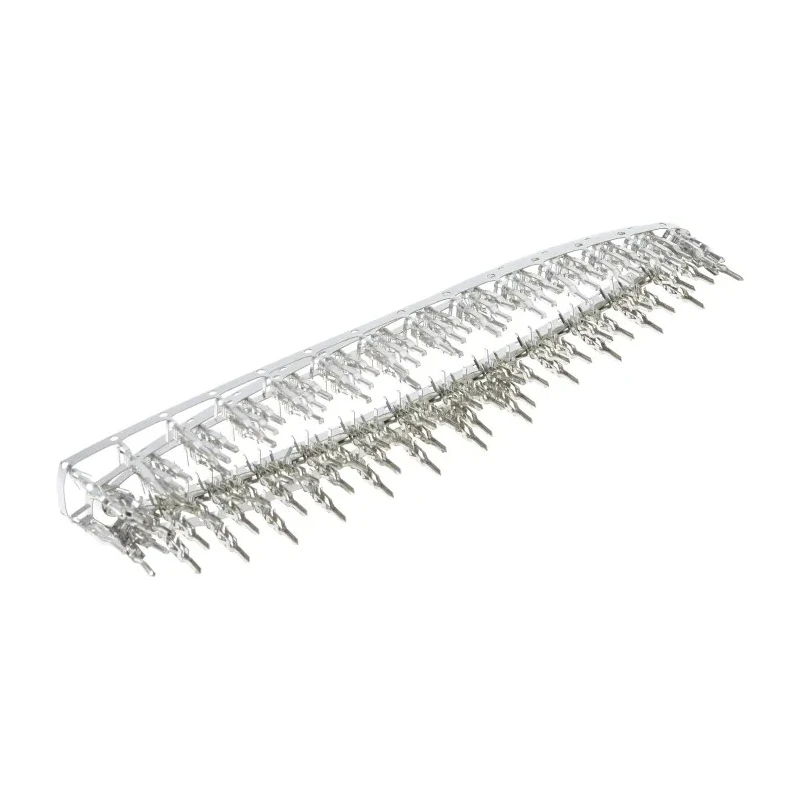

Molex 5558 Series Male Crimp Terminal for 22 AWG Min and 16 AWG Max Wire Size 9A Current Rating 39-00-0081

Molex 39-00-0081 is a male crimp terminal from the 5558 series, engineered for use with wire sizes ranging from 22 AWG minimum to 16 AWG maximum. Constructed from high-quality brass material with tin plating, this crimp terminal offers excellent electrical conductivity and durability. It supports a current rating of 9 amperes and maintains integrity within an operating temperature range of -40°C to 105°C.

This terminal is designed for use in Mini-Fit Junior plug housings such as models 5559, 42475 BMI, and 30068 TPA, providing a secure and reliable connection with multiple points of contact. Locking tangs ensure firm retention within connector housings, reducing the risk of disconnection in demanding industrial applications.

Its crimp termination type enables strong mechanical and electrical bond with wires, while the maximum contact resistance of 10 milliohms minimizes power loss and heat generation. The terminal is RoHS compliant and suitable for a variety of sectors including automotive, industrial automation, medical equipment, communications, and consumer electronics.

The compact form factor and robust design ensure dependable performance in PCB connectors and wire harness assemblies. The terminal's plating and material support long service life in harsh conditions with resistance to corrosion and oxidation.

Molex 5558 series crimp terminals are essential components for dependable power distribution and signal transmission in complex electrical systems. They facilitate efficient assembly and maintenance of connectors in manufacturing and repair environments.

Constructed of brass with tin plating for excellent conductivity and corrosion resistance. Supports wire sizes from 22 AWG minimum to 16 AWG maximum for versatile applications. Current rating of 9 amperes suitable for moderate power requirements.

Operating temperature range from -40° to 105°C for use in varied environments. Termination type: crimp for secure and reliable wire connection. Multiple contact points and locking tangs ensure strong mechanical and electrical connection.

Compatible with several Mini-Fit Junior series plug housings for design flexibility. Low maximum contact resistance of 10 milliohms reduces losses and enhances efficiency.
