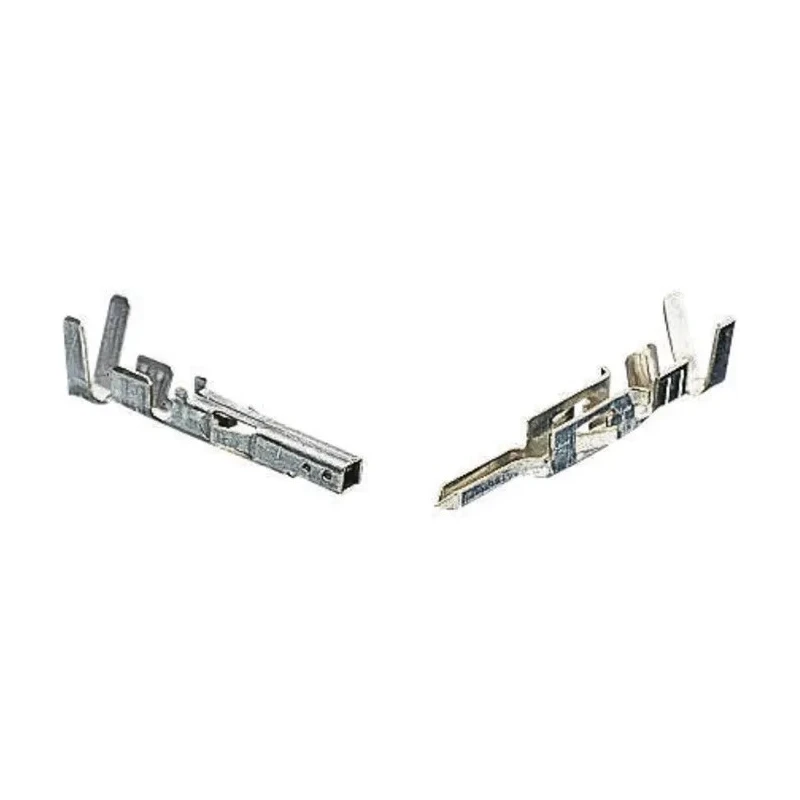

Molex 5558 Series Male Crimp Terminal, 16 AWG Min-Max Wire Size, Brass with Gold Plating, 9A Current Capacity 39-00-0096
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass with gold plating for enhanced conductivity and corrosion resistance.
- Suitable for Mini-Fit Jr connector housing applications.
- Supports a maximum current of 9 amperes for efficient performance.
- Rated for operation between -40°C and 105°C for versatile temperature conditions.
- Features crimp termination type for dependable wire connection.
- Maximum contact resistance limited to 10 milliohms for low loss.
- Designed for wire sizes up to 1.3 mm² or 16 AWG maximum.
- Manufactured in the United States ensuring high quality standards.
Product Description
Molex 39-00-0096 5558 Series Male Crimp Terminal is engineered for dependable and efficient electrical connectivity in various industrial, manufacturing, and electronic assembly applications. This crimp terminal is designed to be used with Mini-Fit Jr connector housings, facilitating secure wire-to-wire or power connections.
Manufactured from durable brass with selective gold plating on the contact, it offers superior conductivity while reducing oxidation for long-lasting performance. The terminal supports wire sizes ranging from 16 AWG minimum to a maximum of 16 AWG (1.3 mm²), accommodating common electrical wiring standards.
Rated for a maximum current of 9 amperes and designed to operate reliably in temperature extremes from -40 °C up to +105 °C, this terminal is suitable for a wide variety of environments, including industrial automation, power distribution, and electronic equipment.
The crimp termination type ensures a strong mechanical and electrical connection when properly assembled with compatible crimp tools. With a low maximum contact resistance of 10 milliohms, it provides effective electrical performance at voltages up to 600 V.
This product is made in the United States and complies with environmental regulations such as RoHS, ensuring it meets quality and safety standards required in modern electrical systems.
Constructed from brass with gold plating for enhanced conductivity and corrosion resistance. Supports 9A current capacity for reliable electrical performance. Operates within temperature range of -40°C to 105°C for varied industrial applications.
Compatible with Mini-Fit Jr connector housings for secure connections. Crimp termination design suitable for effective manual or automated assembly. Maximum contact resistance of 10 milliohms ensures low electrical losses.
Handles wire sizes up to 16 AWG (1.3 mm²) for flexible wiring needs. Manufactured in the United States ensuring quality and compliance.
This Molex 5558 Series Crimp Terminal is ideal for electrical engineers, technicians, and manufacturers engaged in automated equipment, power systems, and electronic device assembly who require a high-quality, reliable male crimp terminal solution. Browse our Electronics Components category at EnvMart for more connector products and accessories from trusted brands.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current capacity of 9 amperes.
It is rated for operation between -40°C and 105°C, making it suitable for various temperature conditions.
This model features a crimp termination type, ensuring a strong mechanical and electrical connection when properly assembled.
It is designed for use with Mini-Fit Jr connector housings, facilitating secure wire-to-wire or power connections.
The maximum contact resistance is limited to 10 milliohms, ensuring low electrical losses.
It is constructed from brass with gold plating, enhancing conductivity and corrosion resistance.
This terminal accommodates wire sizes from 16 AWG (1.3 mm²) maximum.
It is manufactured in the United States, ensuring compliance with high quality standards.
It is suitable for various industrial, manufacturing, and electronic assembly applications.
This crimp terminal belongs to the Molex 5558 Series.
This terminal is a male crimp terminal, designed for secure connections.
It is rated for effective electrical performance at voltages up to 600 V.
