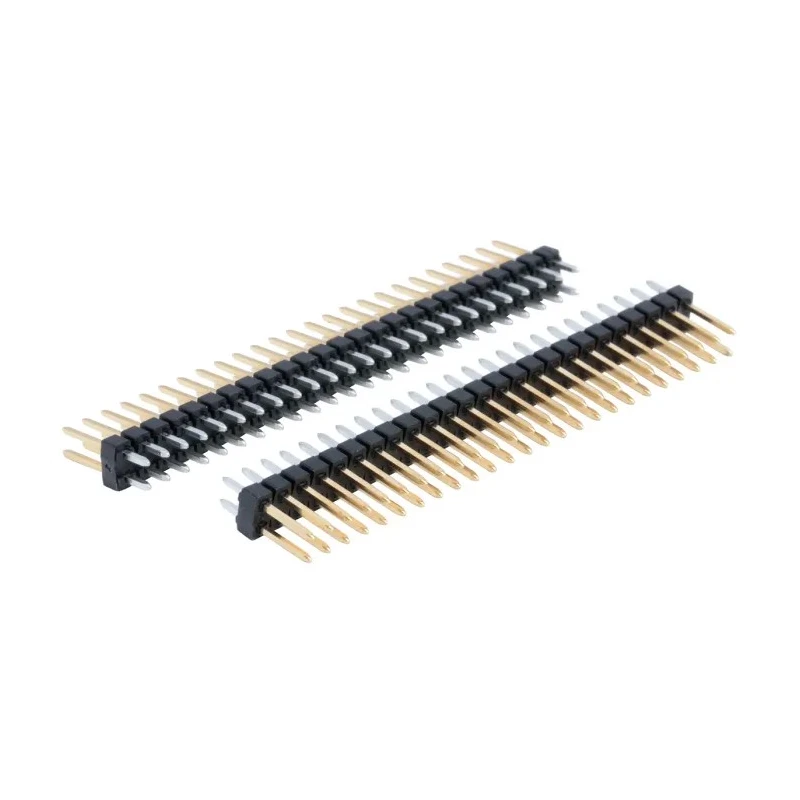

Molex C-Grid III Series 50 Contact Straight Through Hole Pin Header, 2 Row, 2.54 mm Pitch, Unshrouded 90131-0785

Molex 90131-0785 C-Grid III Series Straight Through Hole Pin Header is a high-performance PCB connector with 50 male contacts arranged in 2 rows at a 2.54 mm pitch. This unshrouded header features a breakaway design allowing customization to meet varying board layout requirements.

The pins are made of brass and plated with gold to provide reliable electrical contact and resistance to oxidation. The housing material is polyester, chosen for its durability and excellent insulation properties. The header supports wire-to-board applications with a solder termination type and through-hole mounting for secure placement on printed circuit boards.

Electrical specifications include a current rating of 3A and maximum operating voltage of 350V, suitable for various industrial, medical, computer, telecommunications, and automotive electronics. It operates reliably between -55°C and 125°C, making it appropriate for harsh environments.

Pin dimensions are precise with a tail pin length of 2.9 mm for soldering and a mating pin length of 6.75 mm for secure connections. The unshrouded, straight orientation provides easy access for mating connectors. The breakaway capability allows designers to cut the rows to required sizes, enhancing design flexibility.

This pin header series is compatible with other C-Grid III sockets and crimp housings, facilitating seamless integration into existing systems. Its high mechanical stability once soldered ensures strong retention and durability in demanding applications such as desktop PCs, servers, medical devices, and automotive safety systems.

Features a breakaway design allowing customizable sizing for application flexibility. Constructed with brass contacts plated in gold for excellent conductivity and corrosion resistance. Utilizes a polyester housing that ensures durability and electrical insulation.

Supports a maximum operating voltage of 350 volts and current rating of 3 amperes. Designed for solder termination with a tail pin length of 2.9 mm and mating pin length of 6.75 mm. Operating temperature range extends from -55°C to 125°C for robust performance.

Unshrouded design with straight orientation and through-hole mount suitable for diverse electronics applications. Explore similar high-quality PCB headers in the Electronics Components category on EnvMart for your industrial and commercial electronic assembly requirements.
