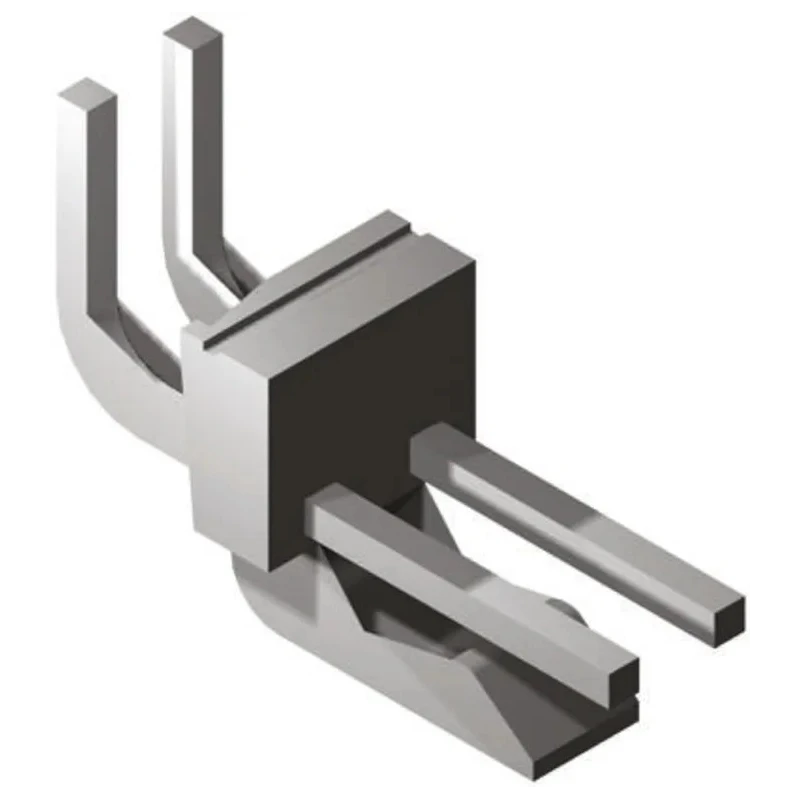

Molex KK 396 Series Right Angle Through Hole Unshrouded Pin Header 12 Contacts 3.96 mm Pitch 26-60-5120

Molex 26-60-5120 KK 396 Series Right Angle Through Hole Unshrouded Pin Header is a high-quality wire-to-board connector designed for electronic component assemblies requiring dependable signal or power transfer. With 12 male contact pins arranged in a single row and a precise 3.96 mm pitch, this PCB Pin Header fits standard layouts and allows for easy board integration.

The header features an unshrouded design optimizing ease of connector mating and soldering processes in industrial manufacturing and prototyping. Its polyester housing material provides mechanical strength and electrical insulation, while phosphor bronze contact pins plated with tin enhance conductivity and corrosion resistance, ensuring long service life.

Designed for through-hole mounting, the right angle orientation of the contact pins facilitates compact and space-saving printed circuit board designs often required in telecommunications, instrumentation, consumer electronics, and industrial controls. It supports a current capacity of up to 7 amperes and a voltage rating of 250 volts, making it suitable for a wide variety of power and signal applications.

The operating temperature range from -40°C to 105°C ensures reliable performance across a broad range of industrial and commercial environments. The precise tail pin length of 3.96 mm matches the pitch to guarantee proper insertion and mechanical stability during soldering.

This Molex KK 396 series pin header mates with related Molex housing components such as series 2139, 3069, 6442, and 41695, as well as PC board connectors from series 2145 and 41815, providing modular connectivity solutions. The product is made in Mexico under stringent quality standards emphasizing durability and performance.

12 contact pins provide stable electrical connections. 3.96 mm pitch spacing suits standard PCB layouts. Right angle orientation enables compact board designs. Unshrouded header design for easy insertion and soldering. Constructed with polyester housing ensuring durability.

Phosphor bronze contacts plated with tin for corrosion resistance. Designed for through-hole mounting for secure attachment. Supports current rating up to 7 amperes for power applications. Operating temperature ranges from -40°C to 105°C for diverse environments.

Tail pin length is 3.96 mm matching pitch for proper PCB insertion.

Ideal for electronics manufacturing, prototyping, and industrial control equipment, this Molex KK 396 Series Pin Header combines precise engineering with durable materials to ensure reliable, high-performance connectivity.
