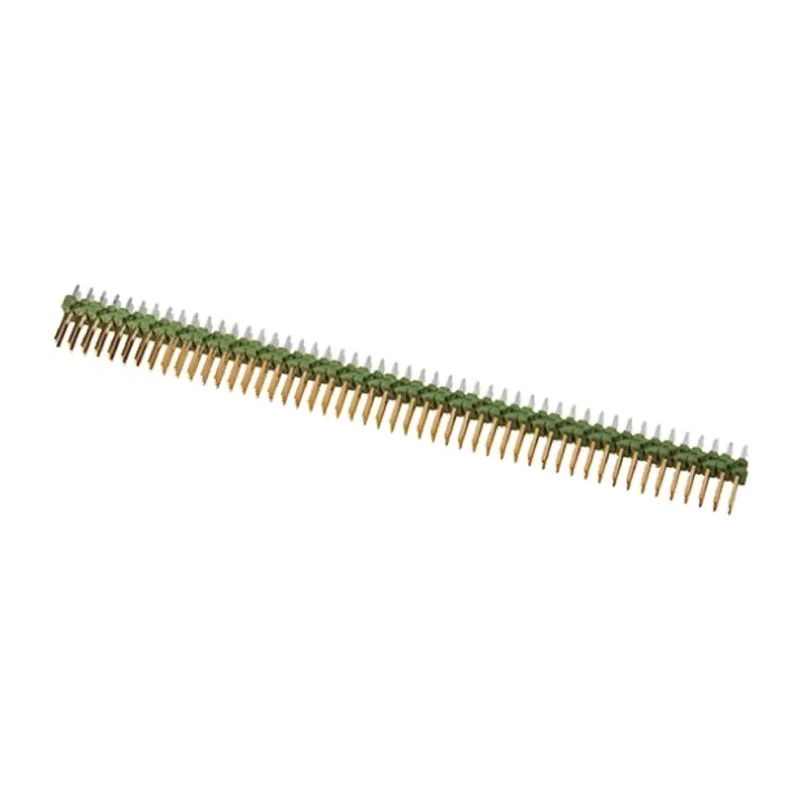

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 100 Contacts, 2 Row, 2.54 mm Pitch, Brass 5-825440-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Constructed with brass contact material with gold plating for excellent conductivity and corrosion resistance.
- Features unshrouded straight male pins with a tail pin length of 3.2 mm and mating pin length of 6.7 mm.
- Designed for a maximum operating voltage of 750V and current rating of 3A.
- Operating temperature range from -55°C to 105°C ensuring reliability in diverse environments.
- Pitch of 2.54 mm between contacts with 2 rows providing compact and versatile connection options.
- Through-hole mount type aiding robust and secure PCB connection.
- Compatible with board-to-board and wire-to-board connector systems.
- Easy to break down to required sizes saving installation time and labor costs.
Product Description
TE Connectivity 5-825440-0 AMPMODU MOD II Series Straight Through Hole Pin Header features 100 brass contacts plated with gold, arranged in 2 rows with a 2.54 mm pitch. This unshrouded male pin header is designed for reliable through-hole PCB mounting in demanding electronic applications.
The header supports a current rating of 3A and a voltage rating up to 750V. Its robust housing is made from durable polyester suitable for operating temperatures ranging from -55°C to 105°C, making it adaptable to harsh industrial and automotive environments.
The 3.2 mm tail pin length and 6.7 mm mating pin length ensure secure and stable connections. The unshrouded design offers flexibility in connecting with various PCB or wire terminals without obstruction.
These pin headers are versatile and easily breakable to the desired size, simplifying installation and reducing labor costs. They are compatible with both board-to-board and wire-to-board connection systems, making them suitable for a wide range of electronic assemblies.
Typical applications include automotive controls, industrial automation and test equipment, computers, telecommunications infrastructure, medical instrumentation, and storage or consumer appliances.
Constructed with brass contact material with gold plating for excellent conductivity and corrosion resistance. 100 contacts arranged in 2 rows with 2.54 mm pitch. Operating temperature range from -55°C to 105°C. Maximum current rating of 3A and voltage rating of 750V.
Through-hole mount for secure PCB connection. Compatible with board-to-board and wire-to-board connector systems. Easy to break down to required sizes saving installation time and cost. Suitable for automotive, industrial, telecommunications, medical, and storage equipment.
Explore the full range of PCB connectors and headers available at EnvMart for your electronic component needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750V.
This pin header has a current rating of 3A.
The pitch between contacts on this model is 2.54 mm.
The tail pin length is 3.2 mm, and the mating pin length is 6.7 mm.
The contact material is brass, and it features gold plating for enhanced conductivity and corrosion resistance.
The operating temperature range for this pin header is from -55°C to 105°C.
This pin header features 100 contacts arranged in 2 rows.
This pin header uses a through-hole mount type for secure PCB connection.
Yes, it is compatible with both board-to-board and wire-to-board connector systems.
The orientation of the pins on this model is straight.
This pin header utilizes solder termination type.
The country of origin for this pin header is India.
