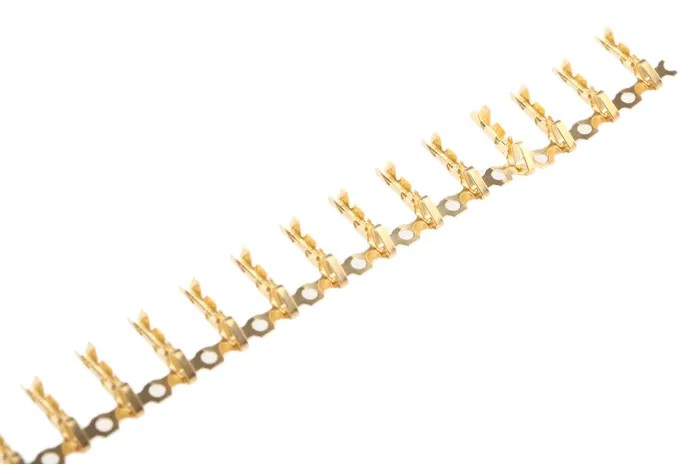

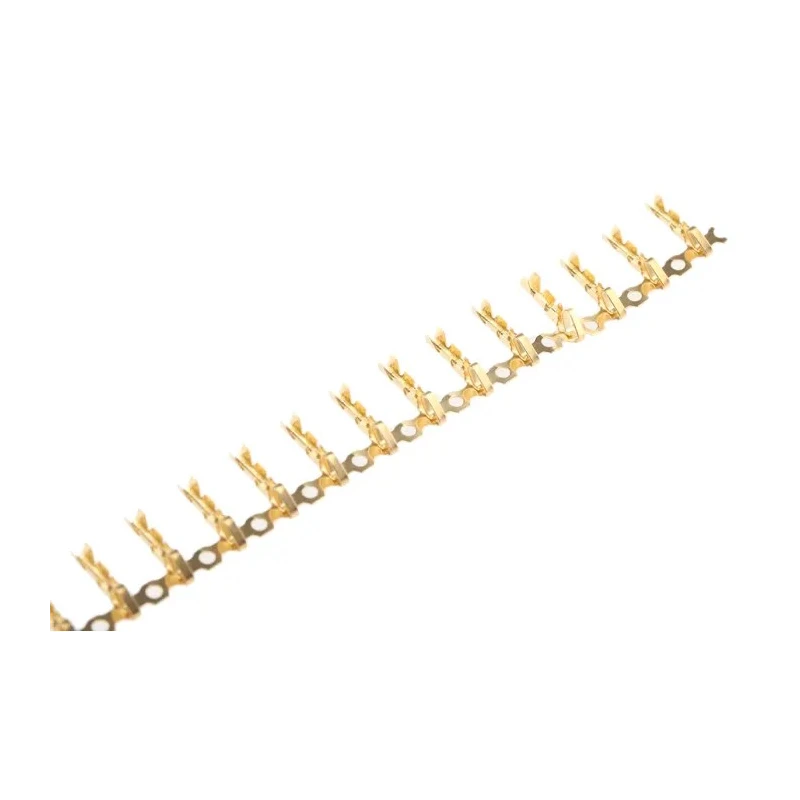

Molex 4809 Series Female Crimp Terminal, 4A Current, 30 AWG Min to 22 AWG Max Wire Size, Brass Contact with Gold 08-56-0120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 4A |
| Gender | Female |
| Contact Material | Brass |
| Series | 4809 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| For Use With | KK 254 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from durable brass with corrosion-resistant gold plating.
- Compatible with KK 254 connector housing ensuring secure mechanical and electrical connections.
- Crimp termination provides airtight seal preventing moisture ingress and corrosion.
- Rated for operation in temperatures from -40°C to 80°C for reliable performance.
- Ideal for automotive, medical equipment, home security, and fire alarm systems.
- Offers low contact resistance of 10 milliohms for efficient conductivity.
- Part of Molex's KK interconnect system designed for easy assembly and secure fit.
Product Description
The Molex 4809 Series Female Crimp Terminal (Model 08-56-0120) is crafted from premium brass material with a protective gold plating that ensures superior corrosion resistance and excellent electrical conductivity. This crimp contact is designed for use with KK 254 connector housings, supporting a wire size range from 30 AWG (minimum) to 22 AWG (maximum), and carrying a current of up to 4 amperes. Operating reliably within a temperature range of -40°C to 80°C, it offers a robust solution for a variety of industrial and commercial applications.
Featuring a crimp termination type, it creates a moisture-proof and dust-resistant seal that increases the longevity and reliability of electrical connections in critical environments. The low contact resistance of 10 milliohms ensures minimal power loss and strong signal transmission.
This component is widely used in automotive interior lighting systems, medical devices, home security installations, fire alarm panels, gaming devices, and various data and communications equipment. The Molex KK interconnect system, of which this Terminal is a part, is well-regarded for its ease of use and mechanical strength ensuring solid and consistent connections without the need for alloy fillers.
The product complies with relevant environmental norms including low halogen content, reducing toxic emissions in case of fire, and matches EU safety standards. This makes it a safe and environmentally responsible choice for modern electrical assemblies.
Durable brass construction with gold plated contacts for corrosion resistance. Compatible with KK 254 Connector Housing ensuring seamless integration. Rated for temperature extremes from -40°C to 80°C suitable for diverse environments.
Crimp termination type seals connections against moisture and contaminants. Supports wire sizes between 30 AWG minimum and 22 AWG maximum. Maintains low contact resistance of 10 milliohms for efficient signal transmission.
Ideal for automotive, medical, security, and fire alarm applications. Explore the comprehensive Molex connectivity solutions in the Electronics & Electricals category at EnvMart for industrial, commercial, and laboratory applications.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 4 amperes.
It supports a wire size range from 30 AWG (minimum) to 22 AWG (maximum).
This terminal operates reliably within a temperature range of -40°C to 80°C.
The contacts are made of brass and are plated with gold for corrosion resistance.
It is designed for use with KK 254 connector housings.
This model uses a crimp termination type, which provides a moisture-proof and dust-resistant seal.
The maximum contact resistance is 10 milliohms, ensuring efficient conductivity.
It is suitable for automotive, medical equipment, home security, and fire alarm systems.
The dimensions and weight of this crimp terminal are not specified in the provided information.
It complies with relevant environmental norms, including low halogen content, which reduces toxic emissions in case of fire.
Yes, this terminal is part of Molex's KK interconnect system, known for its ease of use and mechanical strength.
The country of origin for this crimp terminal is India.
