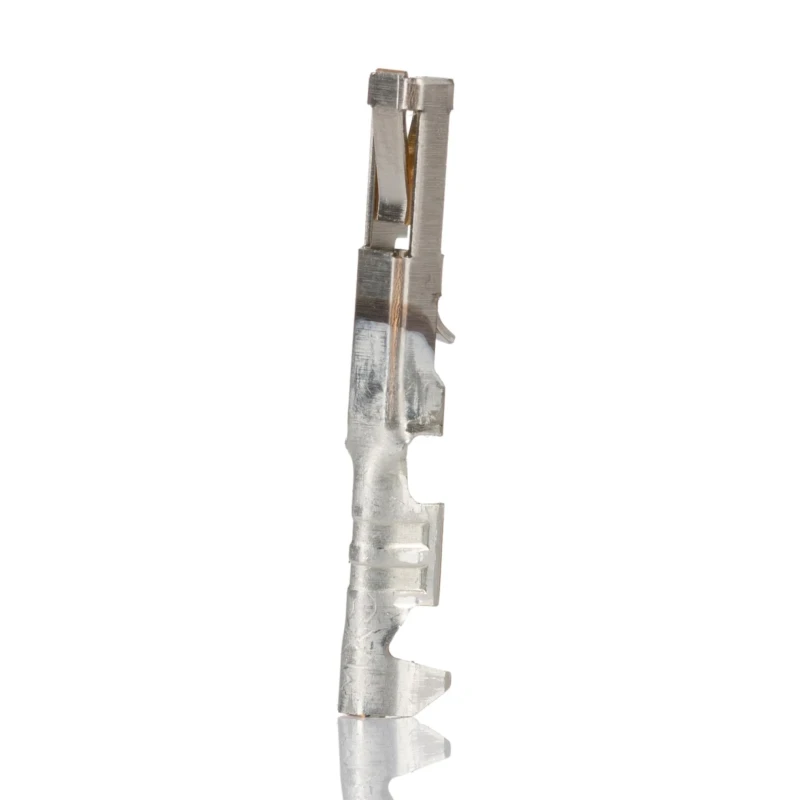

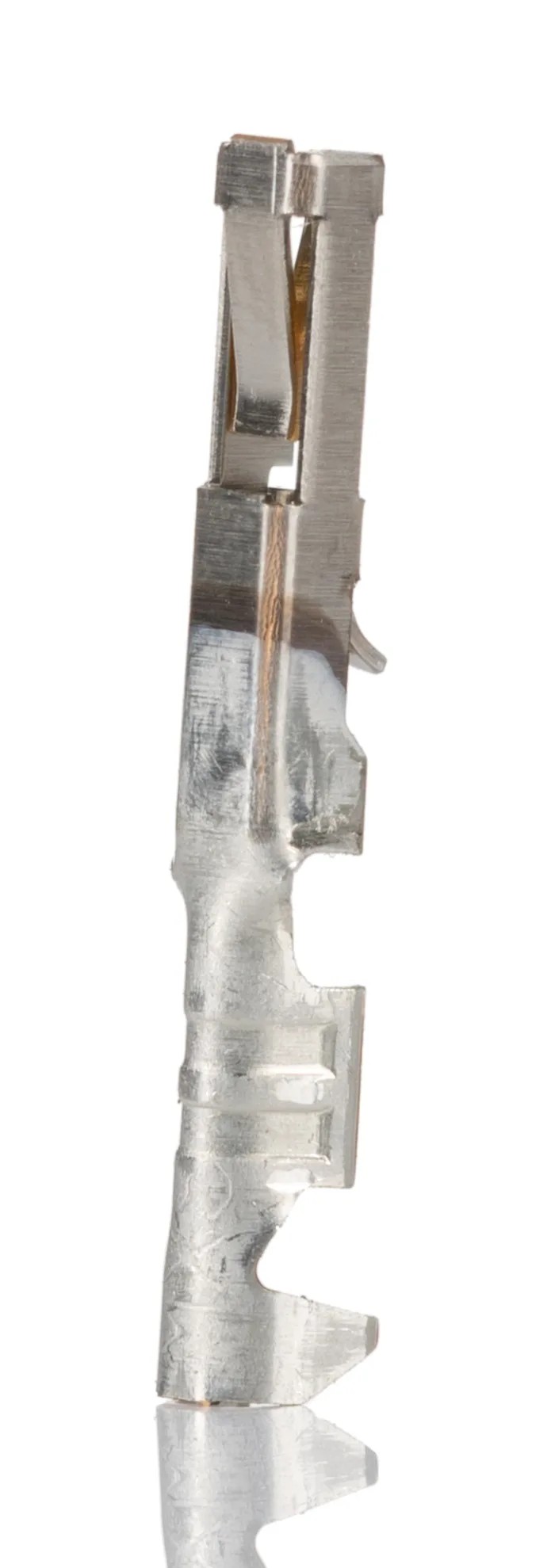

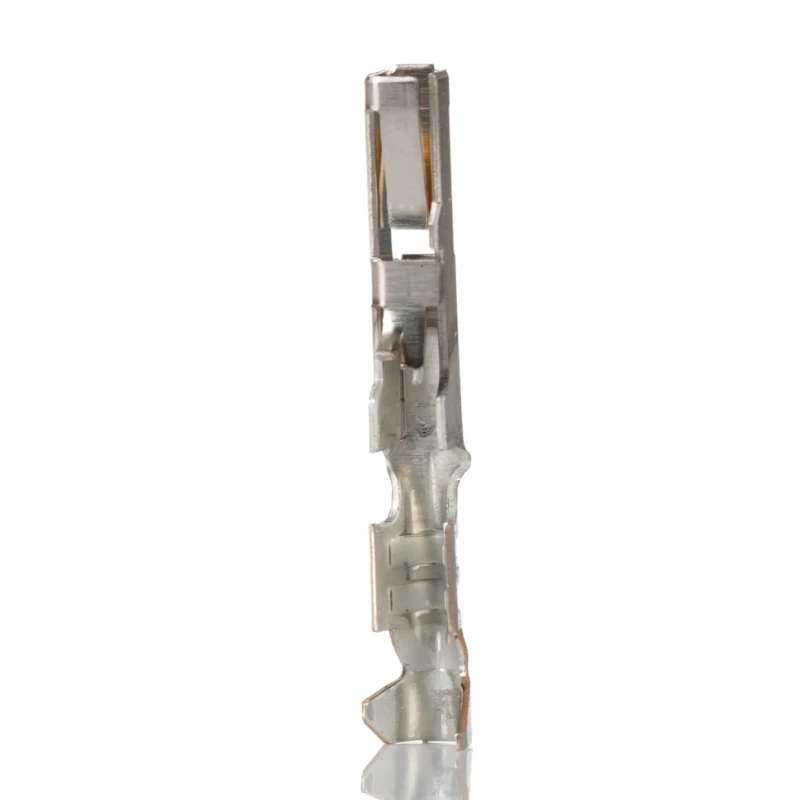

Molex 90119 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max, Gold Plated, Phosphor Bronze Contact 90119-2111
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
| Molex 90119 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Key Features
- Gold plating provides superior conductivity and corrosion resistance.
- Phosphor bronze contact material offers durability and excellent electrical performance.
- Suitable for use with C-Grid III connector housings.
- Supports crimp termination for reliable and quick installation.
- Withstands operating temperatures from -55°C to 105°C.
- Maximum current rating of 3A for signal and wire-to-board applications.
- Packaged conveniently on reels for easy use in manufacturing environments.
Product Description
Molex 90119-2111 female crimp terminal is a precision electrical connector designed to provide secure crimp connections for wire sizes ranging from 24 AWG minimum to 22 AWG maximum. Featuring a gold-plated phosphor bronze contact, this terminal ensures excellent conductivity and long-term corrosion resistance, suitable for demanding industrial, electronic, and manufacturing applications.
The crimp termination type of this terminal facilitates quick and reliable installation using a variety of hand crimp tools, making it ideal for signal and wire-to-board connections in PCB and electrical connector assemblies. It is specifically made to fit the C-Grid III modular connector housings, commonly used in complex electronic systems.
With an operating temperature range from -55°C to 105°C and a maximum contact resistance of 20 mΩ, this terminal guarantees stable performance under diverse environmental conditions. Its compact design and packaging on reels support efficient assembly line use and inventory management.
Gold plating ensures superior conductivity and corrosion resistance. Phosphor bronze contact material provides durability and electrical reliability. Designed for use with C-Grid III connector housings. Crimp termination allows for fast and secure wire connections.
Rated for 3A current capacity suitable for signal applications. Wide operating temperature range from -55°C to 105°C. Packaged on reels for convenient handling and automated usage.
This crimp terminal is widely used in electronic components manufacturing, industrial connector assemblies, laboratory instrumentation wiring, and other applications requiring durable and reliable wire termination. Molex’s adherence to quality ensures compliance with industry standards, delivering consistent electrical connection performance.
Explore more Molex connector parts and Crimp Contacts on EnvMart for reliable industrial and electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 90119 Series female crimp terminal accommodates wire sizes from 24 AWG minimum to 22 AWG maximum.
This terminal has a maximum current rating of 3A, suitable for signal and wire-to-board applications.
It operates within a temperature range of -55°C to 105°C.
This model is designed for use with C-Grid III connector housings.
The contact material is phosphor bronze, which provides durability and excellent electrical performance.
It uses crimp termination, allowing for quick and reliable installation with various hand crimp tools.
The maximum contact resistance is 20 mΩ, ensuring stable electrical performance.
It is conveniently packaged on reels, facilitating easy handling and use in manufacturing environments.
The terminal features gold plating, which provides superior conductivity and corrosion resistance.
The minimum wire size is 0.2 mm².
The country of origin for this terminal is Singapore.
This terminal is suitable for applications in electronic components manufacturing, industrial connector assemblies, and laboratory instrumentation wiring.
