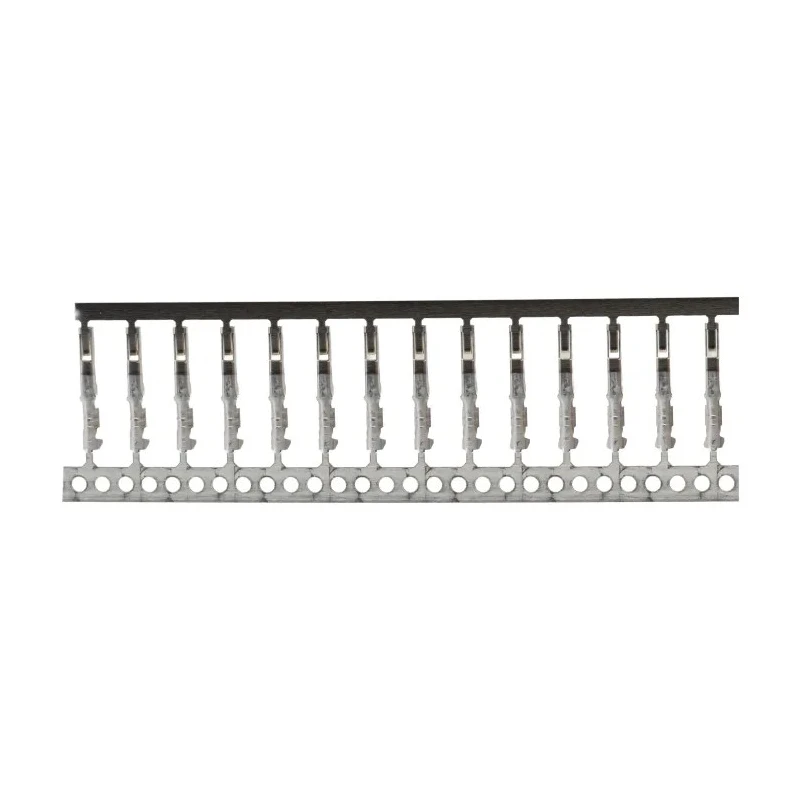

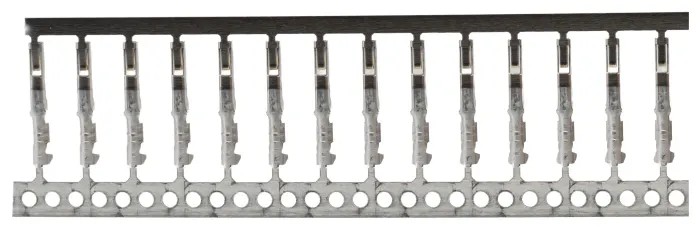

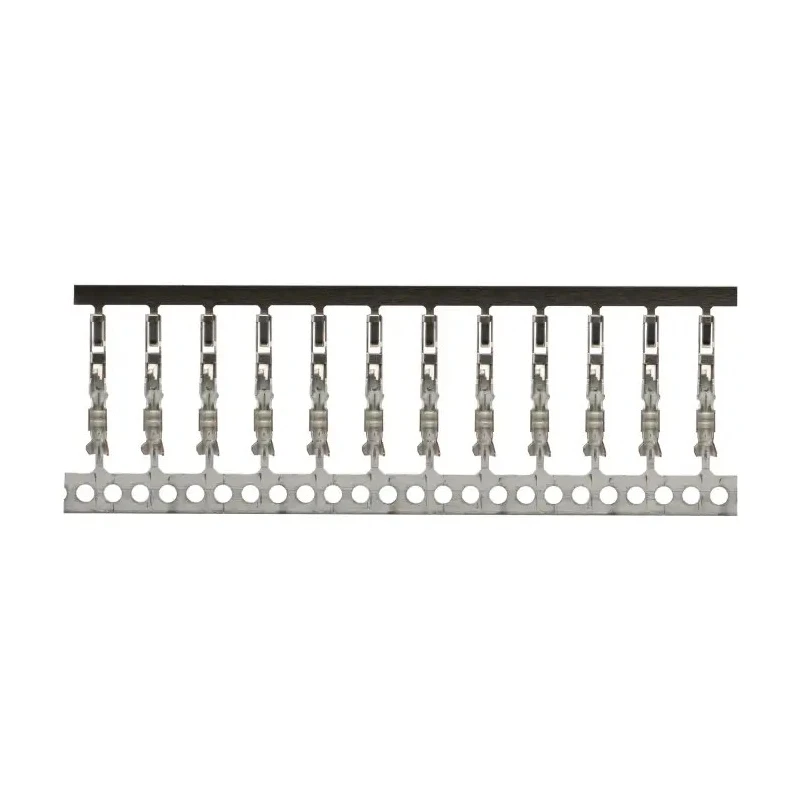

Molex 90119 Series Female Crimp Terminal 24 AWG Min Crimp 22 AWG Max, Gold Plated Phosphor Bronze Contacts 3A 90119-0111

Molex 90119-0111 Female Crimp Terminal is an industrial-grade connector component designed for precise and secure electrical terminations. The terminal is manufactured with phosphor bronze contact material, which imparts strength and excellent electrical conductivity. The gold plating on the contacts enhances conductivity and offers robust resistance to corrosion and oxidation, ensuring stable connections over prolonged use.

Specifically engineered to accommodate wire sizes ranging from 24 AWG (0.2 mm²) minimum to 22 AWG (0.35 mm²) maximum, this terminal supports a continuous current load of up to 3 amperes. Its termination method uses crimping, which allows for fast, reliable, and repeatable electrical connections, minimizing installation errors compared to soldering.

Designed for compatibility with the Molex C-Grid III Connector Housing series, this female crimp terminal provides versatile integration within modular connector systems commonly used in industrial and electronic assemblies. It is suitable for signal and power wire-to-board connections.

The terminal is rated for operation at temperatures between -55°C and 105°C, making it suitable for demanding environments such as industrial automation, electronic equipment, telecommunications, and automotive applications.

Additional advantages include a maximum contact resistance of 20 milliohms, ensuring minimal signal loss, and packaging on reels to facilitate automated assembly and improve production efficiency.

Constructed of phosphor bronze for durability and conductivity. Features gold plating to resist corrosion and improve electrical performance. Supports 3A current rating for reliable operation. Compatible with C-Grid III modular connector housings for flexible system designs.

Operates efficiently in temperature extremes from -55°C to 105°C. Crimp termination provides strong mechanical and electrical connection. Max contact resistance of 20mΩ supports signal integrity. Reel packaging supports high-volume automated insertion processes.

Ideal for use in electronic manufacturing, industrial automation, telecommunications infrastructure, and other professional electrical equipment assembly contexts. Explore comprehensive selections of Crimp Contacts and connectors at EnvMart for enhanced electrical connectivity solutions.
