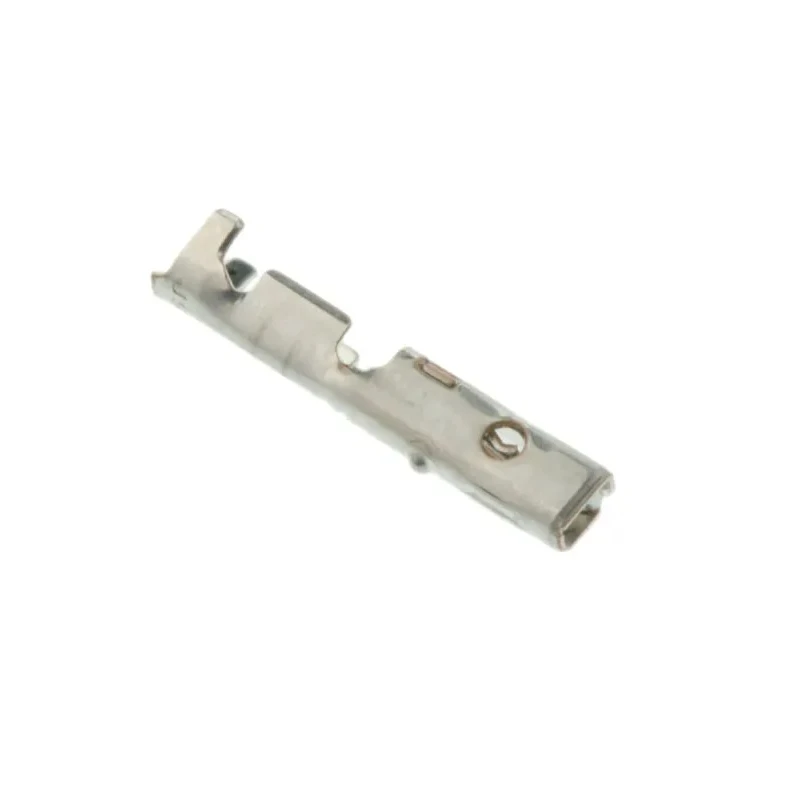

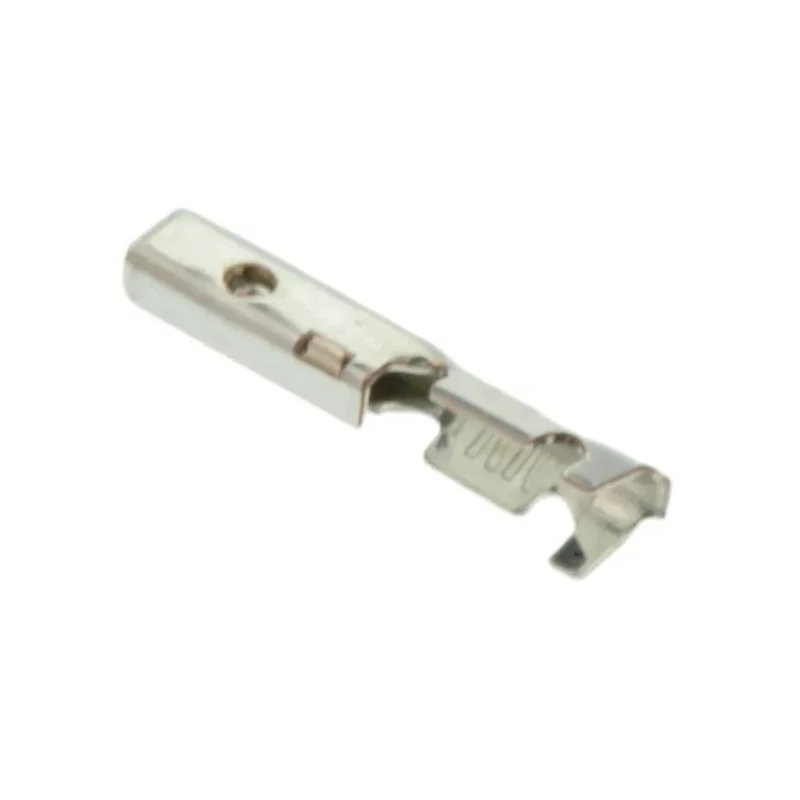

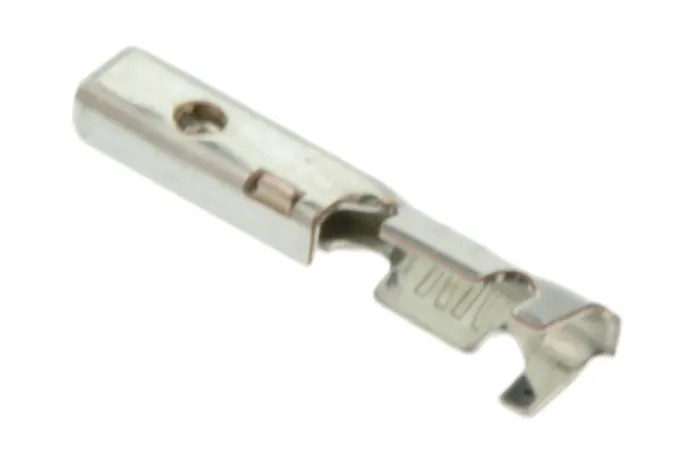

JST JWPF Series Female Crimp Terminal 3A Current, 26 AWG Min, 22 AWG Max SWPR-001T-P025



Category Crimp Contact Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Current	3A
Model	SWPR-001T-P025
Gender	Female
Contact Material	Copper Alloy
Series	JWPF
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
For Use With	JWPF Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.13mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	15mΩ

Key Features

Constructed from copper alloy ensuring high conductivity.
Contact plating with tin for corrosion resistance.
Rated for a maximum temperature of 85°C and minimum of -55°C.
Designed to provide a maximum contact resistance of 15 milliohms.
Terminated by crimping for reliable electrical connection.
Ideal for use with JWPF connector housings in wire-to-wire applications.
Manufactured in Japan adhering to strict quality standards.
Compatible with specialized crimp hand tools and extraction tools for assembly and maintenance.

Product Description

JST SWPR-001T-P025 is a high-quality female crimp terminal designed for the JWPF series of connectors. It supports a current rating of 3 amperes and accepts wire sizes from 26 AWG minimum to 22 AWG maximum, making it suitable for a wide range of wire gauge requirements in electronic and electrical assemblies.

The terminal is fabricated from copper alloy to ensure excellent electrical conductivity and is plated with tin to provide corrosion resistance, enhancing reliability in demanding environments.

Operable in a temperature range from -55°C to 85°C, this crimp terminal maintains consistent performance under diverse industrial and environmental conditions. The maximum contact resistance is limited to 15 milliohms, ensuring minimal voltage drop and high efficiency in electrical circuits.

The SWPR-001T-P025 model is designed for use with JWPF connector housings and is suitable for wire-to-wire connection applications commonly found in electronic components, power connectors, and industrial automation systems.

Assembly and maintenance are facilitated by compatibility with recommended crimp hand tools and extraction tools, ensuring precise and secure terminations. Constructed from copper alloy for superior conductivity. Contact surface plated with tin to prevent corrosion.

Supports wire sizes 26 AWG to 22 AWG. Rated current capacity of 3A for reliable operation. Wide operating temperature range from -55°C to 85°C. Low contact resistance at a maximum of 15mΩ. Optimized for crimp termination to JWPF connector housings.

Manufactured in Japan to meet high-quality standards.

This female crimp terminal is an essential component for electronic assembly, industrial automation, and power distribution requiring secure, efficient wire connections. Browse EnvMart’s extensive range of JST components for complementary products and accessories to enhance your wiring systems.

Explore more products in our Crimp Contact category.
