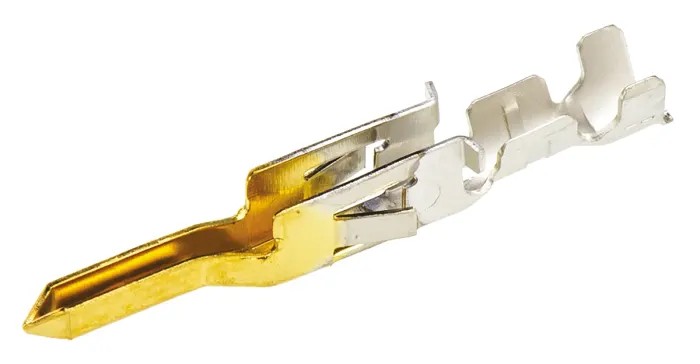

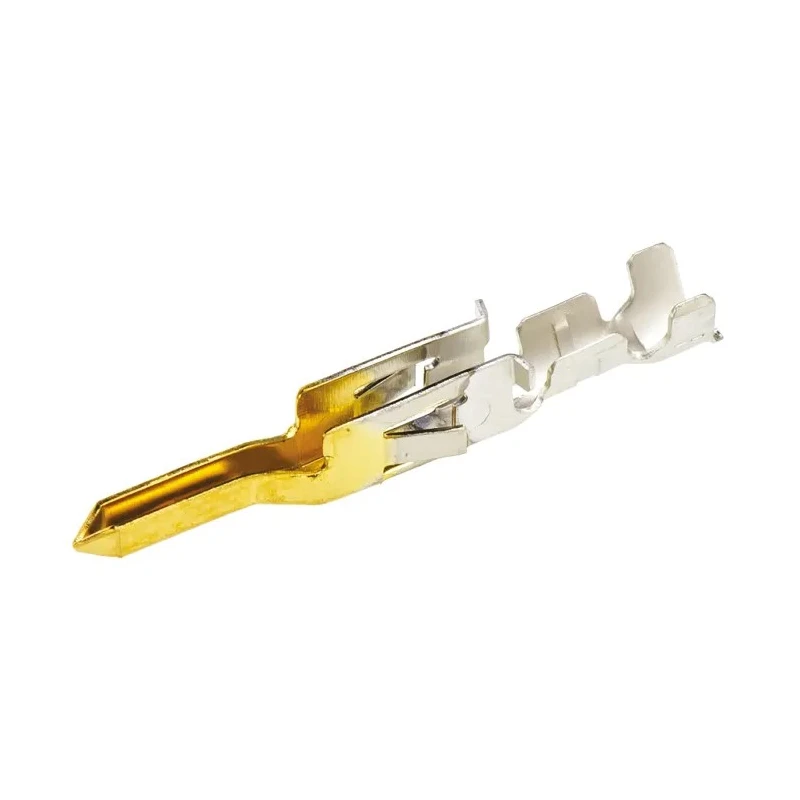

Molex 5558 Series Male Crimp Terminal 9A Current, 28 to 22 AWG Wire Size 39-00-0432
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with Mini-Fit Jr Connector Housing for secure PCB integration.
- Constructed from gold-plated brass for excellent conductivity and corrosion resistance.
- Features locking tangs ensuring stable and secure connections.
- Maximum voltage rating of 600 V suitable for demanding electrical applications.
- Operates reliably within a temperature range of -40°C to 105°C.
- Low maximum contact resistance of 20 milliohms ensures minimal signal loss.
- Ideal for automotive, medical, telecommunications, and industrial applications.
- RoHS compliant, ensuring environmental safety standards.
Product Description
Molex 5558 Series Male Crimp Terminal model 39-00-0432 is engineered to deliver dependable and efficient electrical contact for wire sizes ranging from 28 AWG (0.08 mm² minimum) to 22 AWG (0.35 mm² maximum). Designed to fit Mini-Fit Jr connector housings, this crimp terminal supports a current rating of 9 amps and can handle voltages up to 600 volts, making it suitable for a variety of demanding industrial and commercial applications.
The terminal is made from brass with a gold plating, which provides excellent electrical conductivity along with high resistance to corrosion and wear, ensuring long-lasting and stable connections. The design incorporates locking tangs for secure retention within connector housings, preventing accidental disconnections and ensuring consistent signal transmission.
This crimp terminal operates reliably across a wide temperature range from -40°C to 105°C and meets the RoHS environmental compliance standards. Its low contact resistance of 20 milliohms helps maintain signal integrity by minimizing loss. The product finds widespread use in sectors such as automotive, medical devices, telecommunications, industrial automation, and consumer electronics.
As part of the Molex Mini-Fit Jr. series, these terminals support versatile connection solutions for printed circuit boards (PCBs) and power supplies, offering multiple points of contact for improved current carrying capacity.
Compatible with Mini-Fit Jr connector housings for ease of installation. Gold-plated brass construction offers superior conductivity and corrosion resistance. Locking tangs ensure a stable and secure connection in the housing.
High voltage rating of 600V for demanding electrical environments. Wide operating temperature range from -40°C to 105°C. Low maximum contact resistance of 20mΩ for reliable signal transmission. RoHS compliant for environmentally safe applications.
This Molex 5558 Series Male Crimp Terminal is suitable for applications in medical devices, automotive equipment, telecommunications, industrial automation, and consumer electronics. It is an excellent choice for setting up reliable PCB connections in electrical equipment requiring secure and robust terminal contacts.
Explore more products within the Electronics Components category at EnvMart for your industrial and commercial requirements.
Explore more products in our Crimp Contact category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current rating of 9 amps.
It is designed for wire sizes ranging from 28 AWG (0.08 mm² minimum) to 22 AWG (0.35 mm² maximum).
The maximum voltage rating is 600 volts, making it suitable for demanding electrical applications.
The terminal is constructed from brass and features gold plating for excellent conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
It features locking tangs that ensure a stable and secure connection within the housing, preventing accidental disconnections.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The maximum contact resistance is 20 milliohms, which helps minimize signal loss.
It is suitable for applications in automotive, medical devices, telecommunications, industrial automation, and consumer electronics.
This model uses a crimp termination type for secure electrical connections.
The country of origin for this product is India.
This crimp terminal belongs to the Molex 5558 series.
