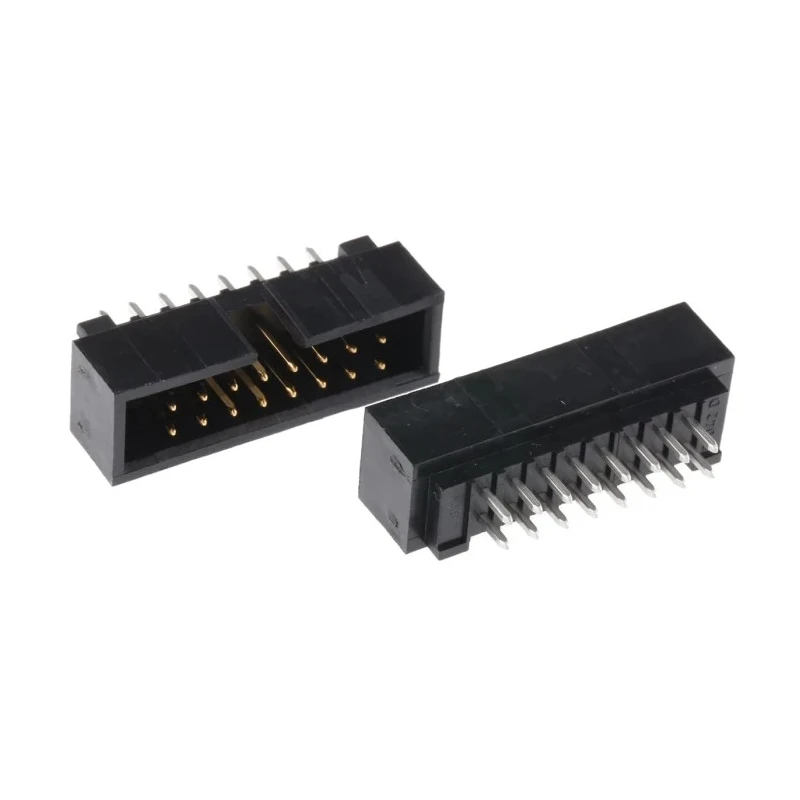

Molex C-Grid Series Straight Through Hole PCB Header, 16 Contact, 2.54 mm Pitch, 2 Row, Shrouded 70246-1604

Molex 70246-1604 is a C-Grid Series straight through hole PCB header designed for robust electronic connections. Featuring 16 male contacts arranged in 2 rows with a 2.54 mm pitch, this shrouded header ensures secure mating and reliable signal integrity for demanding industrial and electronic applications.

The contacts are made from phosphor bronze, plated with gold to provide excellent conductivity and corrosion resistance. It supports a current of 2.5A and voltage up to 250V, making it suitable for a variety of low-voltage electronic circuit board assemblies.

Mounted via through-hole soldering with a tail pin length of 3.43 mm, this vertical DIL header fits standard PCB designs. Its operating temperature range from -40°C to 120°C ensures stable performance in harsh environmental conditions. The header mates with Molex 70058 series terminals, facilitating easy assembly and maintenance.

Suitable for use in industrial electronics, automation control, and power equipment, this Molex PCB header provides a compact, durable solution for wire-to-board connections. The shrouded connector housing enhances protection against accidental damage and misalignment during insertion.

Phosphor bronze contact material with gold plating for durability and conductivity. Through hole solder mount type for strong mechanical and electrical connection. 16 contacts arranged in 2 rows with 2.54 mm pitch. Voltage rating of 250V and current rating of 2.5A.

Operation temperature range from -40°C to 120°C for reliable performance. Vertical DIL configuration for standard PCB applications. Compatible with Molex 70058 series terminals. Shrouded design for protection and alignment ease.
