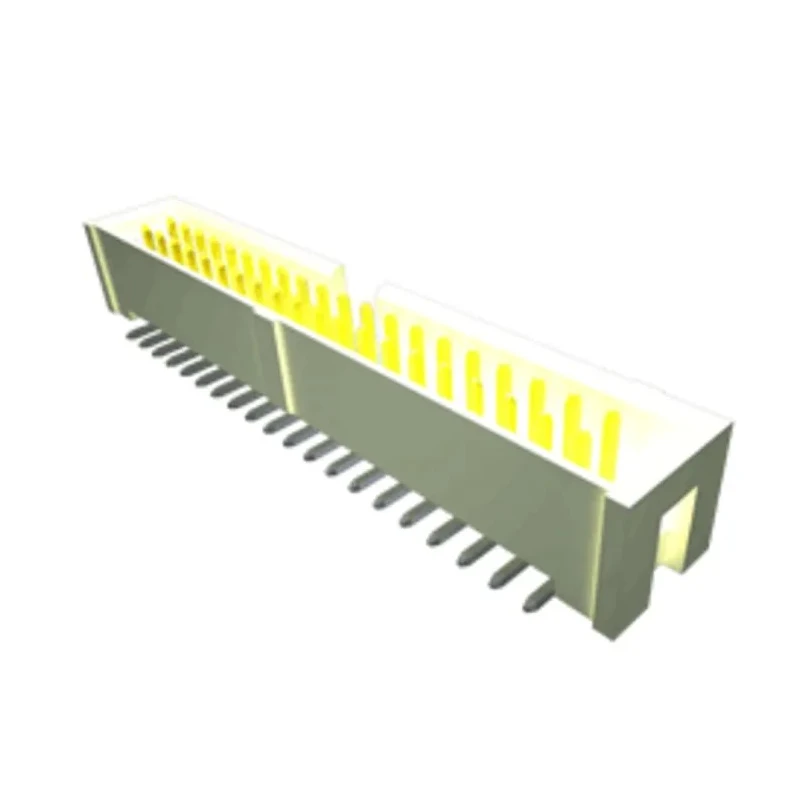

Samtec HTST Series Straight Surface PCB Header 10 Contact 2.54 mm Pitch 2 Row Shrouded HTST-105-01-SM-DV

Samtec HTST-105-01-SM-DV is a high-quality PCB header from the HTST Series, designed with a straight surface mount orientation. It features 10 male contacts arranged in 2 rows with a 2.54 mm pitch, perfect for wire-to-board connections in advanced electronic assemblies.

The connector’s housing is constructed from liquid crystal polymer, providing excellent thermal and mechanical stability. Contacts are made from phosphor bronze and plated with gold to ensure low resistance and robust signal integrity. The shrouded design offers protection against accidental mating errors, improving reliability.

Operating voltage of 1kV and current rating of 3.4 amps make this connector suitable for demanding industrial, manufacturing, and electronic instrumentation environments. It withstands a wide temperature range from -55°C to 125°C, supporting both low-temperature and high-temperature applications.

This PCB header uses a solder termination type, facilitating secure mounting on PCB boards. Typical applications include power connectors, signal headers, instrumentation, and control systems.

The connector has a 2.54 mm pitch and 2 row configuration. Contact material is phosphor bronze with gold plating for high conductivity. The housing material is liquid crystal polymer for durability and temperature resistance.

Current rating is 3.4A with voltage rating of 1kV. Operating temperature range from -55°C to 125°C. Shrouded design for protection and correct orientation. Termination type is solder with male contact gender.

This product is manufactured in the United States and adheres to industrial standards, suited for electronics manufacturing, test equipment, telecommunications, and power distribution applications. Browse more PCB Headers and connectors on EnvMart for your project needs.
