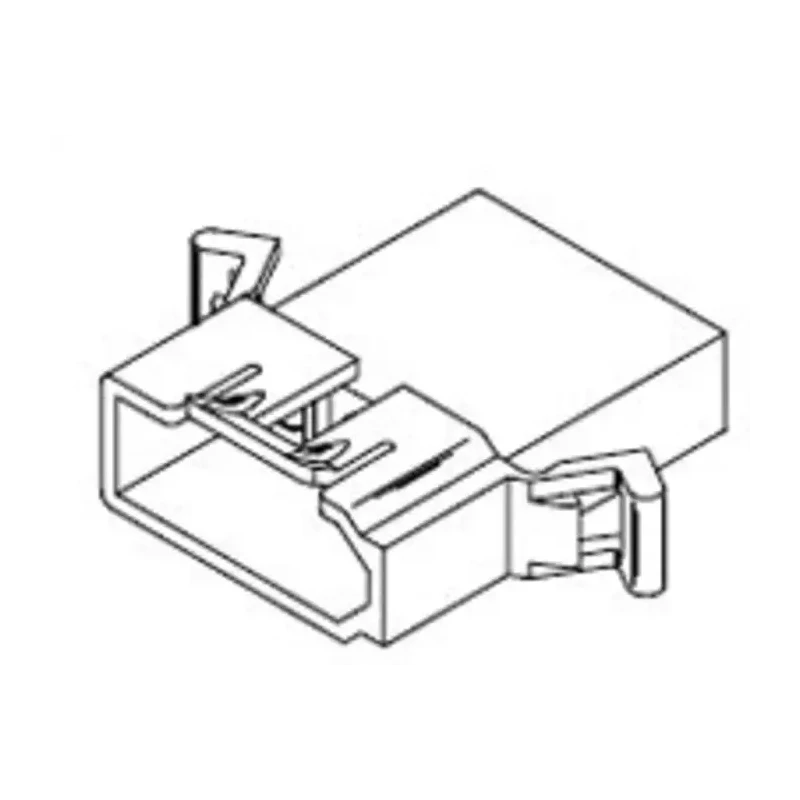

Molex Standard .093-Inch Male Connector Housing, 6.7 mm Pitch, 2 Way, 1 Row Straight 39-03-6020
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 20.2mm |
| Width | 13.15mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Standard .093" |
| Number of Rows | 1 |
| Pitch | 6.7mm |
| For Use With | 2.36 mm Dia. Standard 0.093 in Pin & Socket Plug |
| Number of Contacts | 2 |
| Connector Gender | Male |
Key Features
- Manufactured from durable 94V-2 nylon for safety and reliability.
- Designed for use with 2.36 mm diameter standard .093 inch pin and socket plug terminals.
- Features positive locking and fully isolated terminals to ensure secure mating.
- Polarized construction prevents incorrect connections.
- Suitable for medium power applications like consumer electronics and data communications.
- Connector gender is male with one row and two contacts for typical configurations.
- Intended for cable mounting with straight orientation for easy wire routing.
- Country of origin is Japan, ensuring quality manufacturing standards.
Product Description
Molex 39-03-6020 male connector housing, part of the Standard .093 inch series, features a 6.7 mm pitch and comes with 2 contacts arranged in 1 row. This connector housing is constructed from 94V-2 grade nylon, providing robust electrical insulation and durability. It is designed for cable mounting and has a straight orientation, making it suitable for reliable and secure connections in various electronic assemblies.
This connector housing accepts industry-standard 2.36 mm diameter .093 inch male pin and female socket terminals, with positive locking and fully isolated terminals to ensure a secure and safe connection. The polarization feature prevents incorrect mating, enhancing operational safety in medium power applications such as consumer appliances including refrigerators and microwave ovens, as well as data communications equipment like desktop computers, motherboards, and hard disk drives.
The compact dimensions of 20.2 mm length and 13.15 mm width allow for efficient PCB real estate utilization. The connector's male gender and two-contact design in a single row configuration support common wiring needs. Manufactured in Japan, this component meets high quality and reliability standards for industrial and commercial use.
Manufactured from flame retardant 94V-2 nylon material. Standard .093 inch pitch of 6.7 mm for terminal spacing. Positive locking and fully isolated terminals for enhanced connection safety. Polarized housing to prevent mismating during installation.
Compatible with 2.36 mm diameter pin and socket plugs. Designed with cable mount type and straight orientation. Dimensions: length 20.2 mm, width 13.15 mm. Ideal for use in electrical, electronic, and data communication devices.
Originates from Japan assuring manufacturing quality.
This Molex Connector Housing is a reliable choice for industrial, electronic manufacturing, HVAC systems, and consumer electronics requiring robust, precise connector solutions. Explore more connectors and wire housings in the Electronics & Electricals category for optimized component compatibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 6.7 mm, which corresponds to the standard .093 inch series.
This connector housing has a length of 20.2 mm and a width of 13.15 mm.
The connector is male with two contacts arranged in a single row configuration.
It is designed to accept 2.36 mm diameter standard .093 inch pin and socket plug terminals.
The connector housing is manufactured from 94V-2 nylon, which provides robust electrical insulation.
The connector housing has a straight orientation, which facilitates easy wire routing during installation.
It features positive locking and fully isolated terminals to ensure secure mating and prevent incorrect connections.
This model is suitable for medium power applications, including consumer electronics and data communications equipment.
The connector housing is manufactured in Japan, ensuring adherence to high quality and reliability standards.
It is designed for cable mounting, allowing for secure and reliable connections in various electronic assemblies.
This connector housing has two contacts, which are arranged in a single row.
This connector housing is part of the Standard .093 inch series, which is commonly used in various electronic applications.
