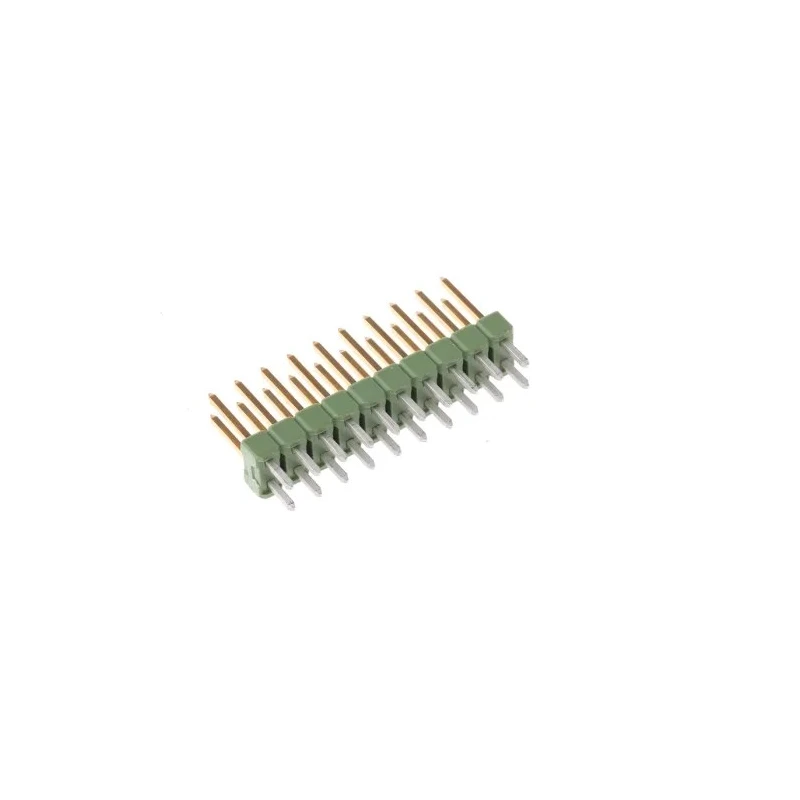

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row 1-826632-0

TE Connectivity 1-826632-0 AMPMODU MOD II Series straight through hole pin header is a high-quality PCB connector designed for reliable and efficient electrical connections. Featuring 20 male contacts arranged in two rows with a 2.54 mm pitch, this unshrouded pin header supports board-to-board and wire-to-board connector systems. Its polybutylene terephthalate housing offers durability and resistance to environmental stresses while brass contacts with gold plating ensure excellent conductivity and corrosion resistance.

The connector supports a current rating of 3 amperes and a voltage rating of 750 volts, making it suitable for a broad range of electrical and electronic applications. The through-hole mounting style guarantees stable mechanical fixation on the PCB. It operates reliably within a temperature range from -65°C to 105°C, accommodating challenging conditions in industrial and automotive settings.

Tail pin length of 3.2 mm and mating pin length of 6.7 mm provide secure solder connections and effective mating with complementary connectors. The unshrouded design allows easy customization by breaking the header into required sizes, delivering installation efficiency and cost savings. These attributes make it ideal for usage in automotive controls, industrial machinery, test equipment, computers, telecommunications, medical instruments, storage, and appliances.

The 20 contact pins provide reliable electrical connectivity. Pin pitch of 2.54 mm ensures compatibility with standard PCB layouts. Two-row, unshrouded configuration allows flexibility in installation. Constructed from durable polybutylene terephthalate housing and brass contacts plated with gold.

Supports a current rating of 3A and voltage up to 750V for robust performance. Straight orientation and through-hole mounting optimize mechanical stability. Terminated by solder for secure and lasting connections. Operating temperature range from -65°C up to 105°C suitable for harsh environments.

Tail pin length of 3.2 mm and mating pin length of 6.7 mm provide adequate connection length. Ideal for applications in automotive controls, industrial equipment, telecommunications, and medical instruments.

Select TE Connectivity AMPMODU MOD II PCB Headers for quality, durability, and versatility in your electronic systems. Explore EnvMart for more connectors and PCB components to support your industrial, laboratory, and manufacturing needs.
