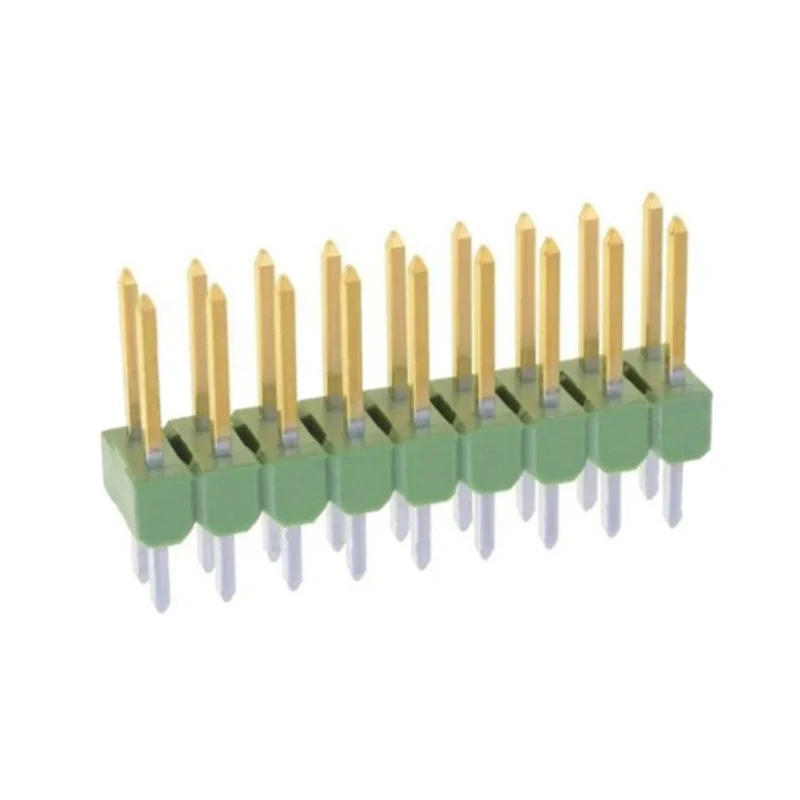

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 18 Contacts 2.54 mm Pitch 2 Row Unshrouded 826632-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826632-9 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- This pin header features a 2.54 mm pitch and 2-row configuration for versatile board-to-board and wire-to-board connections.
- The housing is made of durable Polybutylene Terephthalate providing excellent insulation and mechanical stability.
- Brass contacts with gold plating ensure reliable electrical connectivity and corrosion resistance.
- Rated for 3A current and 750V voltage, suitable for industrial and electronic applications.
- Designed for through-hole mounting with male contact gender and solder termination type.
- Operating temperature range from -65°C to 105°C supports harsh environmental conditions.
- Mating pin length of 6.7 mm and tail pin length of 3.2 mm offer reliable mechanical fit and solder joint integrity.
- Unshrouded design allows easy customization by breaking to required size for installation efficiency.
Product Description
TE Connectivity 826632-9 AMPMODU MOD II Series Straight Through Hole Pin Header is a precision-engineered PCB connector featuring 18 contacts spaced at a standard 2.54 mm pitch arranged in 2 rows. The unshrouded breakaway pin header allows users to customize the length by breaking off pins as per their project requirements, enhancing versatility and labor-saving installation.
The housing material is Polybutylene Terephthalate, known for its excellent mechanical strength and insulation properties, making it ideal for demanding electronic environments. The brass contacts plated with gold ensure low contact resistance, superior conductivity, and resistance to corrosion, enabling long-lasting reliability.
This connector supports a current rating of 3 amperes and a maximum operating voltage of 750 volts, making it suitable for various industrial and electronic applications, including automotive control systems, telecommunications, testing equipment, and medical instrumentation.
The product is designed for through-hole mounting with a straight orientation and male contact gender, using a solder termination type for secure connections. It performs reliably within operating temperatures ranging from -65°C to 105°C, suitable for harsh environmental conditions.
This pin header allows installation of all solder posts simultaneously, reducing assembly time and labor costs. The 2.54 mm row pitch conforms to common PCB layout standards, promoting compatibility in system designs. Applications extend to automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage devices, and appliances.
The connector system supports both board-to-board and wire-to-board interfacing requirements. The unshrouded design enhances adaptability for custom PCB configurations where precise pin counts are required.
TE Connectivity’s AMPMODU Mod II 2.54 mm Interconnect System is recognized for its reliability and economical performance in automation and control applications globally. The product's compact design facilitates efficient system integration in compact electronic assemblies.
Explore EnvMart's extensive collections of PCB Headers and connectors for quality solutions tailored to your circuit board interconnection needs.
