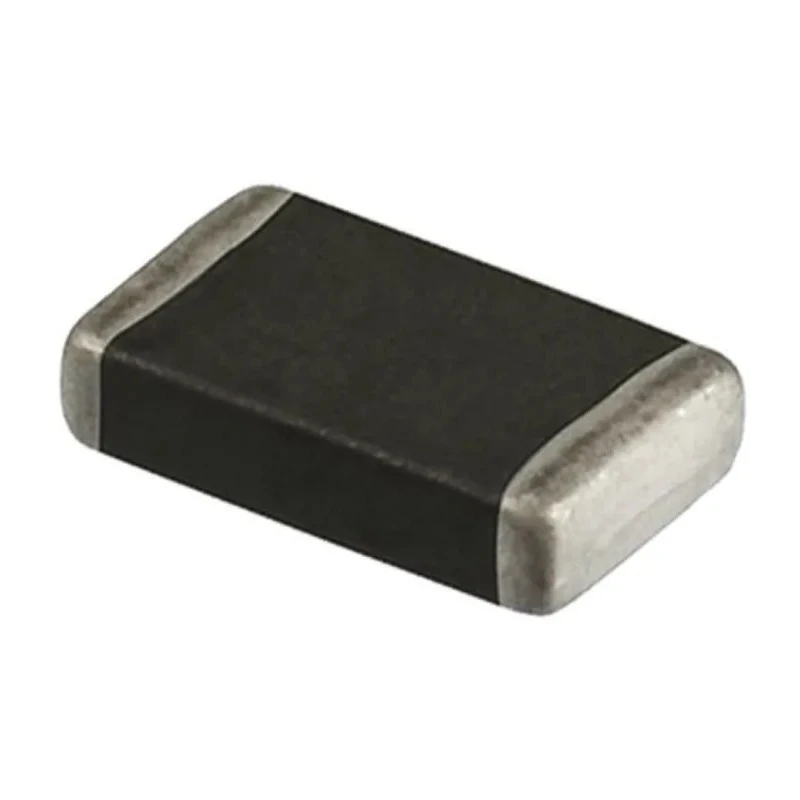

Wurth Elektronik WE-VS SMD Power Varistor 550 pF Capacitance 1 A Clamping Voltage 85 V 47 V 1206 82541300

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-VS SMD Power Varistor 550 pF Capacitance 1 A Clamping Voltage 85 V 47 V 1206 82541300

Name: Wurth Elektronik WE-VS SMD Power Varistor 550 pF Capacitance 1 A Clamping Voltage 85 V 47 V 1206 82541300
Brand: Wurth Elektronik
SKU: 205738
Price: 1.15 USD
Availability: InStock



Category Clamp Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Brand	Wurth Elektronik
THICKNESS	1.5mm
Length	3.2mm
Model	82541300
Depth	1.6mm
Packaging	Reel
Mount Type	Surface
Series	WE-VS
Energy Rating	1.1J
Maximum Operating Temperature	85°C
Capacitance	550pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	38V dc
Standards/Approvals	IEC 61000-4-5
Package/Case	1206
Termination Style	Silver/Nickel/Tin
Maximum AC Voltage	30V ac
Clamping Voltage VC	85V
Clamping Current	1A
Maximum Surge Current	200A
Varistor Voltage	47 V

Key Features

Offers excellent absorption immediately after surge impulse.
Suitable for operating temperatures from -40°C to +85°C.
Nickel barrier enables lead-free soldering.
Rated for a maximum surge current of 200 A peak.
Complies with IEC 61000-4-5 surge protection standards.
Compact 3.2 mm length, 1.5 mm thickness, and 1.6 mm depth dimension.
Termination style includes Silver/Nickel/Tin for reliable connections.
Energy rating of 1.1 Joules ensures durability in harsh environments.

Product Description

Wurth Elektronik 82541300 WE-VS Varistor is a high-quality SMD power varistor designed for efficient surge protection in electronic circuits. Featuring a capacitance of 550 pF and a varistor voltage of 47 V, it clamps voltage spikes at 85 V to safeguard sensitive components effectively.

This varistor is packaged in a compact 1206 case with dimensions 3.2 mm x 1.5 mm x 1.6 mm, making it suitable for high-density PCB designs. It supports a maximum surge current of 200 A, providing robust transient voltage suppression capabilities for reliable circuit protection.

The device operates reliably across a temperature range of -40°C to +85°C, making it suitable for a wide variety of industrial, commercial, and consumer electronics applications. The nickel barrier termination ensures lead-free soldering compliance, supporting environmentally responsible manufacturing practices.

Compliant with IEC 61000-4-5 standards for surge protection and EN 61000-4-2 and EN 61000-4-4 for ESD and burst protection, this varistor is engineered to deliver consistent performance against voltage spikes and electrostatic discharge events.

Immediate absorption following surge impulses for normal mode operation. Stable clamping voltage at 85 V safeguarding circuit components. Compact surface mount packaging ideal for automated assembly. Resistance to harsh environmental and electrical conditions.

Lead-free soldering compatible with nickel barrier terminals. Energy rating of 1.1 Joules supports intermittent high energy pulses. Enhanced safety compliance for industrial and consumer electronic devices. Provides ESD and burst protection in compliance with established international standards.

Optimized for use in power supply circuits and surge protector modules. Supports extended operating temperature range for versatility.

Ideal for engineers and designers requiring reliable surge protection components in electronics manufacturing, the Wurth Elektronik WE-VS 82541300 varistor balances compact size with effective Clamping capabilities. Browse additional Wurth Elektronik components at EnvMart for complementary passive components and surge protection solutions.
