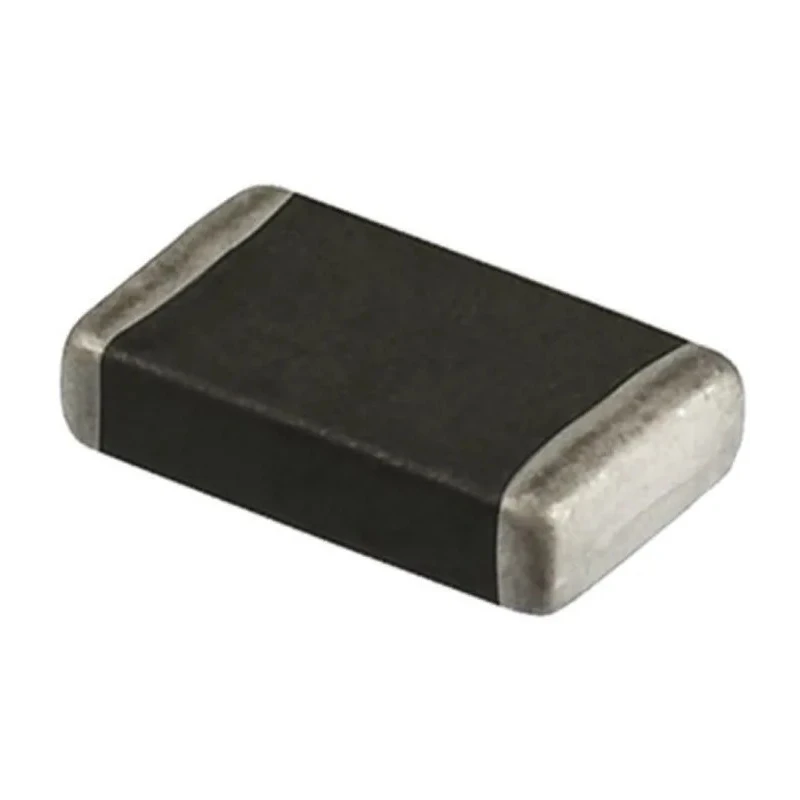

Wurth Elektronik Surface Mount Power Varistor WE-VS Series 1.18 nF Capacitance 1 A Clamping Current 20 V Clamping 82550060

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Surface Mount Power Varistor WE-VS Series 1.18 nF Capacitance 1 A Clamping Current 20 V Clamping 82550060

Name: Wurth Elektronik Surface Mount Power Varistor WE-VS Series 1.18 nF Capacitance 1 A Clamping Current 20 V Clamping 82550060
Brand: Wurth Elektronik
SKU: 205731
Price: 0.96 USD
Availability: InStock



Category Clamp Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
THICKNESS	1.25mm
Length	2mm
Model	82550060
Depth	1.25mm
Packaging	Reel
Mount Type	Surface
Series	WE-VS
Energy Rating	0.1J
Maximum Operating Temperature	85°C
Capacitance	1.18nF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	9V dc
Standards/Approvals	RoHS, IEC61000-4-5
Package/Case	0805
Termination Style	Silver/Nickel/Tin
Lead Pitch	0.3mm
Maximum AC Voltage	6V ac
Clamping Voltage VC	20V
Clamping Current	1A
Maximum Surge Current	80A
Varistor Voltage	12 V

Key Features

Designed for surge and ESD protection with fast response.
Rated for maximum AC voltage of 6 V and DC voltage of 9 V.
Energy rating of 0.1 J suitable for transient voltage suppression.
Operating temperature range from -40 °C to +85 °C ensuring reliability.
Tin/Nickel/Silver termination for lead-free soldering compatibility.
SMD package size 0805 (2mm length, 1.25mm thickness and depth).
Complies with RoHS and IEC61000-4-5 standards for surge protection.
Manufactured in Taiwan, Province Of China.

Product Description

Wurth Elektronik model 82550060 is a surface-mount power varistor from the WE-VS series designed to provide surge and transient voltage suppression in electronic circuits. Featuring a capacitance of 1.18 nF and a clamping current rating of 1 A with a Clamping voltage of 20 V, this varistor offers excellent absorption and instant reaction to surge impulses, returning to normal operation immediately with no slip current.

It is rated for a maximum AC voltage of 6 V and maximum DC voltage of 9 V, with an energy rating of 0.1 joules, making it suitable for protection against transient faults. The device operates reliably within a wide temperature range from -40 °C to +85 °C, suitable for a variety of consumer and industrial electronics applications.

The varistor comes in an 0805 SMD package with dimensions 2 mm in length, thickness and depth of 1.25 mm, and features a silver/nickel/tin termination style compatible with lead-free soldering processes. It complies with RoHS directives and IEC61000-4-5 surge protection standards ensuring environmental compliance and product reliability.

This varistor is widely used in industrial, electronic components, power supply, and surge protection applications requiring compact size and effective transient voltage suppression. It supports assembly automation with reel packaging format.

Fast surge impulse absorption without slip current. Operating temperature guaranteed between -40 °C and +85 °C. Lead-free solder compatible silver/nickel/tin termination. Conforms to IEC and RoHS standards for safety and environment.

Compact 0805 package for space saving in printed circuit boards. Ideal for transient voltage suppression and ESD protection. Manufactured in Taiwan ensuring quality and reliability. Explore more Varistors and Surge Protection Components by Wurth Elektronik on EnvMart to meet your industrial and electronic design requirements.
