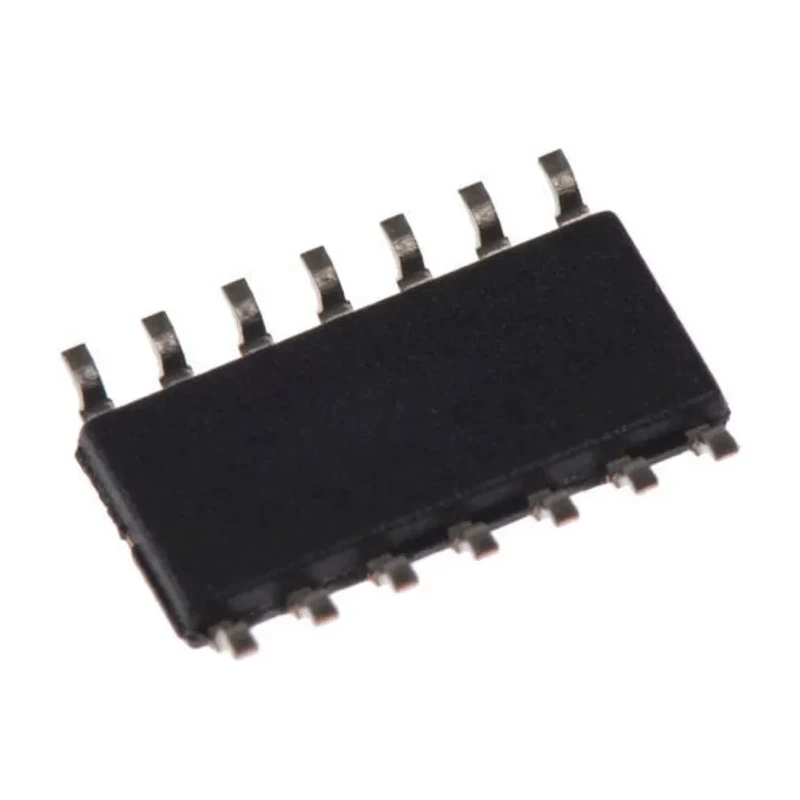

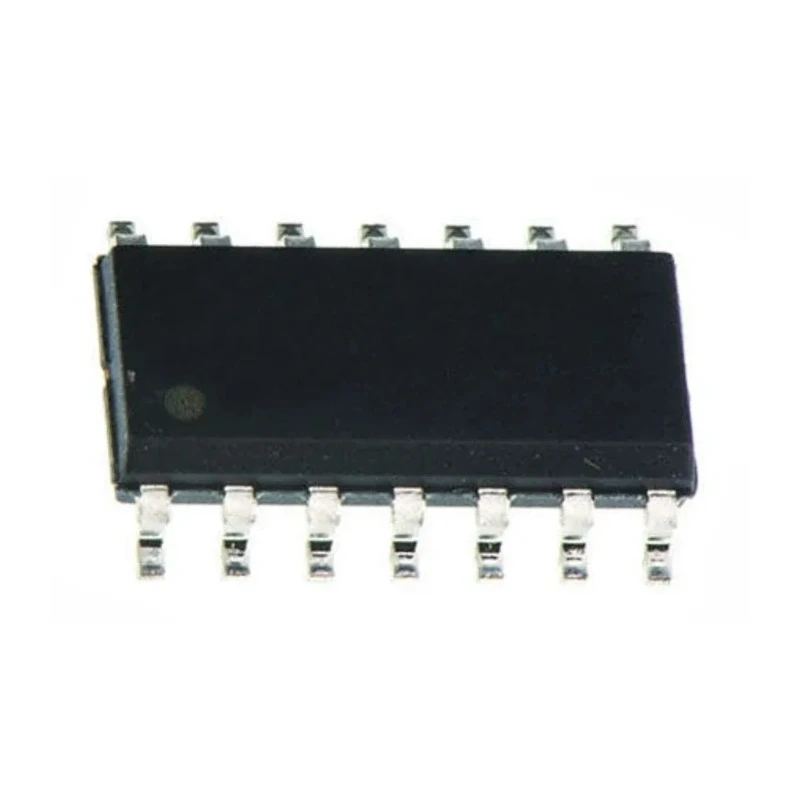

Nexperia Schmitt Trigger Input Inverter 2 Elements 14-Pin SO-8, 4.5-5.5V, AEC-Q100 74HC14D-Q100,118

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schmitt Trigger Input Inverter 2 Elements 14-Pin SO-8, 4.5-5.5V, AEC-Q100 74HC14D-Q100,118

Name: Nexperia Schmitt Trigger Input Inverter 2 Elements 14-Pin SO-8, 4.5-5.5V, AEC-Q100 74HC14D-Q100,118
Brand: Nexperia
SKU: 205703
Price: 0.2 USD
Availability: InStock



Category Inverters ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.45mm
Length	8.75mm
Model	74HC14D-Q100,118
Width	4mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	Single Ended
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements per Chip	2
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	74HC
Logic Function	Inverter Schmitt Trigger
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	190ns
Maximum Low Level Output Current	5.2mA

Key Features

This inverter features Schmitt trigger inputs for improved noise immunity.
It contains 2 inverter elements within a 14-pin SO-8 surface mount package.
Operating voltage range is 4.5 V to 5.5 V, suitable for standard CMOS applications.
The device complies with automotive standard AEC-Q100 for reliability.
Maximum propagation delay time at CL is 190ns, enabling high-speed switching.
Maximum high level output current is -5.2 mA with a low level output current of 5.2 mA.
The logic family is 74HC, with input CMOS and output CMOS compatibility.
Operating temperature ranges from -40°C to +125°C for robust industrial use.

Product Description

Nexperia 74HC14D-Q100,118 Schmitt Trigger Input Inverter 2 Elements 14-Pin SO-8 operates within a 4.5 to 5.5 volt range offering high-speed CMOS logic performance with low power consumption. It integrates two inverter elements with Schmitt trigger inputs providing enhanced noise immunity for digital signal processing.

This device belongs to the 74HC logic family, ensuring compatibility with both input and output CMOS signals. The SO-8 surface mount package includes 14 pins organized to facilitate compact PCB design layouts.

Designed to meet the strict automotive AEC-Q100 standard, this inverter supports reliable operation under harsh environmental conditions with an operating temperature range from -40°C to 125°C. It is well-suited for industrial, automotive, and embedded system applications requiring dependable signal inversion and buffering.

The maximum propagation delay time at a load capacitance is 190 nanoseconds, allowing for efficient switching speed in timing-critical applications. The device can source or sink output currents up to ±5.2 mA making it versatile for various logic level control purposes.

This inverter features Schmitt trigger inputs for improved noise immunity. Contains two inverter elements in a compact 14-pin SO-8 surface mount package. Wide operating voltage range of 4.5 V to 5.5 V suitable for CMOS logic levels.

Complies with AEC-Q100 automotive standards for industrial reliability. Low propagation delay time of 190 nanoseconds supports high-speed operation. Output currents of ±5.2 mA allow flexible interfacing with other circuits.

Operates effectively across a temperature range of -40°C to +125°C. Compact physical dimensions enable space-efficient PCB designs. Provides stable logic inversion with Schmitt trigger input characteristic. Ideal for industrial automation, automotive electronics, communication equipment, and embedded systems.

This product is a new model from the trusted Nexperia 74HC family of inverters and buffers designed for robust electronic component integration. Explore the Electronics & Electricals category at EnvMart for wide-ranging semiconductor and inverter IC products.

Explore more products in our Inverters ICs category.
