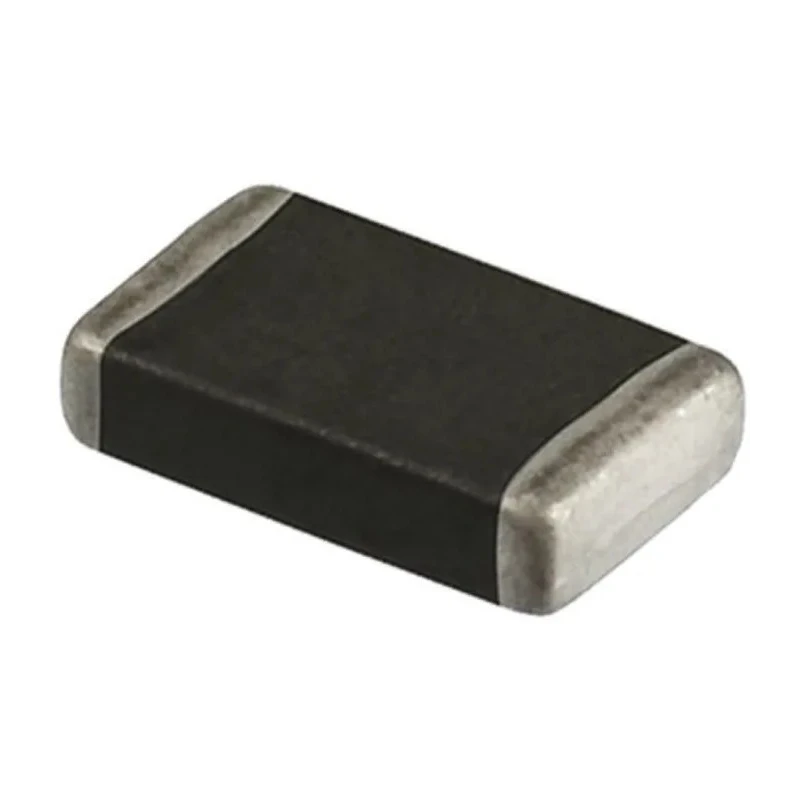

Wurth Elektronik WE-VS SMD Power Varistor 200 pF Capacitance 1 A Clamping Voltage 30 V 8 V 0603 82536040
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| THICKNESS | 0.9mm |
| Length | 1.6mm |
| Model | 82536040 |
| Depth | 0.8mm |
| Packaging | Reel |
| Mount Type | Surface |
| Series | WE-VS |
| Energy Rating | 0.1J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 200pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 5.5V dc |
| Standards/Approvals | IEC 61000-4-5 |
| Package/Case | 0603 |
| Termination Style | Silver/Nickel/Tin |
| Maximum AC Voltage | 4V ac |
| Clamping Voltage VC | 30V |
| Clamping Current | 1A |
| Maximum Surge Current | 30A |
| Varistor Voltage | 8 V |
Key Features
- Compact 0603 package suitable for high-density PCB designs.
- Capacitance of 200 pF enables effective transient voltage suppression.
- Rated clamping current of 1 A ensures robust surge protection.
- Clamping voltage of 30 V and varistor voltage of 8 V for precision protection.
- Operating temperature range from -40°C to +85°C for reliable performance.
- Silver/Nickel/Tin termination for lead-free soldering compliance.
- Energy rating of 0.1 J for small surge absorption.
- Meets IEC 61000-4-5 surge protection standards and other electrical compliance.
Product Description
Wurth Elektronik model 82536040 is a WE-VS series SMD power varistor designed for effective transient voltage suppression in electronic circuits. It has a capacitance of 200 pF and supports a clamping current of 1 A with a clamping voltage rated at 30 V, suitable for protecting sensitive components from voltage surges.
The device comes in a compact 0603 surface mount package measuring 1.6 mm in length, 0.9 mm in thickness, and 0.8 mm in depth, making it ideal for high-density PCB layouts. It features a Silver/Nickel/Tin termination style compatible with lead-free soldering processes.
This varistor operates reliably over a temperature range from -40°C to +85°C, meeting industrial operating standards. The series complies with IEC 61000-4-5 for surge protection and IEC 61000-4-2/-4 for ESD and burst protections respectively, ensuring it meets critical electronic component safety standards.
The energy rating of 0.1 J allows the varistor to absorb small transient surges efficiently, preventing damage to connected circuitry. This product is ideal for use in industrial, electronic manufacturing, power supply protection, and other commercial electronics applications requiring reliable surge protection.
Compact 0603 surface mount package for space-saving electronic assemblies. 200 pF capacitance delivers precise voltage suppression capability. 1 A clamping current rating supports handling of transient surges. 30 V clamping voltage with 8 V Varistor voltage for fine protection control.
Wide temperature operation from -40°C up to +85°C enhances reliability. Lead-free solder compatible termination ensures environmental compliance. Conforms to IEC surge, ESD, and burst protection standards for safety. Energy absorption rating of 0.1 J suitable for small to moderate surges.
Widely applicable in industrial electronics, power supply, and manufacturing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor has a capacitance of 200 pF, which enables effective transient voltage suppression.
The clamping voltage is rated at 30 V, providing precision protection for sensitive components.
It supports a maximum clamping current of 1 A, ensuring robust surge protection.
The energy rating is 0.1 J, allowing it to absorb small transient surges efficiently.
This model has dimensions of 1.6 mm in length, 0.9 mm in thickness, and 0.8 mm in depth, making it suitable for high-density PCB designs.
It operates reliably within a temperature range of -40°C to +85°C.
It features a Silver/Nickel/Tin termination style, which is compatible with lead-free soldering processes.
Yes, it meets IEC 61000-4-5 surge protection standards and other electrical compliance standards.
The maximum surge current is rated at 30 A, allowing it to withstand significant transient events.
It is widely applicable in industrial electronics, power supply protection, and electronic manufacturing sectors.
The varistor comes in a compact 0603 surface mount package, ideal for space-saving electronic assemblies.
The maximum DC voltage rating is 5.5 V, suitable for low voltage applications.
