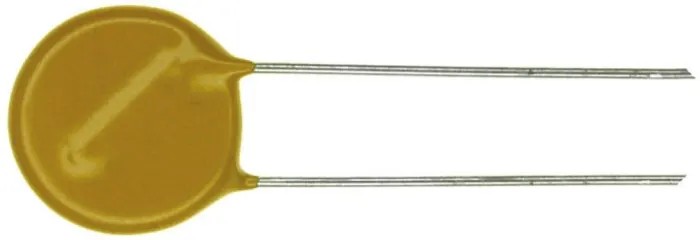

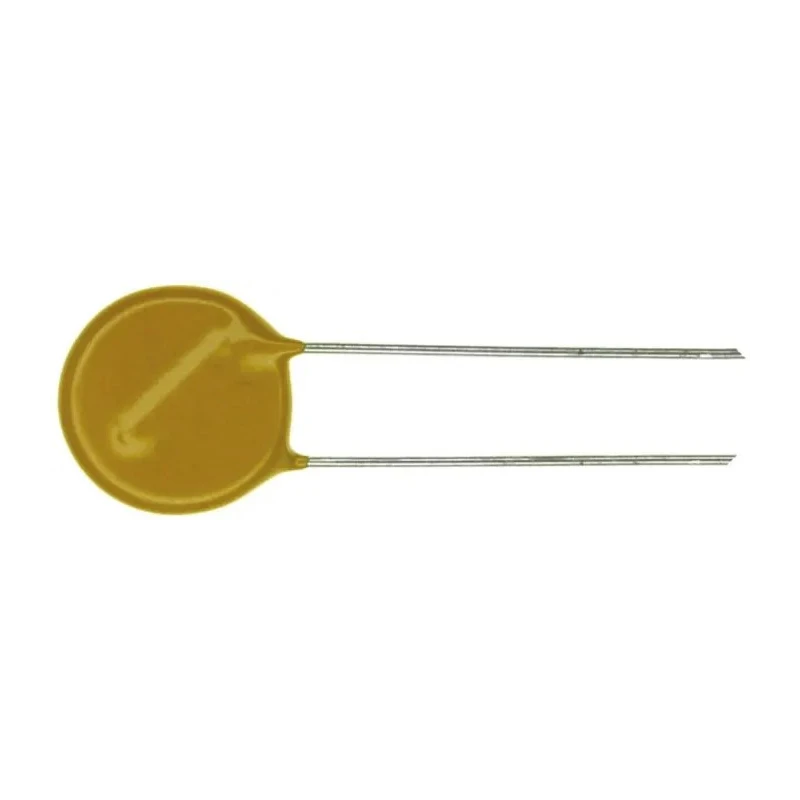

Wurth Elektronik WE-VD Varistor 1.196 nF 10 A Clamping 43 V Metal Disk Varistor 820541406

Wurth Elektronik model 820541406 is a highly reliable WE-VD series metal disk varistor offering a capacitance of 1.196 nanofarads and a clamping voltage of 43 V, designed for surge protection in sensitive electronic circuits. This varistor features a clamping current rating of 10 A and a maximum surge current of 1 kA, providing robust transient voltage suppression to safeguard delicate components.

The device operates effectively over a wide temperature range from -40°C to 125°C, making it suitable for a variety of industrial, electronic, and power management applications. Its compact size with a 16.5 mm diameter and 5 mm thickness, combined with a standard 7.5 mm lead pitch, allows for easy PCB integration in diverse system designs.

Certified by VDE, CSA, and UL, this varistor meets stringent safety and quality standards. It has an energy absorption rating of 5.4 J, enabling it to absorb voltage spikes and surges efficiently. The varistor's almost negligible energy consumption in standby mode ensures energy efficiency when not active.

This product is ideal for use in power supplies, surge suppressors, electronic instruments, and other industrial equipment requiring reliable transient voltage protection. The varistor unit’s fast response to surge impulses avoids slip current, ensuring stable operation of protected electronics.

Metal disk varistor construction with WE-VD series reliability. Clamping voltage of 43 V safeguards equipment from voltage spikes. High surge current handling capacity of 1 kiloampere. Wide temperature operating range from -40°C to 125°C.

Certified to VDE, CSA, and UL international standards for electrical components. Energy rating of 5.4 joules for effective transient absorption. Compact dimensions with 16.5 mm diameter and 5 mm thickness. 7.5 mm lead pitch suitable for secure mounting and connection.

This Wurth Elektronik varistor model 820541406 is listed under the Varistor category at EnvMart, suitable for various electronics and power protection applications. Browse EnvMart for more high-quality surge protection components by Wurth Elektronik and other trusted brands.
