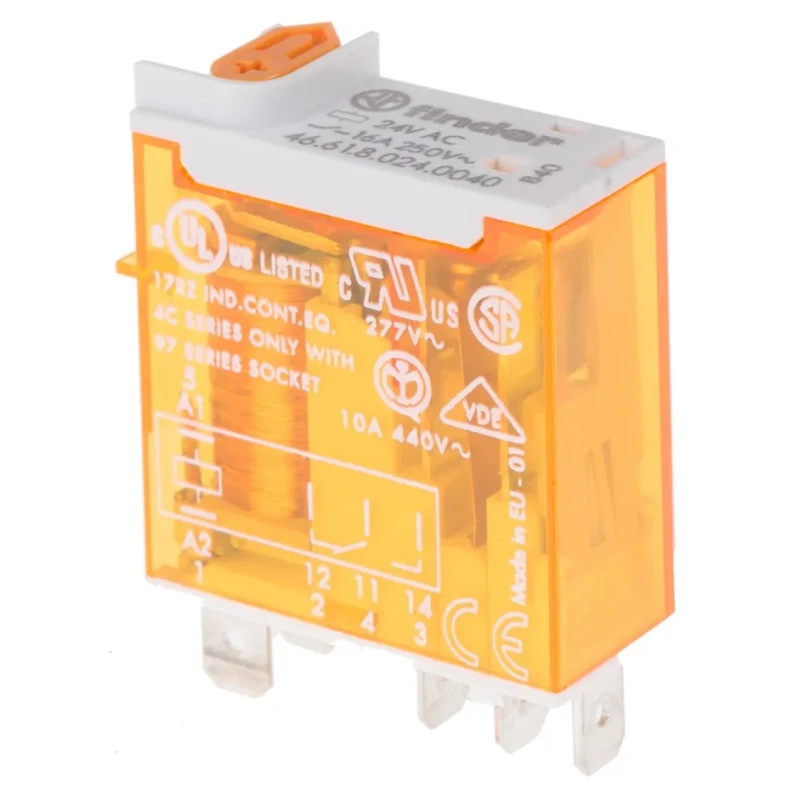

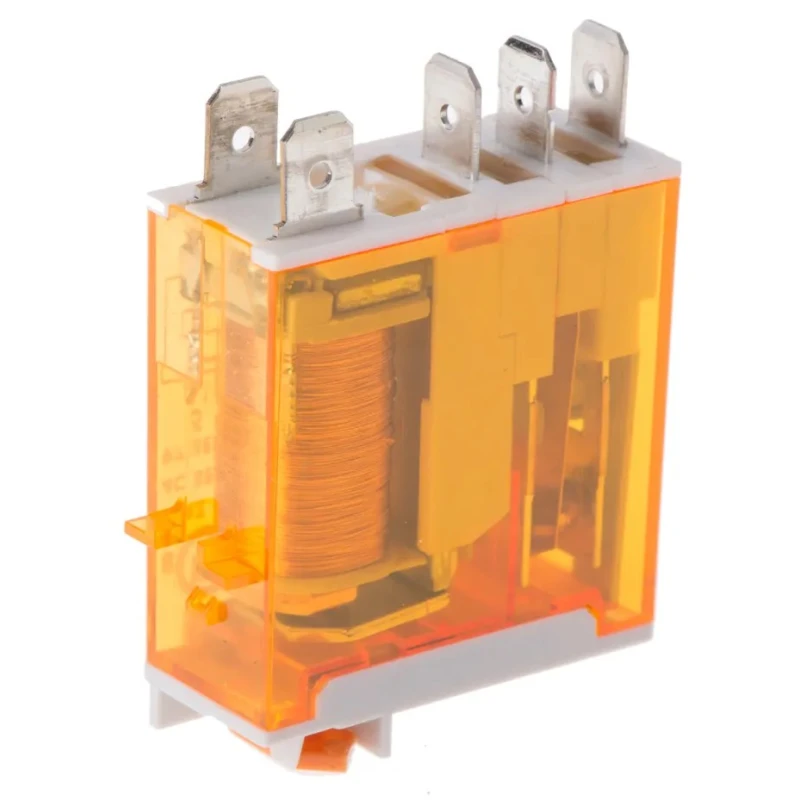

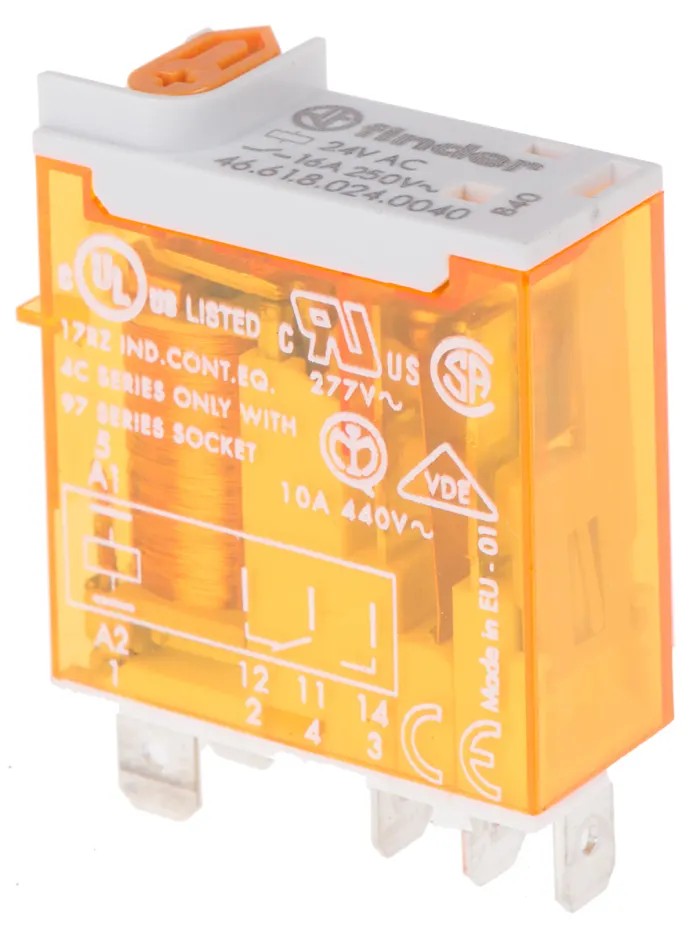

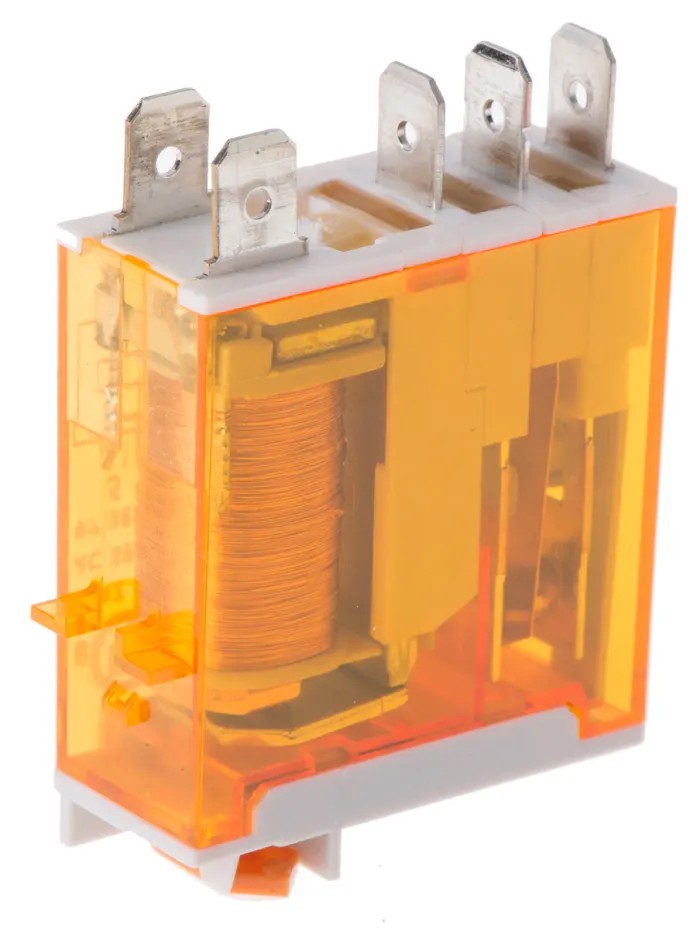

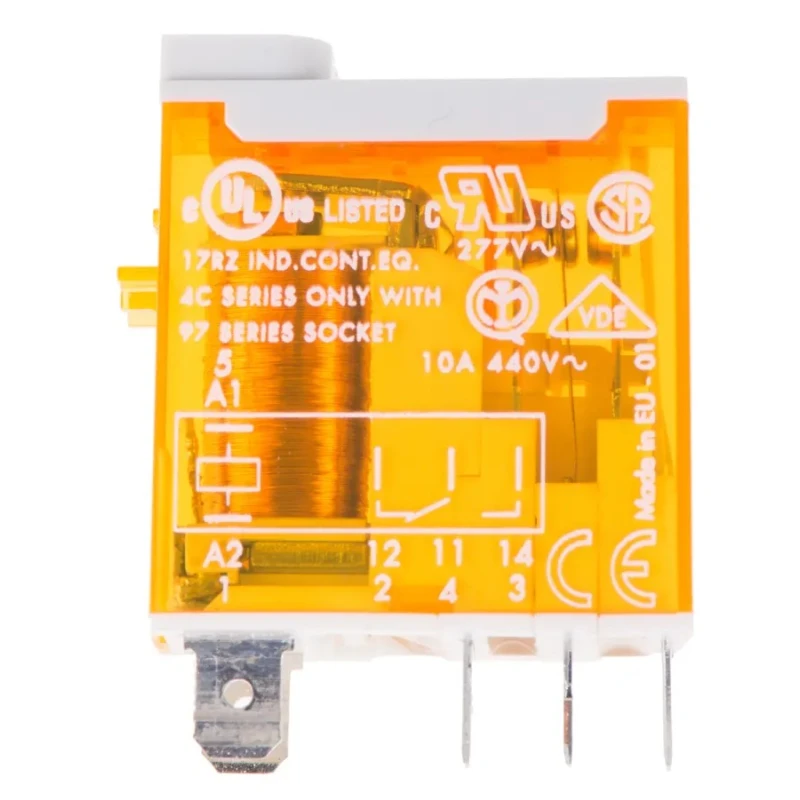

Finder Power Relay 24V AC Coil Voltage 16A Switching Current SPDT Contact Configuration 46.61.8.024.0040
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 32.8mm |
| Length | 29mm |
| Width | 12.4mm |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, RoHS, RINA, EN, EAC, cURus, CSA, CE, CCC |
| Coil Resistance | 320Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 16V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- Equipped with quick connect terminals for fast installation and maintenance.
- Operates reliably within a temperature range from -40°C to 70°C.
- Supports a maximum switching voltage of 250V AC and switching power of 4kVA.
- Maintains high isolation with 6 kV to protect connected circuits effectively.
- Constructed with silver alloy contacts for excellent conductivity and durability.
- Compact dimensions measuring 12.4mm width, 32.8mm height, and 29mm length.
- Suitable for industrial machinery, control panels, lifts, and lighting systems.
- Undergoes rigorous standards including VDE, RoHS, EN, EAC, cURus, CSA, CE, and CCC.
Product Description
Finder 46.61.8.024.0040 Power Relay features a 24V AC coil voltage and a robust SPDT contact configuration to manage a switching current of up to 16A. This relay is engineered for versatility in various industrial automation and electrical distribution applications.
The device incorporates quick connect terminals ensuring rapid and straightforward installation or replacement, thereby reducing downtime during maintenance. Its operating temperature range from -40°C to 70°C allows functionality in extremely cold and hot industrial environments.
With a maximum switching voltage rating of 250V AC and switching power capability of 4 kVA, this power relay is built to handle demanding load switching tasks effectively. A high isolation rating of 6 kV safeguards circuits from electrical interference and cross-talk.
The relay's silver alloy contacts ensure reliable conductivity and a prolonged operational lifespan, supporting up to 100,000 switching cycles. Compact size with dimensions of 12.4mm (width) x 32.8mm (height) x 29mm (length) makes it suitable for space-constrained setups.
Typical industrial applications include control panels for electrical distribution, elevator and lift control, shipyard and hoisting operations, bottling plant automation, and tunnel or road lighting systems. It complies with stringent certifications such as VDE, RoHS, RINA, EAC, cURus, CSA, CE, and CCC ensuring quality and safety.
Overall, this Finder Power Relay model 46.61.8.024.0040 offers a reliable and efficient solution for general-purpose automation needs within harsh industrial environments. Equipped with quick connect terminals for fast installation and maintenance.
Operates reliably within a temperature range from -40°C to 70°C. Supports a maximum switching voltage of 250V AC and switching power of 4kVA. Maintains high isolation with 6 kV to protect connected circuits effectively. Constructed with silver alloy contacts for excellent conductivity and durability.
Compact dimensions measuring 12.4mm width, 32.8mm height, and 29mm length. Suitable for industrial machinery, control panels, lifts, and lighting systems. Undergoes rigorous standards including VDE, RoHS, EN, EAC, cURus, CSA, CE, and CCC.
Designed for long operational life with an expected 100,000 cycles. Explore more industrial relays and automation components compatible with Finder brand to enhance your electric control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 16A.
This model operates with a coil voltage of 24V AC.
It operates reliably within a temperature range from -40°C to 70°C.
The dimensions are 12.4mm in width, 32.8mm in height, and 29mm in length.
It features a Single Pole Double Throw (SPDT) contact configuration.
The maximum switching voltage is 250V AC.
The contacts are constructed with silver alloy for excellent conductivity.
It is equipped with quick connect terminals for fast installation and maintenance.
It is designed for a long operational life with an expected lifespan of up to 100,000 switching cycles.
It complies with several standards including VDE, RoHS, EN, EAC, cURus, CSA, CE, and CCC.
The maximum switching power capability is 4 kVA.
It is suitable for industrial machinery, control panels, lifts, and lighting systems.
