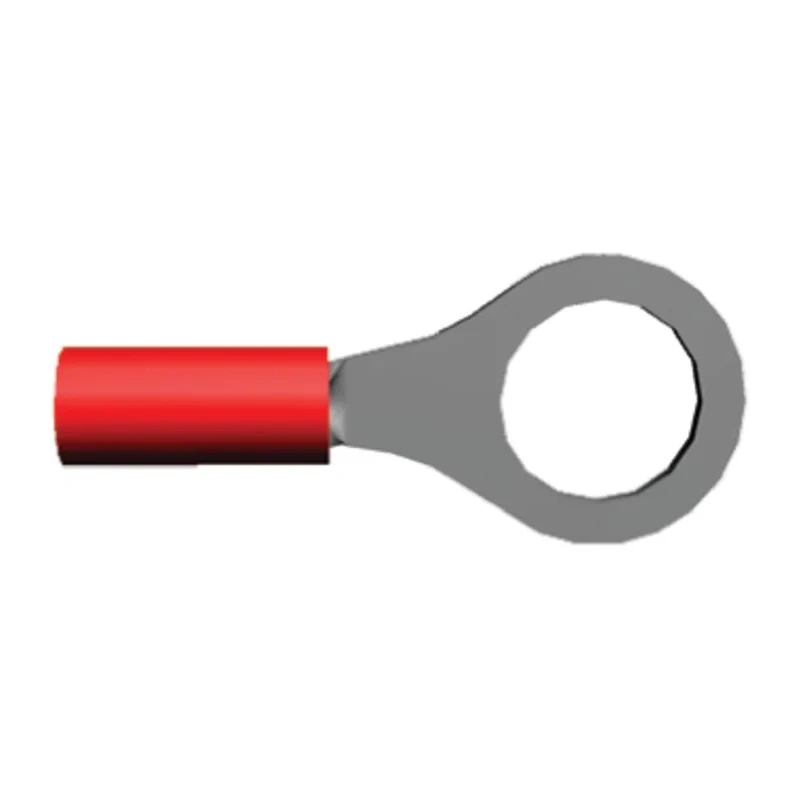

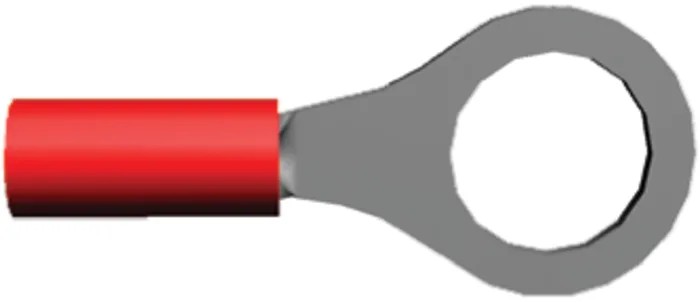

TE Connectivity PIDG Insulated Ring Terminal M10 Stud Size 22 AWG to 16 AWG Wire Size Red 320573
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 320573 |
| Insulation | Insulated |
| Overall Length | 30.94mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 13.49mm |
| Inner Ring Diameter | 9.91mm |
| Stud Size | M10 |
Key Features
- Constructed with high conductivity copper body ensuring optimal electrical performance.
- Features serrations inside the barrel for maximum contact and tensile strength after crimping.
- Insulation provided by a color-coded nylon sleeve for easy wire size identification.
- Includes a copper sleeve for improved wire insulation support and prevention of wire fraying.
- Funnelled wire entry design allows easy wire insertion and speed in production.
- Suitable for various wiring applications including instruments, lighting, power supplies, and transportation.
- Meets RoHS standards ensuring environmental compliance.
- Operating temperature up to 105°C suitable for demanding industrial environments.
Product Description
TE Connectivity 320573 PIDG Insulated Ring Terminal with M10 stud size is designed for reliable electrical and electronic connections within a wide range of industries including industrial, automotive, aerospace, and manufacturing sectors. This ring terminal supports wire sizes from 22 AWG to 16 AWG and is color-coded red with a nylon insulation sleeve for easy wire size and tooling identification. The copper body offers excellent conductivity along with a copper sleeve that enhances insulation support and prevents wire strand fraying.
The barrel incorporates serrations to maximize contact integrity and tensile strength post-crimping. The funnelled wire entry facilitates fast wire insertion, improving assembly efficiency. It offers dependable performance under high operating temperatures up to 105°C, compliant with RoHS environmental standards.
This Ring Terminal is suitable for applications such as instrument control wiring, lighting systems, power supply connections, panel boxes, transportation equipment, lifting devices, motors, aerospace wiring, and household appliances, making it highly versatile in electrical terminals and splicing needs.
High conductivity copper construction ensures excellent electrical performance. Color coded nylon insulation sleeve identifies wire size quickly. Copper sleeve around the barrel improves insulation integrity and prevents wire fraying.
Serrated barrel provides superior contact and tensile strength. Funnelled wire entry promotes fast and reliable wire insertion. Meets stringent RoHS environmental standards. Supports operating temperatures up to 105°C. Ideal for various industrial and electrical wiring applications.
The included specifications detail exact dimensions and operating parameters for precise engineering use. Explore related electrical connectors and terminals at EnvMart for all your wiring and splicing requirements.
