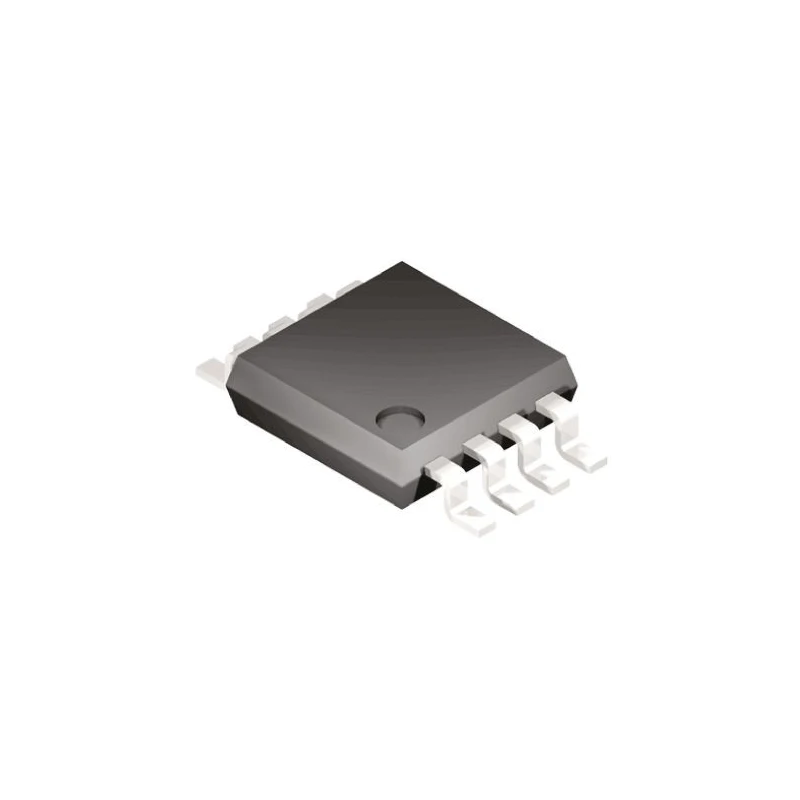

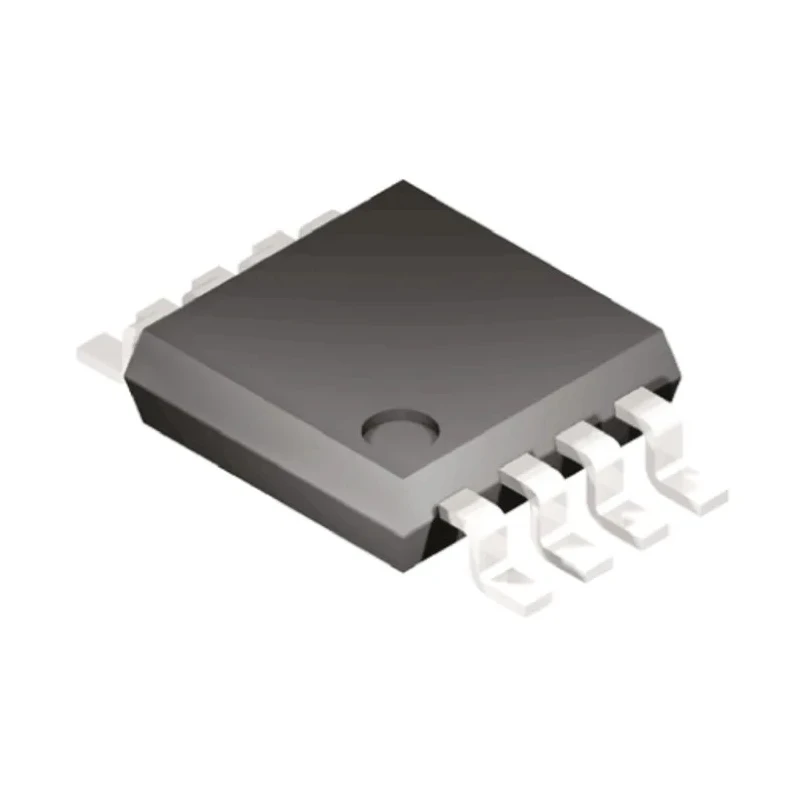

DiodesZetex LED Driver IC, 2.7V DC, 5.5 V DC, 40 mA Output, 1.5W, 8-Pin MSOP PAM2841SR

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex LED Driver IC, 2.7V DC, 5.5 V DC, 40 mA Output, 1.5W, 8-Pin MSOP PAM2841SR

Name: DiodesZetex LED Driver IC, 2.7V DC, 5.5 V DC, 40 mA Output, 1.5W, 8-Pin MSOP PAM2841SR
Brand: DiodesZetex
SKU: 131702
Price: 0.62 USD
Availability: InStock



Category LED Driver IC Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.1mm
Length	3.1mm
Model	PAM2841SR
Width	3.1mm
Mount Type	Through Hole
Series	PAM2841
Output Current	40mA
Maximum Operating Temperature	85°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Maximum Output Power	1.5W
Input Voltage	2.7, 5.5V dc
Maximum Output Voltage	40V
Number of Pins	8
Minimum Output Voltage	6.11V
Dimming Operation	PWM

Key Features

Operates with input voltage range of 2.7 V to 5.5 V DC.
Maximum output power rating of 1.5 W for stable LED performance.
Supports PWM dimming operation for flexible brightness control.
Compact MSOP 8-pin package enables easy mounting and space-saving design.
Reliable through-hole mount type ensuring sturdy PCB attachment.
Wide operating temperature from -40°C up to 85°C suitable for various environments.
Maximum output voltage of 40 V and minimum output voltage of 6.11 V for versatile applications.
Small dimensions with length and width of 3.1 mm and height of 1.1 mm.

Product Description

DiodesZetex PAM2841SR is a specialized LED Driver IC designed for powering displays and backlight LED applications with precision and efficiency. It supports input voltages from 2.7 V to 5.5 V DC and delivers a constant output current of 40 mA, suitable for small to medium LED loads.

This IC features a compact 8-Pin MSOP package, making it ideal for space-constrained designs requiring reliable through-hole mounting. The device supports PWM dimming operation allowing for smooth brightness control, enhancing its suitability for dynamic lighting systems.

The PAM2841SR operates effectively across a wide temperature range from -40°C to 85°C, making it robust for industrial, consumer electronics, and automotive lighting applications. Output voltage capability ranges up to a maximum of 40 V, with a minimum output voltage threshold of 6.11 V, ensuring compatibility with diverse LED configurations.

With a maximum output power of 1.5 W, this LED driver delivers consistent light output while optimizing energy consumption. Its minimal footprint with dimensions 3.1 mm x 3.1 mm x 1.1 mm allows integration into compact electronic assemblies and printed circuit boards.

Manufactured in China, the component adheres to stringent manufacturing quality standards, although it does not have specified international approvals. Operates with input voltage range of 2.7 V to 5.5 V DC. Maximum output power rating of 1.5 W ensures stable LED driving.

Supports PWM dimming operation for smooth light intensity control. Compact 8-pin MSOP package for easy PCB assembly and space saving. Through-hole mounting for secure installation. Wide operational temperature range suitable for challenging environments.

Output voltage specifications enable versatile LED applications. Small physical size with 3.1 mm length and width, 1.1 mm height. Reliable component manufactured in China.

This LED Driver IC is ideal for electronics manufacturing, industrial LED lighting, display backlighting, and automotive lighting systems. Explore more LED driver components in our Electronics & Electricals category on EnvMart for high-quality, reliable parts that meet your project demands.
