Bourns 3315 Series Incremental Encoder 16 PPR Quadrature Signal Solid Shaft 6.35 mm 3315Y-001-016L

Free Delivery in India | Lowest Global Shipping Charges

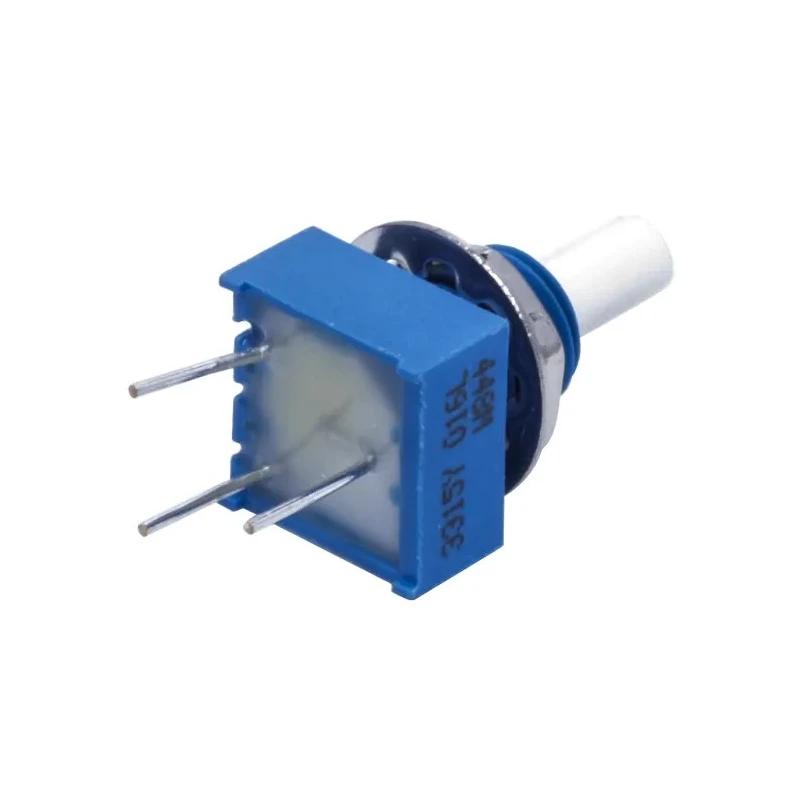

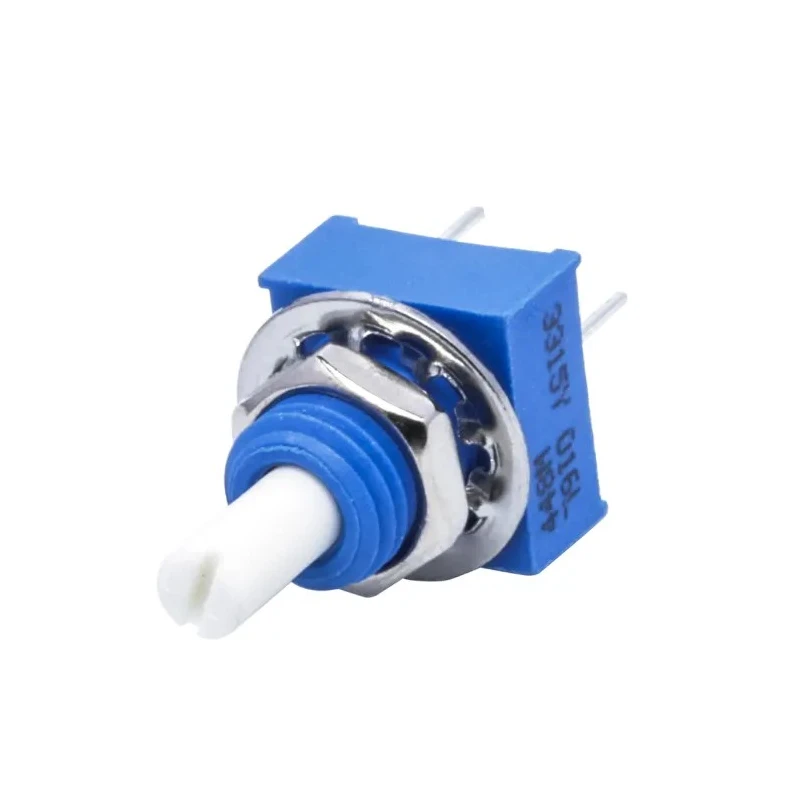

Bourns 3315 Series Incremental Encoder 16 PPR Quadrature Signal Solid Shaft 6.35 mm 3315Y-001-016L

Name: Bourns 3315 Series Incremental Encoder 16 PPR Quadrature Signal Solid Shaft 6.35 mm 3315Y-001-016L
Brand: BOURNS
SKU: 213022
Price: 4.46 USD
Availability: InStock



Category Incremental Encoder Brand BOURNS Condition New

Specifications

Country of Origin	Mexico
Brand	Bourns
Model	3315Y-001-016L
IP Rating	IP67
Mount Type	Panel Mount
Series	3315
Overall Width	9.53mm
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Shaft Diameter	6.35mm
Overall height	9.53mm
Shaft Type	Solid
Terminal type	Solder Pin
Pulses per Revolution	16ppr
Standards/Approvals	RoHS
Overall Depth	17.88mm
Encoder Technology	Incremental
Maximum Revolutions	120rpm
Output Signal Type	Quadrature

Key Features

Encodes position with 16 pulses per revolution for accurate feedback.
Provides quadrature output signal compatible with motion controllers.
Solid shaft design with 6.35 mm diameter for secure mechanical mounting.
Panel mount type with IP67 rating for reliable operation in harsh environments.
Wide operating temperature range from -40°C to 125°C ensures durable use.
Compact 9.53 mm height and width with 17.88 mm overall depth for space-sensitive installations.
Constructed with conductive plastic element for long operating life.
RoHS compliant ensuring environmentally safe manufacturing standards.

Product Description

Bourns 3315Y-001-016L is a 9 mm square sealed incremental encoder that delivers precise position feedback via quadrature output signal technology, making it ideal for industrial automation and motion control sensor applications. It offers 16 pulses per revolution (PPR), enabling accurate measurement for machinery positioning.

This incremental encoder features a solid shaft type with a 6.35 mm diameter, allowing for robust mechanical coupling. The panel mount design facilitates easy installation in various control systems. Its IP67 rating ensures protection against dust and water ingress, suitable for demanding industrial environments.

Operating reliably in extreme temperatures from -40°C to 125°C, this encoder supports applications requiring high durability and environmental resistance. The compact dimensions of 9.53 mm in height and width and 17.88 mm in depth enable integration into space-constrained setups without compromising performance.

Constructed with a conductive plastic element, the encoder guarantees a long operational lifetime. It complies with RoHS standards, ensuring eco-friendly production.

Typical use cases include industrial automation, robotics, semiconductor manufacturing equipment, and any machinery requiring precise rotational position sensing. The robust design and high IP rating make it suitable for harsh factory and outdoor settings.

16 PPR for precise pulse output enabling accurate speed and position measurement. Quadrature signal output providing direction and speed information. Solid shaft with 6.35 mm diameter for secure coupling. Panel mount type and IP67 ingress protection for industrial robustness.

Wide operating temperature range from -40°C to 125°C for versatile environments. Compact size with 9.53x9.53x17.88 mm dimensions for easy system integration. Conductive plastic element ensuring durable operation and long life.

RoHS compliant meeting environmental regulations. Manufactured in Mexico with stringent quality control. Explore the Bourns 3315 series at EnvMart for reliable Incremental Encoders optimized for motion control and automation systems.
