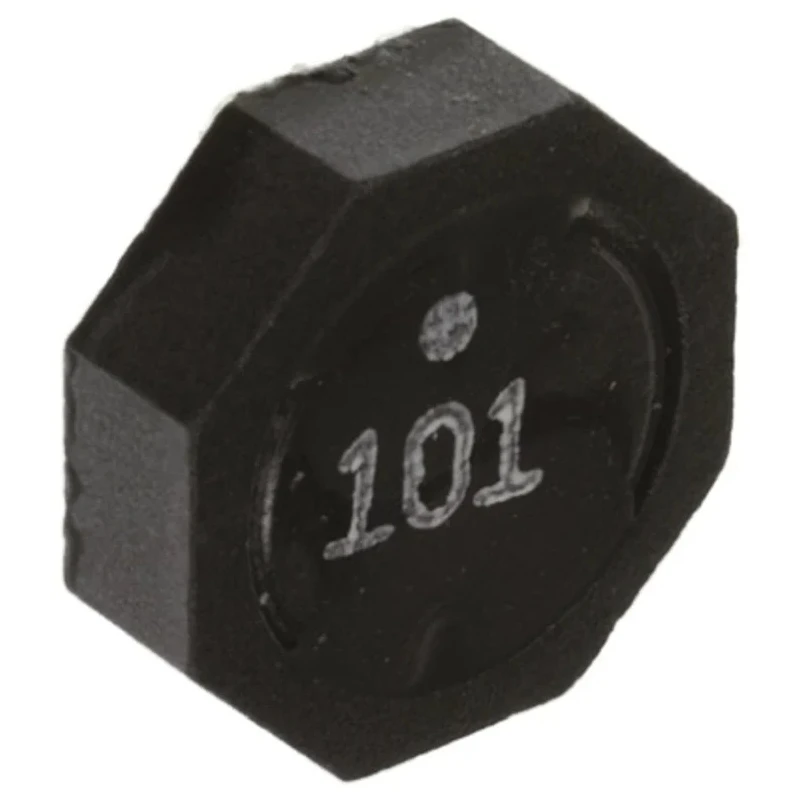

Wurth Elektronik WE-TPC 1038 Shielded Wirewound Surface Mount Inductor 10 μH ±30% 3.6 A Idc 744066100

Wurth Elektronik model 744066100 is a shielded wirewound surface mount inductor from the WE-TPC series, featuring a ferrite core and an inductance of 10 μH with a tolerance of ±30%. It supports a maximum DC current of 3.6 A, making it suitable for demanding DC/DC converter and portable power applications. The compact 1038 package size has dimensions approximately 10 mm in length and 3.8 mm in height.

This inductor employs magnetic shielding to reduce electromagnetic interference and leakage fields, thus ensuring stable operation within electronic circuits. It is constructed with wirewound technology on a ferrite core, providing high efficiency and low losses.

The product meets stringent automotive standard AEC-Q200, and complies with IEC 61249-2-21, IEC 60286-3:2013 standards along with RoHS, REACH, JEDEC JS709B, and IPC/JEDEC J-STD-020E certifications. Designed for use in industrial, automotive, and consumer electronics, it can withstand operating temperatures from -40°C to 125°C.

Typical application environments include portable power devices such as PDAs, digital cameras, PCMCIA cards, embedded PCs, and mobile data gathering equipment. Its high maximum self-resonant frequency of 20 MHz makes it suitable for high-frequency switching regulators and power management circuits.

The inductor features a compact 1038 package/case size suitable for surface mount technology. It is magnetically shielded, reducing electromagnetic interference and leakage fields. The device operates reliably at temperatures ranging from -40°C to 125°C.

Complies with automotive standard AEC-Q200 and various international certifications including RoHS and REACH. The core is made of ferrite material to maximize inductance and minimize losses. The maximum DC resistance is 35 mΩ, ensuring efficient conduction.

Maximum self-resonant frequency is 20 MHz, suitable for high-frequency power applications. Part of the WE-TPC series, designed for flat, high-current power inductors.

This inductor supports industrial electronics, automotive electronics, power management, and embedded systems applications. Wurth Elektronik’s WE-TPC series delivers extremely flat power inductors with high current capabilities and shielding features, ensuring robust performance in compact electronic designs.
