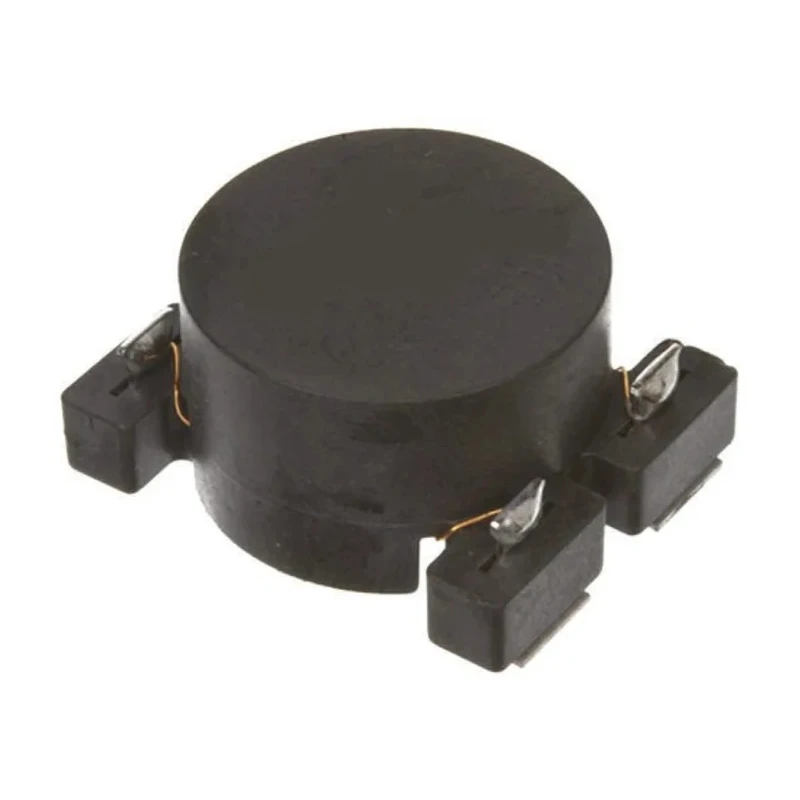

Wurth Elektronik WE-LF SH Wirewound Surface Mount Inductor 2.2 mH Sector Winding ±30 % 2 A Idc 7446632002
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 23.3mm |
| Brand | Wurth Elektronik |
| Height | 11.5mm |
| Length | 18.5mm |
| Depth | 23.3mm |
| Packaging | Tape & Reel |
| Series | WE-LF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 2.2mH |
| Standards/Approvals | UL 94 V-0 |
| Package/Case | SH |
| Maximum DC Current | 2A |
| Pin Count | 4 |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Sector Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact SH package suitable for surface mounting.
- Inductance tolerance of ±30 % ensuring performance flexibility.
- Supports maximum operating temperature up to 125°C.
- Complies with automotive standard AEC-Q200.
- Low maximum DC resistance of 100 milliohms for efficiency.
- Constructed with a sector winding inductor design.
- Pin count of 4 for reliable connectivity.
- Measures 18.5 mm in length, 23.3 mm diameter, and 11.5 mm height.
Product Description
Wurth Elektronik 7446632002 WE-LF SH Wirewound Surface Mount Inductor 2.2 mH is engineered with sector winding construction, designed for high attenuation of common mode interferences in low and middle frequency ranges. This compact surface mount inductor is built in a SH package with a 4-pin configuration, making it suitable for automated PCB assembly.
It supports a maximum DC current of 2 A and operates reliably in temperatures ranging from -40°C to 125°C. An inductance tolerance of ±30 % allows design flexibility in electronic circuits. The low maximum DC resistance of 100 milliohms ensures efficient power handling and reduced losses.
The inductor is compliant with the automotive standard AEC-Q200, highlighting its suitability in automotive and industrial applications. Safety is reinforced with UL 94 V-0 certification, indicating high flame retardance.
Typical applications include mains filters, power electronics, and switched-mode power supplies (SMPS) where effective suppression of common mode noise is critical. The product comes packaged in tape & reel form facilitating high-speed manufacturing.
Compact size in SH package suitable for surface mounting. Sector winding construction for excellent common mode interference attenuation. Maximum DC current rating of 2 A supports power applications. Inductance tolerance of ±30 % for design flexibility.
Wide operating temperature range from -40°C to 125°C. Low DC resistance of 100 milliohms reduces power losses. Compliant to automotive standard AEC-Q200 ensures durability in automotive environments. 4-pin configuration compatible with reflow soldering processes.
RoHS compliant and UL 94 V-0 rated for safety and environmental standards. Ideal for mains filters, power electronics, and SMPS applications. Explore the comprehensive range of Surface Mount Inductors in the Electronics Components category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2 mH, providing flexibility in electronic circuit design due to its inductance tolerance of ±30%.
This inductor supports a maximum DC current of 2 A, making it suitable for various power applications.
The inductor measures 18.5 mm in length, 23.3 mm in diameter, and has a height of 11.5 mm.
It operates reliably at a maximum temperature of 125°C, suitable for high-temperature environments.
This unit features a sector winding construction, which is designed for high attenuation of common mode interferences.
Yes, it is compliant with the automotive standard AEC-Q200, ensuring its suitability for automotive applications.
The maximum DC resistance is 100 milliohms, which helps in reducing power losses during operation.
This model is packaged in tape & reel form, facilitating high-speed automated manufacturing processes.
The termination style is surface mount, which allows for efficient PCB assembly.
It meets the UL 94 V-0 standard, indicating high flame retardance and safety in applications.
The minimum operating temperature is -40°C, allowing it to function in extreme cold conditions.
Typical applications include mains filters, power electronics, and switched-mode power supplies (SMPS), where effective suppression of common mode noise is critical.
