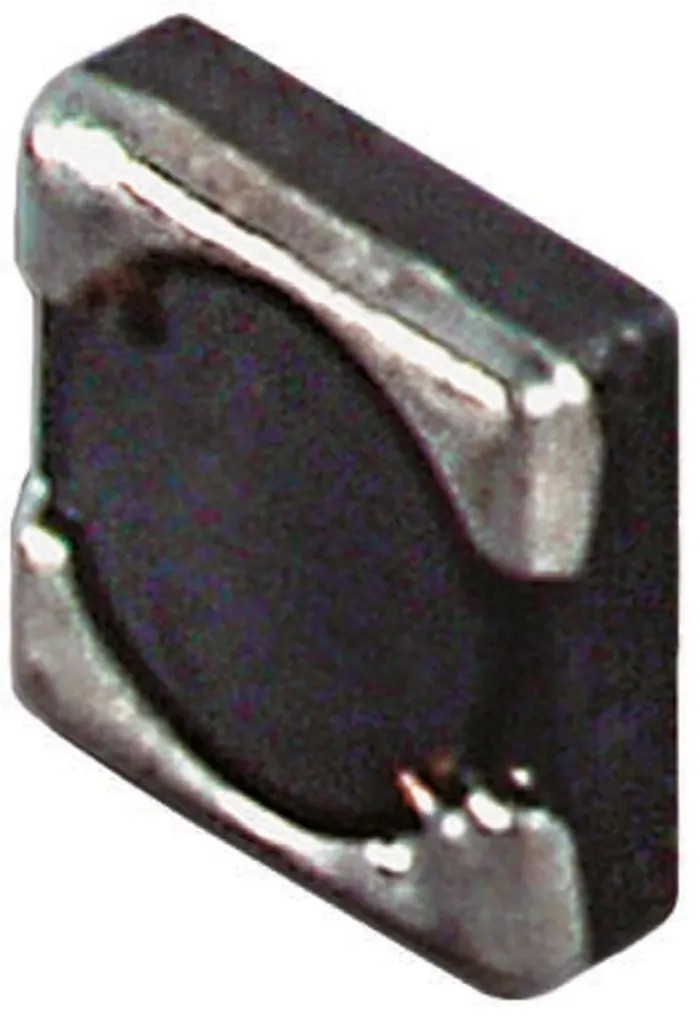

Wurth Elektronik WE-TPC 4828 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±30 % 1.19 A DC 744043100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 2.8mm |

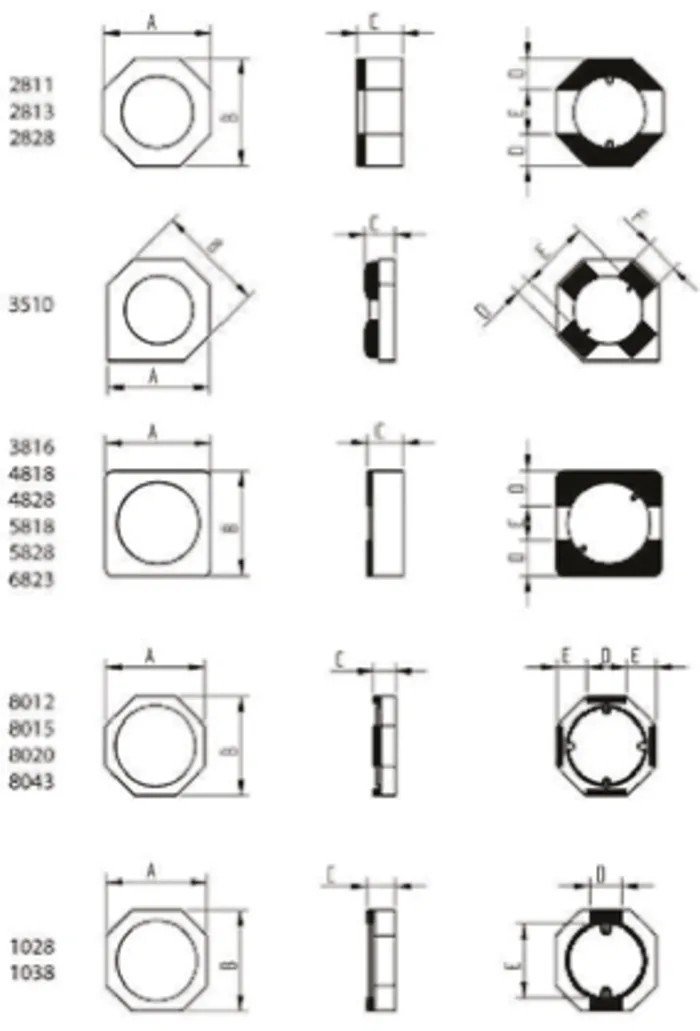

| Length | 4.8mm |
| Depth | 4.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 4828 |
| Maximum DC Current | 1.19A |
| Maximum DC Resistance | 110mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/Approvals IEC 60286-3 | 2013, RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21 |
Key Features
- Compact surface mount design measuring 4.8mm x 4.8mm x 2.8mm for space-saving PCB applications.
- Magnetically shielded wirewound construction reducing electromagnetic interference and leakage fields.
- Rated for operating temperature range of -40°C to 125°C ensuring reliability in harsh environments.
- Compliance with automotive standard AEC-Q200 for rugged automotive electronics use.
- Maximum DC resistance of 110 milliohms, supporting efficient power management circuits.
- Core material is ferrite, optimized for high-frequency and low noise inductance.
- Packaged in tape and reel format for automated assembly processes.
- Suitable for portable power devices, DC/DC converters, embedded PCs, and telemetric equipment.
Product Description
Wurth Elektronik 744043100 WE-TPC series shielded wirewound surface mount inductor offers a 10 μH inductance with ±30 % tolerance and is designed with a ferrite core. This inductor supports a maximum DC current of 1.19 A and features a compact 4.8 mm square package with 2.8 mm height, optimized for surface mounting on PCBs.
The WE-TPC series is magnetically shielded to minimize leakage magnetic fields, providing enhanced electromagnetic compatibility in sensitive industrial and electronic applications. Its robust construction supports a wide operating temperature range from -40°C to 125°C, making it suitable for use in automotive electronics compliant with the AEC-Q200 standard.
With a maximum DC resistance of 110 milliohms, this inductor is efficient for power circuits such as DC/DC converters, portable power systems including PDAs and digital cameras, embedded computing devices, and mobile data gathering and telemetric systems.
Packaged in tape and reel form, the component is compatible with automated pick-and-place assembly methods, helping streamline manufacturing processes in electronics production. Compact surface mount design measuring 4.8 mm x 4.8 mm x 2.8 mm.
Magnetic shielding for reduced electromagnetic interference. Stable operation between -40°C and 125°C. Meets automotive AEC-Q200 quality standards. Low DC resistance for efficient current handling. Ferrite core material optimized for high frequency performance.
Tape and reel packaging for manufacturing automation. Ideal for portable power and embedded applications.
This shielded wirewound inductor is widely used in industrial, automotive, telecommunications, and consumer electronic sectors requiring reliable inductance performance and electromagnetic compatibility. Explore more high-quality Surface Mount Inductors at EnvMart for your specialized industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±30%.
It supports a maximum DC current of 1.19 A.
The dimensions are 4.8 mm in length, 4.8 mm in depth, and 2.8 mm in height.
The operating temperature range is from -40°C to +125°C.
The core material is ferrite, optimized for high-frequency performance.
It is packaged in tape and reel format, suitable for automated assembly processes.
It complies with the automotive standard AEC-Q200.
The maximum DC resistance is 110 milliohms.
The maximum self-resonant frequency is 40 MHz.
It features a wirewound construction, which is magnetically shielded to reduce electromagnetic interference.
It is suitable for portable power devices, DC/DC converters, embedded PCs, and telemetric equipment.
It meets standards including IEC 60286-3, RoHS, REACH, and others as per the specifications provided.
