Hirose 0.5 mm Pitch 50 Way Straight Female FPC Connector Surface Mount Solder Termination FH34SRJ

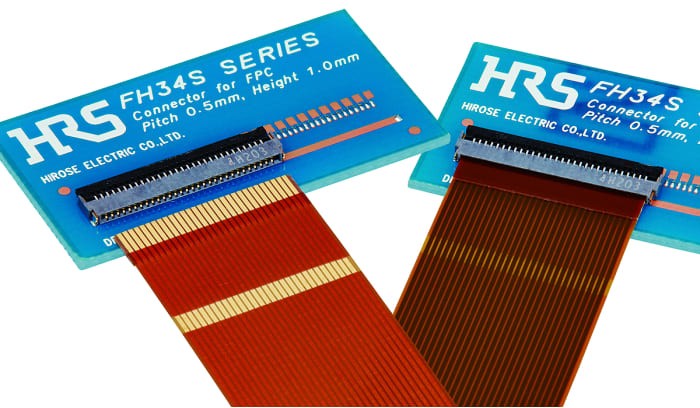

Hirose FH34SRJ 0.5 mm Pitch 50 Way Straight Female FPC Connector FH34SRJ is a surface mount solder-type connector designed for flexible printed circuits (FPCs) and flexible flat cables (FFC). It features a 0.5 mm pitch with 50 contacts in a single-row configuration, providing a reliable ZIF (Zero Insertion Force) mechanism with a back-flip rotating actuator for easy cable insertion and secure locking.

The connector has a slim profile height of just 1.00 mm above the PCB, facilitating compact electronic assemblies. It incorporates top and bottom contact positions allowing for versatile design flexibility. The housing is constructed from halogen-free liquid crystal polymer and polyamide, ensuring compliance with IEC61249-2-21 standards and providing mechanical robustness and environmental safety.

Contact materials consist of phosphor bronze plated with nickel and gold, guaranteeing excellent electrical conduction and durability. Rated for 500 mA current and 50 V AC voltage, it supports operational temperatures ranging from -55°C to 85°C. The solid bottom design prevents exposure of contacts beneath the PCB, allowing conductive traces to run uninterrupted under the connector.

This FPC connector is particularly suited to industrial and commercial applications such as mobile phones, notebook PCs, DVD players, and LCD monitors, where reliable flexible cable connections are essential. Its smooth chamfered inner walls enhance cable insertion, and the flat upper surface supports automated vacuum pick-up placement techniques during manufacturing.

Low 1.00 mm profile height suitable for compact assemblies. Back-flip rotating actuator for easy and secure FPC/FFC insertion. High retention force ensures reliable electrical and mechanical connections. Top and bottom contacts for flexible PCB design options.

Phosphor bronze contacts with nickel and gold plating for longevity. Halogen-free housing material to meet environmental safety requirements. Supports a current of 500 mA and voltage of 50 V AC. Operating temperature range from -55°C to 85°C.

Solid bottom design enables conductive PCB traces beneath the connector. Explore Hirose FPC Connectors and other precision connector solutions at EnvMart for reliable, efficient electronic component integration.
