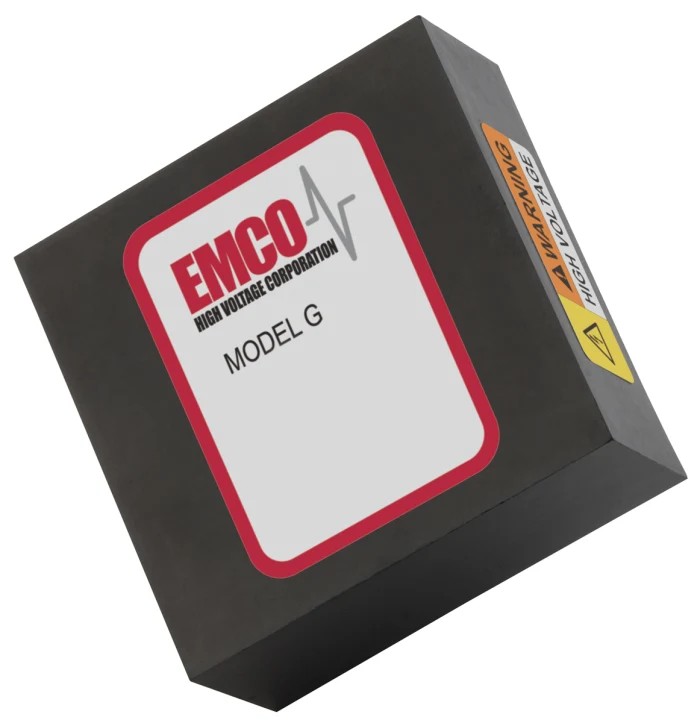

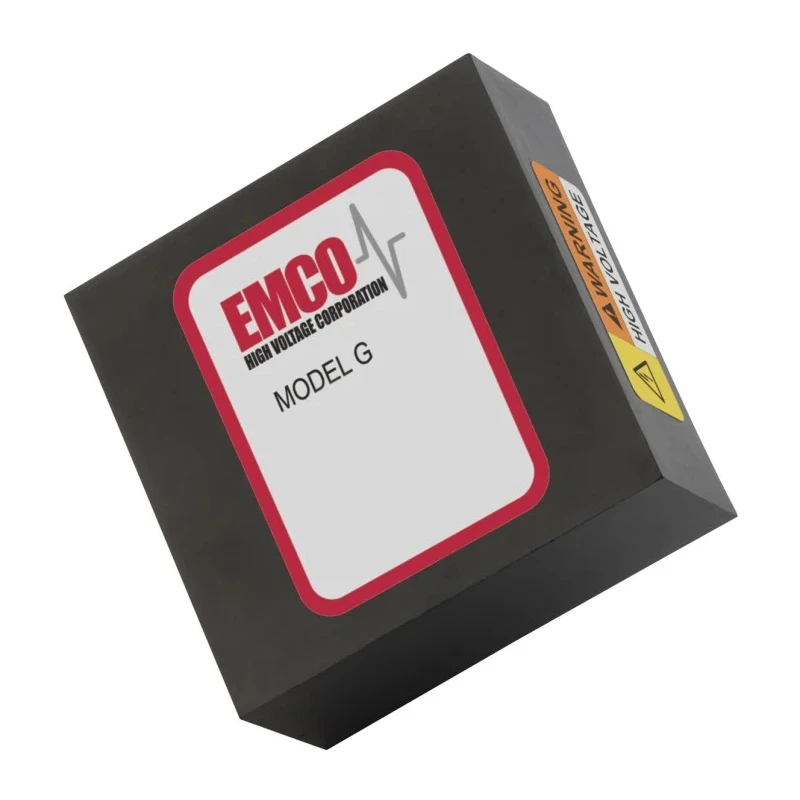

XP Power DC/DC Converter Through Hole 12V dc Input 1.2kV Output 1.25mA 1.5W G12

XP Power G12 DC/DC Converter is a high voltage isolated converter designed for applications requiring compact, reliable power supply solutions. Featuring a through hole mount type suited for PCB integration, this converter provides an output voltage of 1.2kV with a 1.25mA output current while consuming up to 1.5W of power. Its robust design delivers low ripple and noise with only 0.1% peak, maintaining signal integrity in sensitive electronic circuits.

Operating efficiently from a 12V dc input with an allowance down to 0V input, the device withstands an isolation voltage of 3.5kV, providing enhanced protection for upstream and downstream components. This converter operates reliably between -10°C and 60°C ambient temperatures, making it suitable for a range of industrial and laboratory environments.

The compact ComPacT package, measuring 38.1mm in length and width with a 16mm depth, and weighing just 43 grams, makes it ideal for space-constrained designs. The design includes proven reliability with a mean time between failures (MTBF) of approximately 2.29 million hours and includes short circuit protection ensuring device safety under fault conditions. There is no minimum load required for operation, supporting various application demands.

This series of converters is ideal for use in specialized applications such as photomultiplier tubes, lamp ignition and drive circuits, piezoelectric devices, vacuum gauge power supplies, and capacitor charging circuits where isolated high voltage DC supply is critical.

Designed for compact PCB mounting with through hole installation. Provides 1.2kV output voltage and 1.25mA output current. Features low ripple and noise of 0.1% for stable power delivery. Offers high isolation voltage of 3.5kV ensuring safety and reliability.

Operates in temperature range from -10°C to 60°C for versatile environments. Compact package with dimensions 38.1mm x 38.1mm x 16mm and lightweight 43g. Includes short circuit protection and functions without minimum load requirements.

Ideal for photomultiplier tubes, lamp ignition, piezo devices, vacuum gauges, and capacitor charging. High MTBF of 2,290,000 hours ensures long-term operational reliability.
