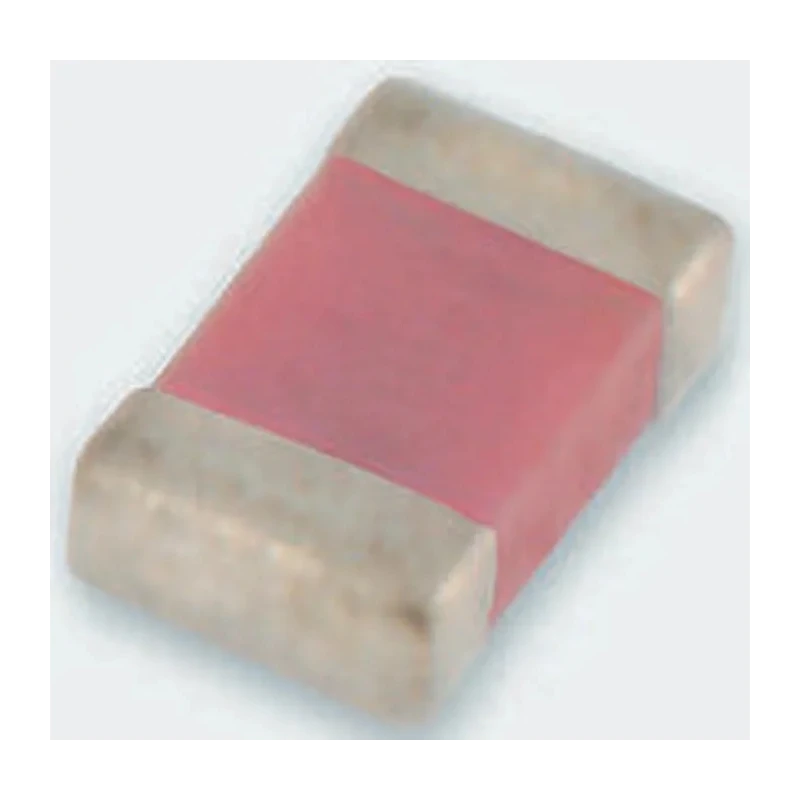

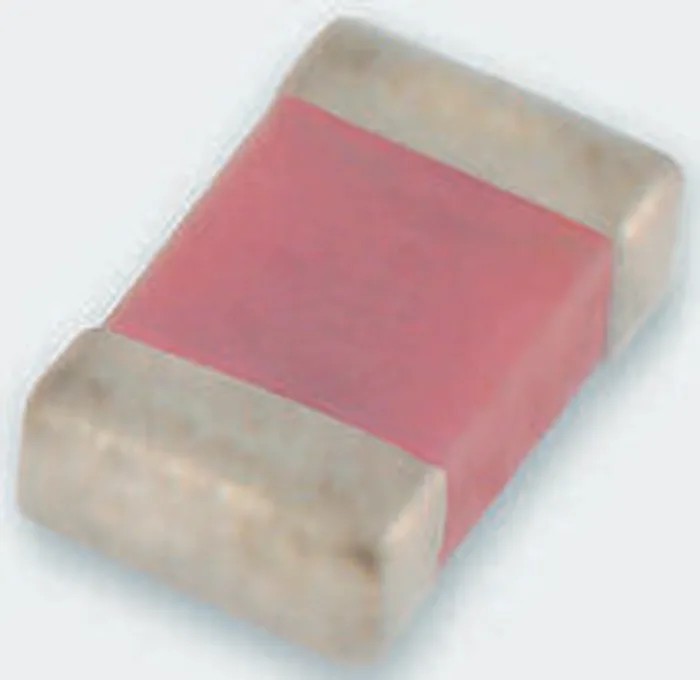

Yageo 10 nF Multilayer Ceramic Capacitor 100V DC ±10 % X7R 1206 Surface Mount 223860115636

Yageo 223860115636 Multilayer Ceramic Capacitor is a high-performance electronic component designed for use in a wide range of industrial and commercial electronic applications. It features a capacitance of 10 nF and a voltage rating of 100V DC with a ±10 % tolerance, suitable for signal filtering, decoupling, and coupling circuits.

The capacitor utilizes an X7R dielectric material, classified as a Class II temperature stable ceramic, ensuring reliable operation in environments ranging from −55°C to 125°C. The 1206 case size provides compactness with dimensions of 3.2 mm length, 1.6 mm width, and 0.85 mm height, which is ideal for surface mount technology (SMT) assembly processes.

This component employs a stacked construction methodology to maintain consistent performance and durability. Its surface mount terminations facilitate automated placement, making it suitable for high-volume manufacturing.

Yageo's adherence to RoHS standards confirms that the product meets important environmental protection requirements, making it appropriate for use in environmentally conscious designs.

Capacitance value of 10 nanofarads provides reliable energy storage. Rated voltage of 100V DC ensures suitability for common electronic circuits. Constructed with X7R dielectric for temperature stability over −55°C to 125°C.

Surface mount technology case size 1206 enables compact PCB mounting. Stacked construction enhances performance consistency. Tolerance of ±10 % allows for precise capacitance variations in applications. Termination type is surface mount for automated assembly.

Packaged in 7 inch reel facilitating easy deployment in production. RoHS compliant ensuring environmental safety standards. Dimensions: length 3.2 mm, width 1.6 mm, height 0.85 mm.

This capacitor is commonly used in industrial, laboratory, manufacturing, and electronic equipment applications requiring stable, small-footprint energy storage components. It offers an ideal balance between performance, size, and cost efficiency.
