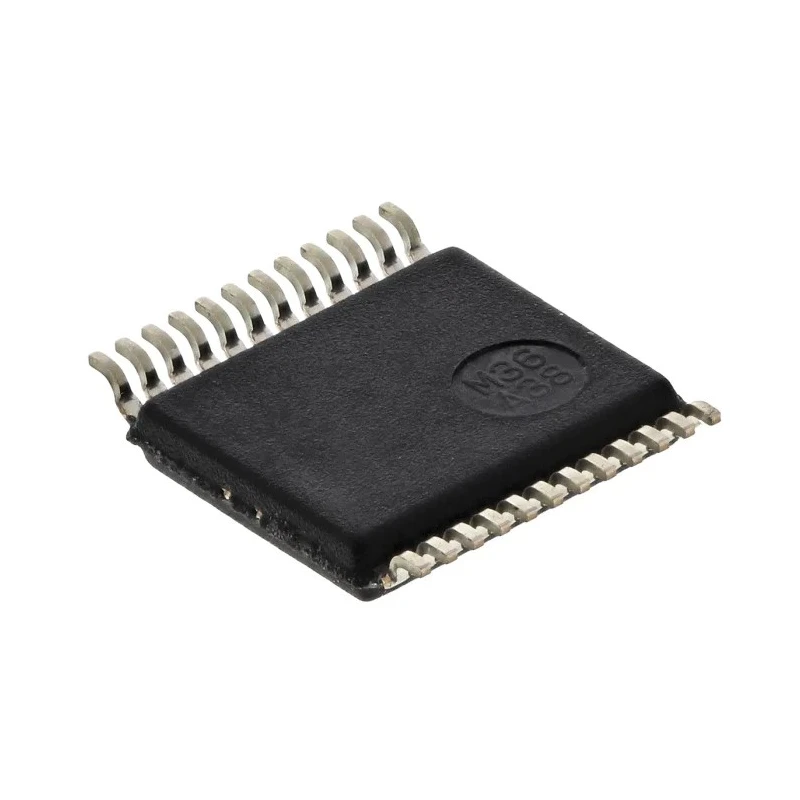

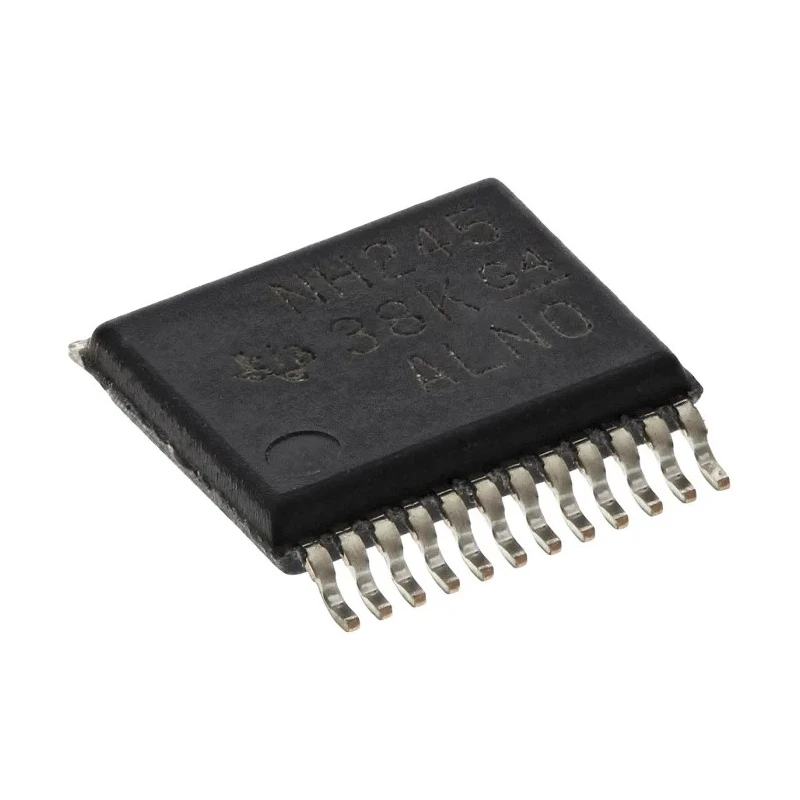

Texas Instruments 8-Bit Non-Inverting LVTTL Bus Transceiver 24-Pin TVSOP SN74LVC8T245DGVR

Texas Instruments SN74LVC8T245DGVR is a high-performance 8-bit bus transceiver from the 74LVC family that operates at low voltage levels ranging between 1.65V and 3.6V. It is designed with silicon gate CMOS technology to minimize power consumption while maintaining robust logic performance.

This device features non-inverting LVTTL logic functionality, packaged in a 24-pin TVSOP surface-mount form factor ideal for compact electronic boards.

With a maximum propagation delay time of 23.4ns, it supports efficient data transfers in synchronising buses. Its outputs are 3-state type, facilitating multiplexed bus connections on 8 separate channels.

The IC accepts input levels compatible with TTL/LVTTL and outputs LVCMOS compatible signals, ensuring seamless integration with modern digital circuits.

Reliability is ensured with latch-up immunity above 250mA per JEDEC standards JESD 17, and robust ESD protection exceeding JESD 227, suitable for demanding industrial and commercial environments. The IC operates effectively over a wide temperature range from -40°C to 85°C.

Typical applications include electronic industrial equipment, data communication interfaces, control systems, and embedded devices requiring efficient bus transceiver functionality with low power consumption.

Operating voltage: 1.65 to 3.6V for power-efficient operation. 8 channels with non-inverting logic function for versatile data bus control. Compact 24-pin TVSOP package allowing easy PCB integration. Robust ESD and latch-up protections increase device durability.

Wide operating temperature range suitable for industrial and commercial use. Compatible with LVTTL inputs and LVCMOS outputs, enhancing system flexibility. This product is a reliable choice for engineers designing low-voltage bus transceiver circuitry requiring high speed and low power dissipation.
