Renesas Electronics DC Input 4-Channel Photocoupler Surface Mount 16-Pin SSOP PS2802-4-F3-A

Free Delivery in India | Lowest Global Shipping Charges

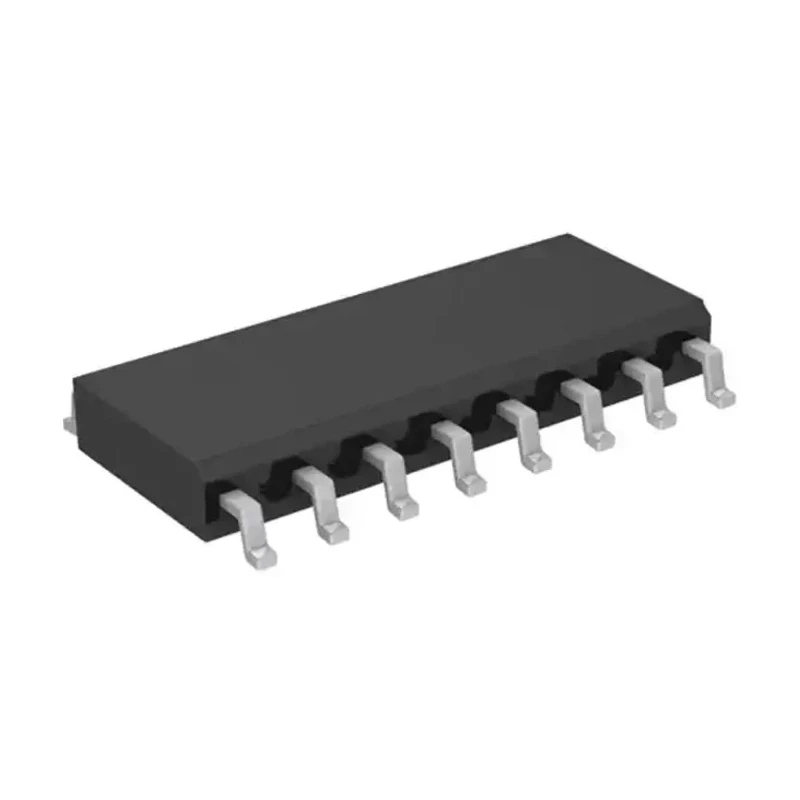

Renesas Electronics DC Input 4-Channel Photocoupler Surface Mount 16-Pin SSOP PS2802-4-F3-A

Name: Renesas Electronics DC Input 4-Channel Photocoupler Surface Mount 16-Pin SSOP PS2802-4-F3-A
Brand: Renesas Electronics
SKU: 203334
Price: 4 USD
Availability: InStock



Category Electronic Components Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Model	PS2802-4-F3-A
Packaging	Tape & Reel
Mount Type	Surface
Series	PS
Maximum Operating Temperature	100°C
Package Type	SSOP
Minimum Operating Temperature	-55°C
Maximum input current	5mA
Number Of Channels	4
Standards/Approvals	UL
Maximum Forward Voltage	1.4V
Number of Pins	16
Input Current Type	DC
Typical Rise Time	200μs
Maximum Current Transfer Ratio	2000%

Key Features

Includes four optically coupled channels with DC input type.
Features a shield effect package to eliminate ambient light interference.
Maximum forward voltage is 1.4 volts with a maximum input current of 5 milliamps.
Typical rise and fall times are both 200 microseconds for fast switching performance.
Isolation voltage rating is 2.5 kilovolts RMS ensuring safety and signal integrity.
Package type is SSOP with 16 pins, suitable for compact board layouts.
Operating temperature ranges from -55°C to 100°C for wide environment compatibility.
High current transfer ratio of up to 2000% provides efficient signal transmission.

Product Description

Renesas Electronics PS2802-4-F3-A is a 4-channel photocoupler with DC input, designed for surface mount applications in a 16-pin SSOP package. This optically coupled isolator integrates a GaAs light-emitting diode and an NPN silicon Darlington-connected phototransistor within a compact, shielded plastic body to minimize ambient light interference. Its high isolation voltage of 2.5 kVrms ensures robust signal isolation, making it suitable for industrial, commercial, and instrumentation applications requiring electrical isolation between input and output circuits.

The device supports a maximum forward voltage of 1.4 V and a maximum input current of 5 mA, with typical rise and fall times of 200 microseconds, enabling fast switching capabilities. Operating over a wide temperature range of -55°C to 100°C, it offers reliable performance in harsh environments. The high current transfer ratio of 2000% ensures effective optical signal amplification to transistor output, suitable for logic output interfacing.

The PS2802-4-F3-A is compliant with UL standards, assuring quality and safety. It is supplied in tape and reel packaging for compatibility with automated assembly and surface mount techniques. This device is widely used in power supplies, signal isolation, industrial control, and communication systems.

Includes four optically coupled channels with DC input type. Shield effect package reduces interference from ambient light. Maximum input current of 5 mA with 1.4 V forward voltage. Typical rise and fall times of 200 μs for rapid switching.

High isolation voltage of 2.5 kVrms provides electrical safety. Compact 16-pin SSOP surface mount package. Wide operating temperature range from -55°C to 100°C. Current transfer ratio up to 2000% for efficient signal amplification.

UL approved for industrial quality standards. Supplied in tape and reel packaging suitable for automated mounting. Explore other Electronic Components and optocouplers at EnvMart for your industrial, laboratory, and commercial applications.
