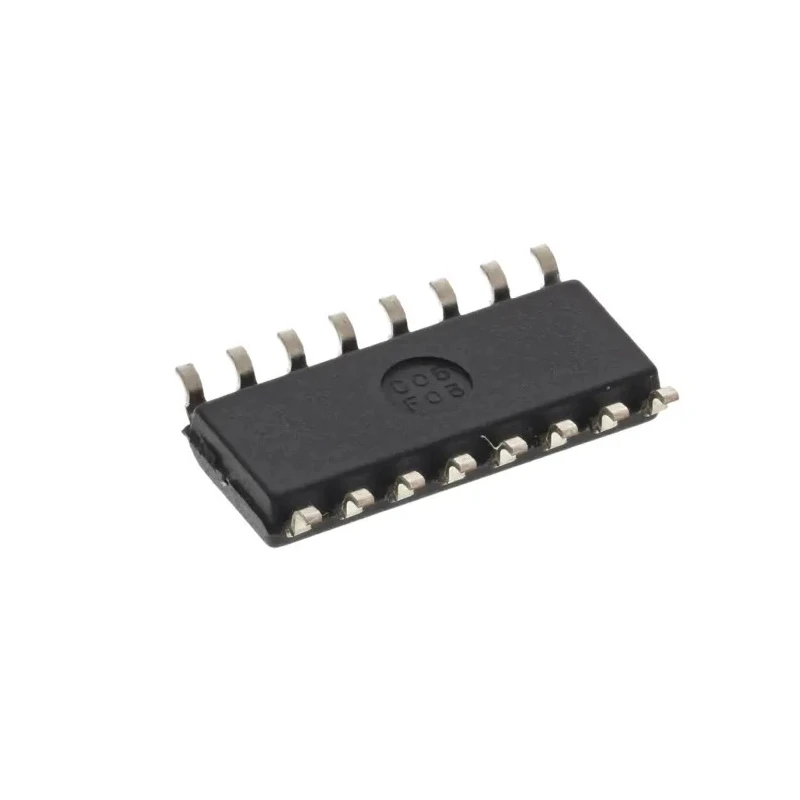

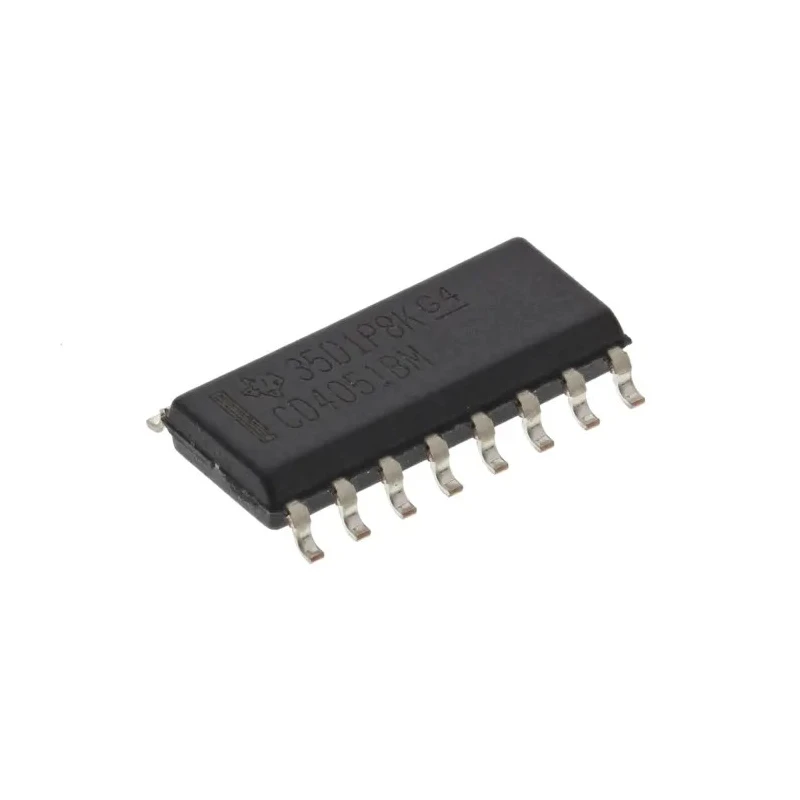

Texas Instruments CMOS Multiplexer/Demultiplexer Single 8 x 1 Configuration 16-Pin SOIC CD4051BM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 9.9mm |
| Model | CD4051BM |
| Width | 3.91mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | CD4051B |
| Configuration | Single 8 x 1 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 20V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -0.5V |
| Wide operating voltage range | 3 to 18V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 550Ω |
Key Features
- CMOS logic family ensuring low power consumption.
- Configured as a single 8 input to 1 output multiplexer/demultiplexer.
- 16-pin SOIC surface mount package for compact PCB designs.
- Wide operating voltage range from -0.5V to 20V.
- Maximum on-state resistance of 550 ohms enhancing signal integrity.
- Operational temperature range from -55°C to 125°C suitable for harsh environments.
- Single element per chip ensuring dedicated multiplexing.
- Compatible with industrial and consumer electronic applications.
Product Description
Texas Instruments CD4051BM is a high-performance CMOS multiplexer/demultiplexer designed for electronic applications requiring signal routing and switching. Belonging to the 4000 Series CMOS Logic Family, this single 8 x 1 device operates over a wide voltage range of -0.5V to 20V, making it versatile for various power requirements.
The device is packaged in a compact 16-pin SOIC surface mount format with dimensions of 9.9mm length, 3.91mm width, and 1.58mm height, enabling efficient use of PCB space. It features a maximum on-state resistance of 550 ohms, which minimizes signal loss and ensures reliable switching performance.
Operating within an extended temperature range from -55°C to 125°C, the CD4051BM is suitable for use in both industrial and commercial environments. Its CMOS technology ensures low power consumption and high noise immunity, making it ideal for multiplexing analog and digital signals in measurement instruments, signal processing, and automated systems.
This multiplexer/demultiplexer IC contains a single element configured for 8 inputs and one output and is surface mountable for modern assembly processes. The device does not carry any automotive-specific approvals but meets standard semiconductor requirements for reliable operation.
CMOS logic family providing low power operation. Single 8 x 1 multiplexer/demultiplexer configuration. Surface mount 16-pin SOIC package for compact circuit layout. Wide operating voltage range from -0.5V minimum to 20V maximum.
Maximum on-state resistance of 550 ohms for optimized signal switching. Extended operating temperature range from -55°C to 125°C. Dimensions: Length 9.9mm, Width 3.91mm, Height 1.58mm. Single multiplexing element per chip.
Applications include industrial controls, measurement instruments, data acquisition systems, and consumer electronics where signal routing with low power and high reliability is essential. It is an integral component in logic and signal switching circuitry.
Explore EnvMart’s comprehensive catalog for advanced semiconductor components including multiplexers and demultiplexers from Texas Instruments to enhance your electronic system designs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 20V.
It is configured as a single 8 x 1 multiplexer/demultiplexer.
The dimensions of this unit are 9.9mm in length, 3.91mm in width, and 1.58mm in height.
The maximum on-state resistance is 550 ohms, which helps enhance signal integrity.
It operates within an extended temperature range from -55°C to 125°C.
This model is packaged in a 16-pin SOIC surface mount format.
It belongs to the CMOS logic family, ensuring low power consumption.
The minimum supply voltage is -0.5V.
It contains a single element per chip, dedicated to multiplexing.
It is suitable for industrial controls, measurement instruments, data acquisition systems, and consumer electronics.
The output type is CMOS, which is suitable for various electronic applications.
The wide operating voltage range is from 3V to 18V.
