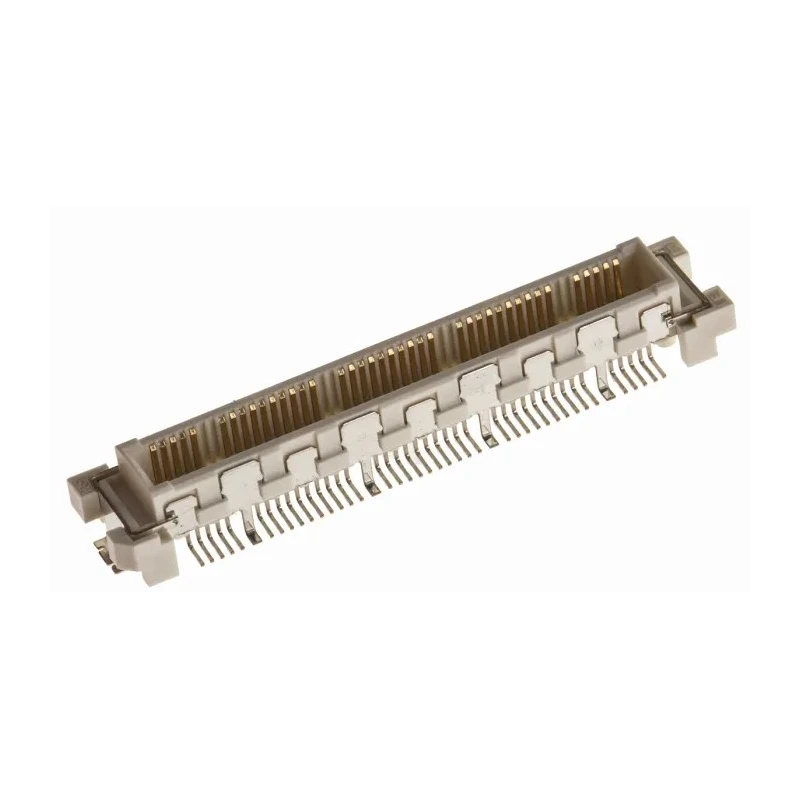

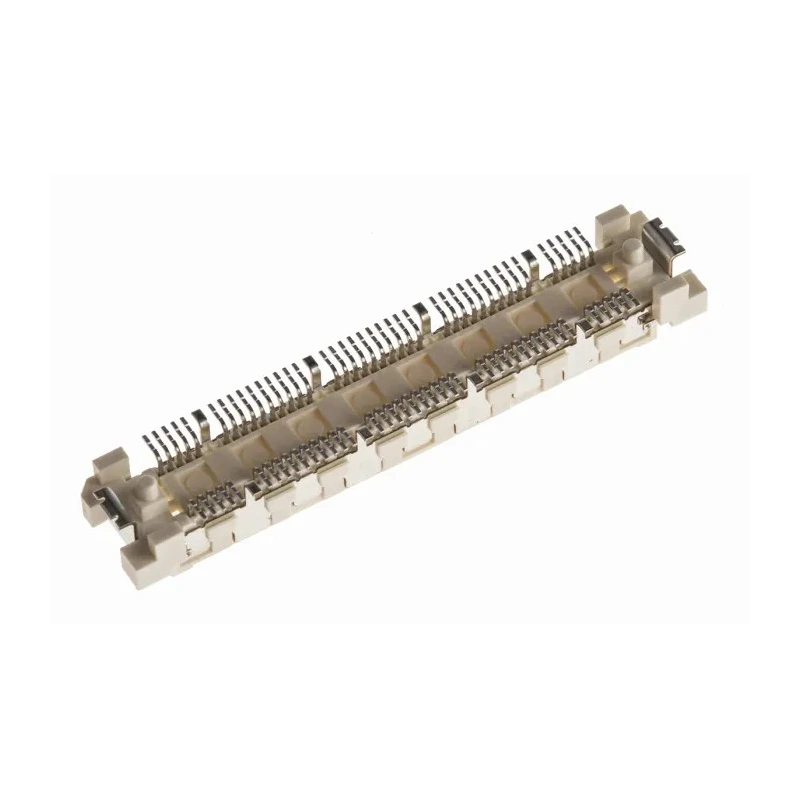

Hirose FunctionMAX FX10 Series Straight Surface PCB Header, 88 Contacts, 0.5 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | FX10 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX10 |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| 10 | 1 signal to ground ratio for stabilised grounding and reduction in crosstalk |
| Contact Plating | Gold |
| Number of Contacts | 88 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-speed 15+ Gbit/s SMT board-to-board stacking connector.
- Features excellent grounding with a grounding plate on both sides.
- Compact 0.5 mm pitch ideal for high-density PCB applications.
- Metal mounting fittings for increased PCB retention and solder strength.
- Operating temperature range from -10°C to 60°C.
- Constructed with phosphor bronze contacts plated in gold.
- Housing made from liquid crystal polymer for durability.
- Applications include industrial controllers, medical equipment, smart meters, and servers.
Product Description
Hirose FX10A-80P/8-SV1(91) is a FunctionMAX FX10 series PCB header featuring 88 contacts arranged in 2 rows with a compact 0.5 mm pitch and shrouded straight surface mounting design. It operates up to 50V and supports high-speed data transmission exceeding 15 Gbit/s.
Designed specifically for demanding industrial environments, this connector ensures excellent grounding through its dual-sided grounding plate and a 10:1 signal-to-ground contact ratio which reduces crosstalk and enhances signal integrity. The housing is crafted from durable liquid crystal polymer, while the contacts are phosphor bronze plated with gold for reliable electrical connection and corrosion resistance.
Metal mounting fittings at both ends reinforce PCB retention and solder joint strength, with grounding plate connections enhancing mechanical and electrical stability. The connector supports an operating temperature between -10°C and 60°C, making it suitable for various industrial, medical, and commercial applications including industrial controllers, motors, servers, measurement equipment, smart meters, base station transceivers, and programmable logic controllers (PLCs).
Its compact 0.5 mm pitch and shrouded design facilitate high-density board stacking with stacking heights from 4 mm to 8 mm. The FunctionMAX FX10 series represents high-performance board-to-board connectors engineered for advanced signal transmission and maximum functionality in industrial use cases.
High-speed SMT board-to-board connector delivering over 15 Gbit/s transmission rate. Dual-sided grounding plate significantly enhances grounding and signal transmission. Gold-plated phosphor bronze contacts provide corrosion-resistant electrical performance.
Durable liquid crystal polymer housing suited for industrial environments. Metal mounting fittings increase PCB retention and solder strength. Shrouded design for robust mechanical and electrical protection. Compact 0.5 mm pitch allows for high-density PCB layouts.
Supports wide operating temperature range from -10°C to 60°C. Applications include industrial, medical, commercial, and telecommunications equipment. Explore a wide range of PCB Headers and connectors for industrial and electronics applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this PCB header is 50V.
This model features 88 contacts arranged in 2 rows.
The pitch size of this connector is 0.5 mm, making it suitable for high-density applications.
The housing is made from liquid crystal polymer, and the contacts are phosphor bronze plated with gold.
It operates within a temperature range of -10°C to 60°C.
This connector uses surface mounting for installation.
The dual-sided grounding plate enhances grounding and reduces crosstalk, improving signal integrity.
The current rating for this model is 300mA.
This connector is suitable for applications including industrial controllers, medical equipment, smart meters, and servers.
The connector system type is board-to-board.
The 10:1 signal-to-ground contact ratio stabilizes grounding and reduces crosstalk, enhancing performance.
This PCB header uses solder termination for connections.
