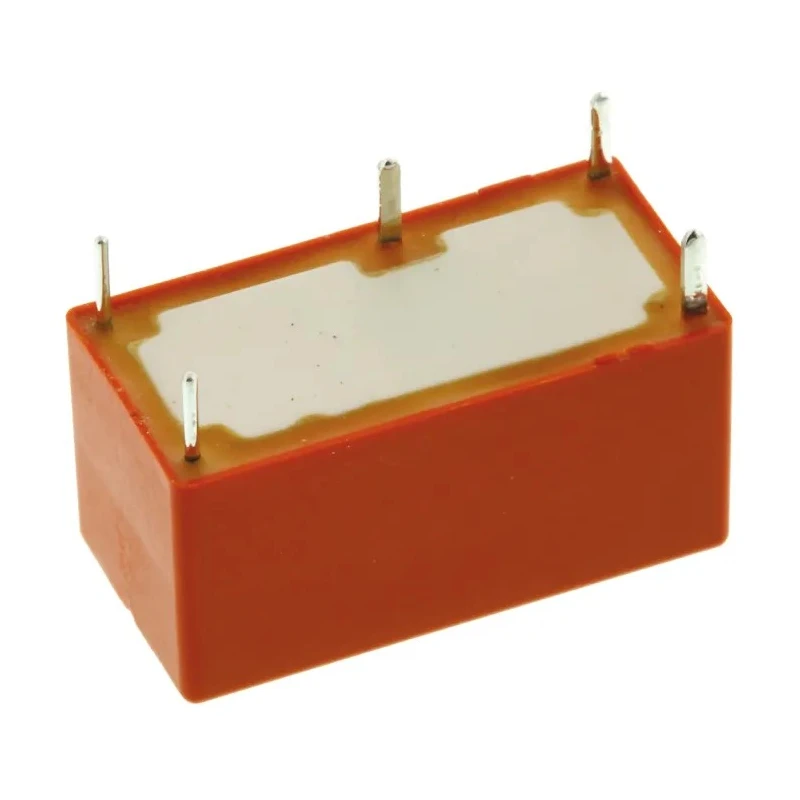

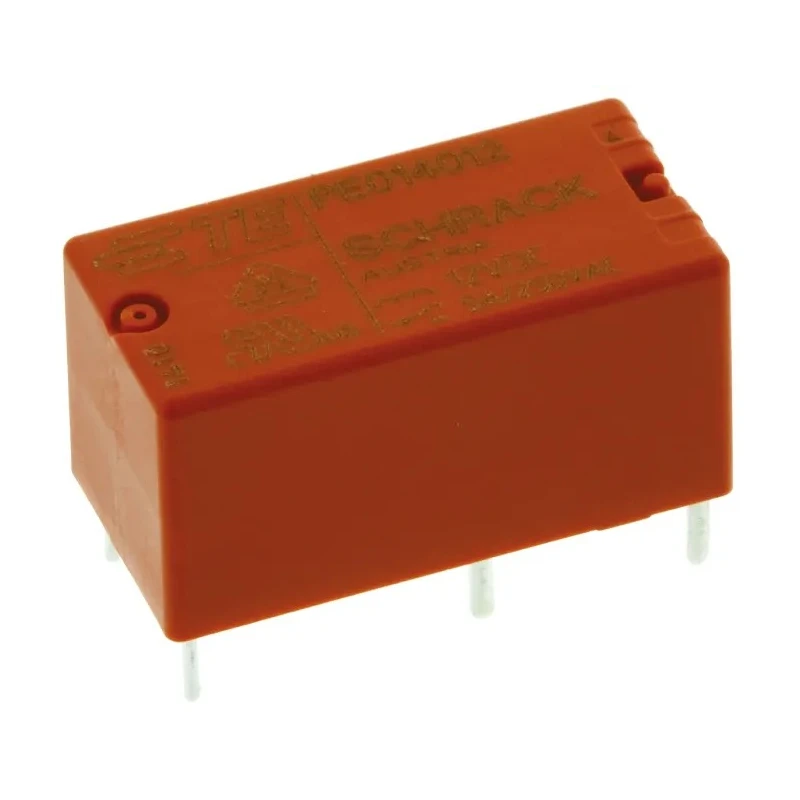

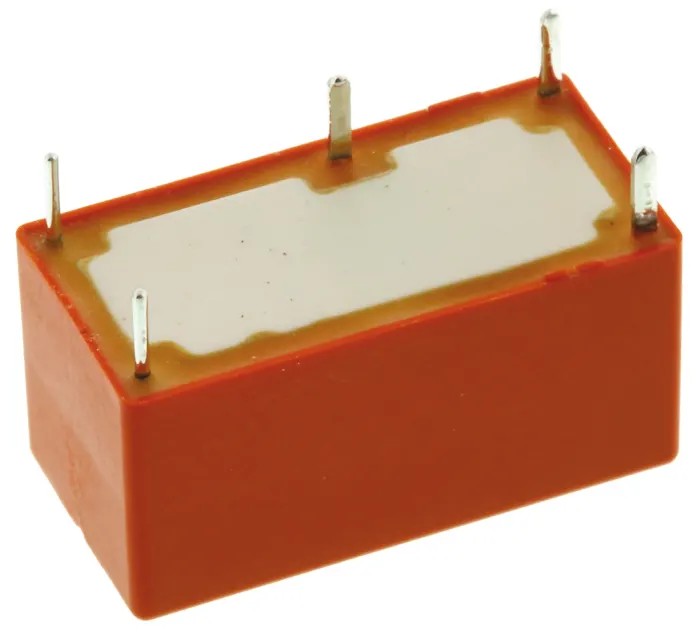

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current SPDT PE014012

TE Connectivity PE014012 PCB Power Relay is a high-performance power relay designed for robust electrical switching applications. It operates at a coil voltage of 12V DC with a coil power of 210 mW, demonstrating high coil sensitivity. Its contact configuration is SPDT, suitable for controlling circuits with versatile switching needs.

Constructed for PCB mount applications, this relay uses solder terminals ensuring reliable electrical connections. With a switching current capacity of 5A and switching AC voltage up to 400V AC, it effectively manages medium power loads in industrial electronic devices, household appliances, and control equipment.

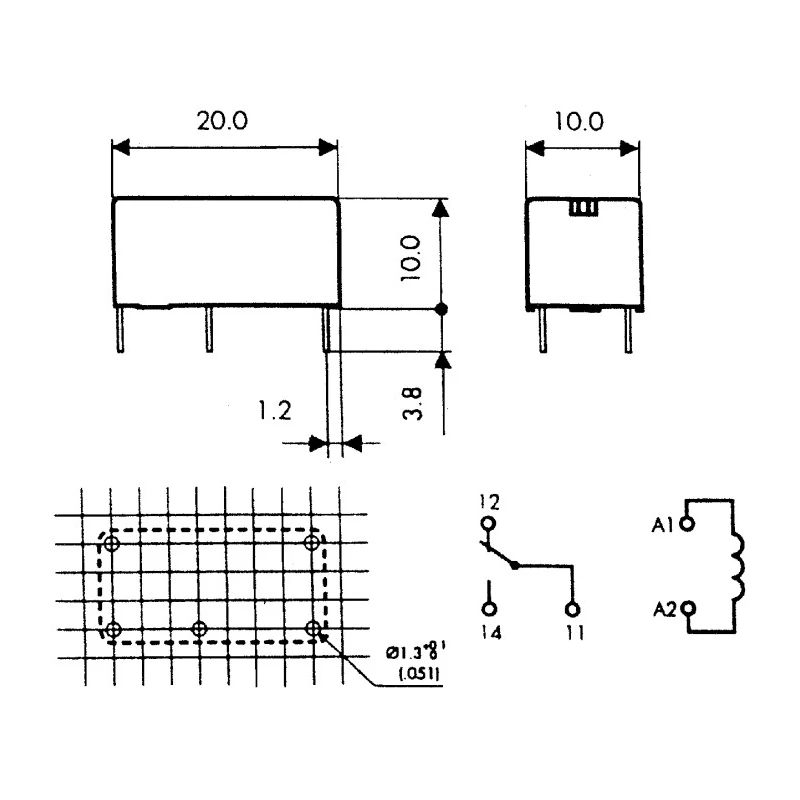

The relay has a compact form factor measuring 20 mm in length, 10 mm in width, and 10 mm in height, facilitating integration into space-constrained circuit boards. Its operating temperature range from -40°C to 85°C allows utilization in adverse environmental conditions common in industrial settings.

The contact material is silver nickel alloy, which provides excellent conductivity and resistance to wear, ensuring product durability and high performance. Its coil resistance is 685Ω, providing efficient power consumption during operation.

PE014012 meets international standards and approvals such as VDE and cULus, reflecting compliance with global safety and quality norms. These attributes make it suitable for industrial, laboratory, manufacturing, and household automation systems requiring dependable relay performance.

The relay features a coil resistance of 685Ω and coil power rating of 210 mW ensuring high coil sensitivity. Designed for PCB mounting using solder terminal type for secure integration. Supports switching AC voltage up to 400 V AC and switching power of 1.3 kVA.

Operates in wide temperature range from -40°C to 85°C for versatile environmental conditions. Compact dimensions measure 20 mm length, 10 mm width, and 10 mm height suitable for dense circuit boards. Contact material is durable silver nickel alloy enhancing conductivity and longevity.

Certified to international standards including VDE and cULus for assured quality and safety.

This Power Relay from TE Connectivity is an ideal choice for electrical engineers and designers working on automation, industrial electronics, or control systems. Its reliable switching capabilities and rugged specifications support high-performance and safe operation across applications.
