Texas Instruments Adjustable Shunt Voltage Reference ±2 % Initial Accuracy 36V TO-92 Package TL431CLPR

Free Delivery in India | Lowest Global Shipping Charges

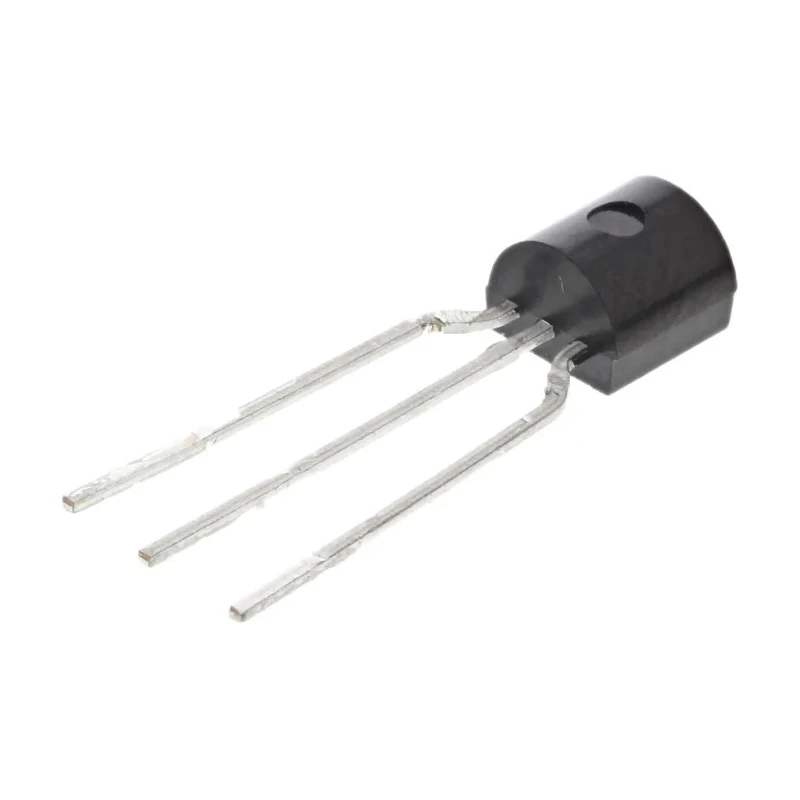

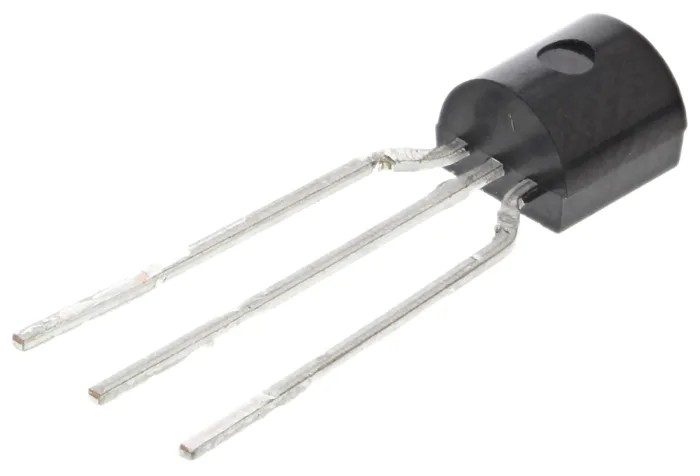

Texas Instruments Adjustable Shunt Voltage Reference ±2 % Initial Accuracy 36V TO-92 Package TL431CLPR

Name: Texas Instruments Adjustable Shunt Voltage Reference ±2 % Initial Accuracy 36V TO-92 Package TL431CLPR
Brand: Texas Instruments
SKU: 203139
Price: 0.28 USD
Availability: InStock



Category Voltage Reference Brand Texas Instruments Condition New

Specifications

Country of Origin	China
Brand	Texas Instruments
Height	3.68mm
Length	4.83mm
Model	TL431CLPR
Mount Type	Through Hole
Output type	Adjustable
Series	TL431
Temperature Coefficient	92 ppm/°C
Output Current	100mA
Topology	Shunt
Maximum Operating Temperature	70°C
Package Type	TO-92
Minimum Operating Temperature	0°C
Reference Type	Adjustable
Maximum Input Voltage	37V
Minimum Input Voltage	2.44V
Pin Count	3
Reference Voltage	36V
Initial Accuracy	±2 %

Key Features

This device provides an adjustable reference voltage of 36V for versatile applications.
It delivers a maximum output current of 100mA ensuring reliable performance in power management circuits.
The TL431CLPR features a 3-pin TO-92 package supporting easy through-hole mounting.
Operating temperature ranges from 0°C to 70°C suitable for commercial environments.
Its shunt topology design provides stable and accurate voltage reference.
The device has a temperature coefficient of 92 ppm per degree Celsius for temperature stability.
Maximum input voltage rating is 37V to ensure safety margins in operation.
With 3 pins, it supports straightforward circuit integration.

Product Description

Texas Instruments TL431CLPR Adjustable Shunt Voltage Reference is a high-precision voltage reference device designed for electronic power management applications. It employs a shunt topology and comes in a compact 3-pin TO-92 through-hole package which facilitates easy integration into printed circuit boards. The device offers an adjustable output voltage up to 36V with a tight initial accuracy of ±2 %, ideal for maintaining stable voltage references in sensitive electronic circuits.

This component supports a maximum output current of 100mA and can operate safely up to an input voltage of 37V. It is well-suited for use in commercial temperature ranges from 0°C to 70°C, making it versatile for various environmental conditions.

The TL431CLPR features a temperature coefficient of 92 ppm/°C, ensuring voltage stability over typical temperature variations. Its compact dimensions - 3.68mm height and 4.83mm length - allow its use in space-constrained applications requiring reliable voltage control.

Texas Instruments' TL431 series are commonly applied in industrial, commercial, laboratory, and power supply circuits where precise voltage regulation is critical. This device can be used in designing switching power supplies, voltage monitors, and reference circuits, delivering stable and adjustable voltage profiles with ease.

This voltage reference offers high initial accuracy with ±2 % tolerance. Adjustable output voltage up to 36V suitable for varied applications. TO-92 through-hole package provides ease of mounting and replacement. Temperature coefficient of 92 ppm/°C ensures reliable operation over temperature range.

High current output capability of 100mA supports demanding circuits. Wide input voltage range up to 37V helps in diverse circuit configurations. Compact size fits well in tight PCB layouts. Operating temperature range from 0°C to 70°C fits commercial use cases.

Ideal for power management, instrumentation, and industrial electronics.

This product is sourced from China and is supplied new. It provides a dependable solution for engineers and designers requiring precise adjustable Voltage References in their systems.

Explore EnvMart for a comprehensive selection of Texas Instruments electronic components and power management ICs designed for your engineering needs.
