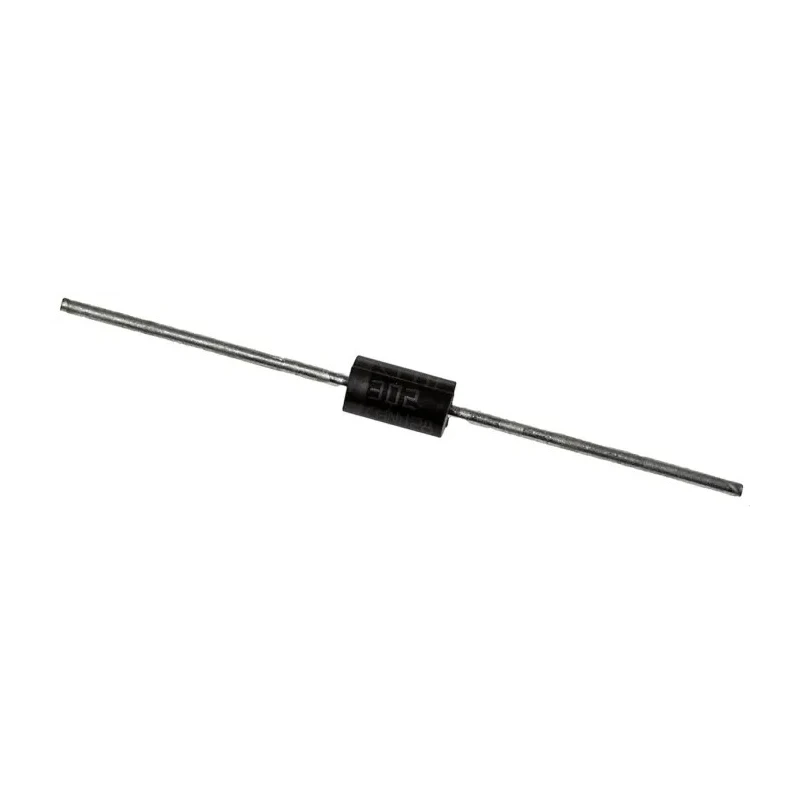

STMicroelectronics 200 V 3 A Diode Switching 2-Pin DO-201AD STTH302

STMicroelectronics STTH302 diode is a 200 V, 3 A rated switching diode supplied in a 2-pin DO-201AD through-hole package. It is designed for high-speed switching in electronic circuits where robust performance and high reliability are critical.

This diode is configured as a single rectifier with a maximum continuous forward current of 3 A, making it suitable for diverse power semiconductor applications. Its peak reverse repetitive voltage rating of 200 V enhances its suitability for rectifying and switching tasks under demanding electrical conditions.

The device features a peak reverse recovery time of just 35 nanoseconds, enabling efficient switching with minimal power loss and heat generation. Forward voltage drop remains low at 950 mV, supporting efficient circuit operation.

STTH302 supports a broad operating temperature range from -65°C to 175°C, which ensures stable functionality in various thermal environments. It also withstands peak non-repetitive forward surge current up to 130 A, enhancing its durability in transient conditions.

Physically, the diode measures approximately 9.5 mm in length and 5.3 mm in diameter, fitting standard DO-201AD sockets for easy integration into printed circuit boards (PCB). The product adheres to RoHS environmental standards, underscoring its compliance with modern ecological requirements.

This diode is ideal for industrial electronics, power supply rectification, and switching power supply applications. Its reliability and performance meet the demands of sectors including electronics manufacturing, automotive electronics, and general electrical equipment.

Features a maximum continuous forward current of 3 A. Operates at a peak reverse repetitive voltage of 200 V. Designed for switching applications with a peak reverse recovery time of 35 ns. Includes a single diode configuration with 2-pin DO-201AD package.

Supports operating temperature range from -65°C to 175°C. Maximum forward voltage drop of 950 mV for efficient conduction. Peak non-repetitive forward surge current capability of 130 A. Compact dimensions: approximately 9.5 mm length and 5.3 mm diameter.

Compliance with RoHS standards ensures environmental safety. Robust design for reliable performance in industrial and electronic power applications. Explore additional semiconductor and diode products in the Electronics & Electricals category on EnvMart for comprehensive power management solutions.
