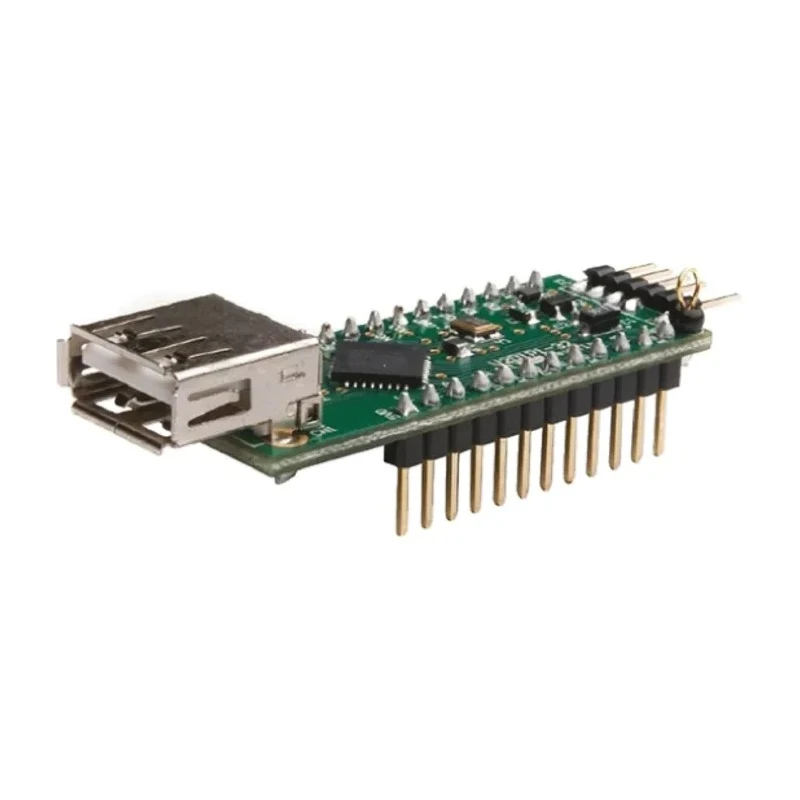

FTDI Chip VNC2 Vinculum Module VNC2-32Q Development Kit Embedded Dual USB Host Controller V2DIP1-32

FTDI Chip V2DIP1-32 VNC2 Vinculum Module Development Kit is an advanced embedded dual USB host controller designed for the VNC2-32Q IC. This development kit enables USB Host interfacing for multiple USB device classes such as bulk only mass storage (BOMS), printers, and human interface devices (HID).

The module transparently manages the FAT file system for USB flash drives, facilitating seamless communication with storage devices. It connects to low-cost microcontrollers through UART, SPI, or parallel FIFO interfaces, offering design flexibility.

Powered by a single +5V supply via DIL connectors, USB VBUS slave interface, or debugger module, the kit also provides an auxiliary +3.3V at 200mA output to support external logic components. Debugger interfaces and firmware upgrades are supported through UART or a dedicated debugger header, enabling efficient development and customization.

The VNC2 device is packaged in compact 32-lead LQFP and QFN formats, suitable for embedded applications requiring USB Host functionality without extensive hardware resources. This development kit is RoHS certified and manufactured in China, ensuring compliance with environmental standards.

Supports multiple USB device classes including mass storage, printer, and HID. Transparent FAT file system handling for USB flash drives. Flexible communication interfaces: UART, SPI, and parallel FIFO. Single +5V power input with auxiliary +3.3V for external logic.

Firmware upgradeable via UART or debugger interface. Compact 32-lead LQFP and QFN package options. RoHS compliant and manufactured in China.

This Development Kit suits industrial, embedded system, and educational applications requiring versatile USB Host controller capabilities. Explore the Electronics & Electricals category for related development tools and modules at EnvMart.
